Toyota CELICA — MIRROR

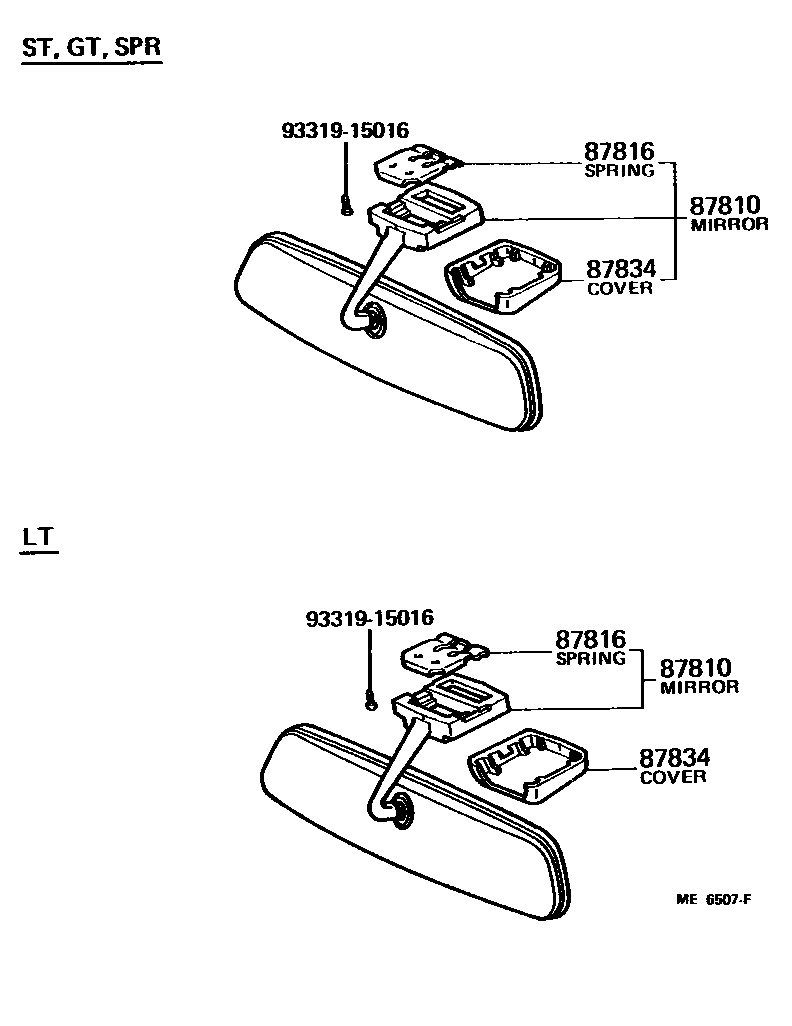

87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,NON GLARE,BLACK
DARK WINE,NON GLARE,RED/MAROON
BLUE,NON GLARE,BLUE
LIGHT BROWN,NON GLARE,BROWN
BLACK,NON GLARE,BLACK
DARK WINE,NON GLARE,RED/MAROON
BLUE,NON GLARE,BLUE
LIGHT BROWN,NON GLARE,BROWN
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLUE,IKI,BLUE
GRAY,IKI,GRAY
LIGHT BROWN,IKI,BEIGE
BLUE,MURAKAMI,BLUE
GRAY,MURAKAMI,GRAY
LIGHT BROWN,MURAKAMI,BEIGE
BLUE,MURAKAMI,BLUE
GRAY,MURAKAMI,GRAY
LIGHT BROWN,MURAKAMI,BEIGE
BLUE,BLUE
IVORY,IVORY
GRAY,GRAY
LIGHT BROWN,BEIGE
GRAY,IKI,GRAY
BLUE,IKI,BLUE
LIGHT BROWN,IKI,BEIGE
GRAY,IKI,GRAY
BLUE,IKI,BLUE
LIGHT BROWN,IKI,BEIGE
9331915016
main93319-15016
4 parts on this diagram · 2 diagrams in section
