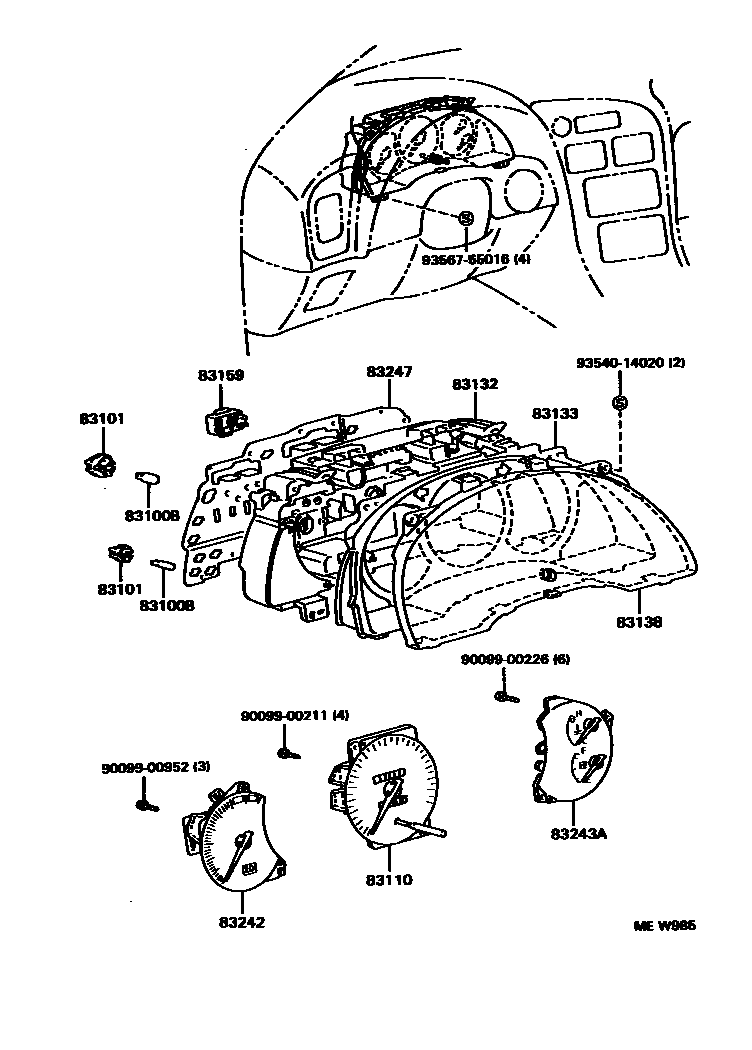

Toyota CELICA — METER

0001 1 0002 1 0003 1BULB SOCKET

83100BBULB, COMBINATION METER, NO.1

main83109-24020×3iAT200,ST204199309

12V3.4W W(GREEN CAP)

main83109-30070×2iAT200,ST204199309

14V 2.0W,W/O SOCKET

main83119-32010iAT200,ST204199309

14V 3.0W

main90981-11018×11iAT200;ST204..MTM..GT;ST204..ATM..CND;ST204..(CP,CVT)..ATM..GT199705

12V 1.2W W/O SOCKET

main99132-12034×3iAT200,ST204199309-199508

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3iAT200,ST204199309

TYPE A:REFER TO ILLUSTRATION

main83101-14040×13iAT200;ST204..GT199309

TYPE B:REFER TO ILLUSTRATION

main83101-24010iAT200,ST204199309

TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83110-2D520iST204..LB..ATM..USA199705

TAIWAN SPEC

main83110-2D560iAT200,ST204..USA199309-199705

main83110-2D570iAT200,ST204..CND199309

83132CASE, COMBINATION METER

main83132-2D070iAT200;ST204..MTM..USA;ST204..LB..ATM..ST;ST204..(CP,CVT)..ATM199705

W(ABS OR CRUISE CONTROL)

main83132-2D090iAT200,ST204..MTM..USA199309

main83132-2D110iST204..CND;ST204..LB..ATM..USA199705

TAIWAN SPEC

83133PLATE, COMBINATION METER, NO.1

main83133-20690iAT200,ST204199309

83138GLASS, SPEEDOMETER

main83138-2B370iAT200,ST204199309

83159SWITCH, METER, NO.1

main83159-22170iAT200,ST204199309

83242TACHOMETER ASSY, ENGINE

main83242-20650iST204..CND;ST204..LB..ATM..USA199705

TAIWAN SPEC

main83242-20830iST204..MTM..USA;ST204..LB..ATM..ST;ST204..(CP,CVT)..ATM199705

main83881-20230iAT200..USA199508-199712

main83881-20250iAT200..CND199508-199606

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20650iST204..CND;ST204..LB..ATM..USA199705

TAIWAN SPEC

main83243-20710iAT200,ST204..USA199309-199705

83247PLATE, METER CIRCUIT

main83247-2D050iAT200,ST204199309

9009900211

main90099-00211

9009900226

main90099-00226

9009900952

main90099-00952

9354014020

main93540-14020

9356755016

main93567-55016

15 parts on this diagram · 3 diagrams in section
