Toyota CELICA — METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×12iMA61,RA6#198108-198512

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×10iMA61,RA6#198108-198512

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020×2iMA61198108-198512

12V 3.4W,LONG

main83101-14030×10iMA61,RA6#198108-198512

12V 3.4W

main83101-14040×12iMA61,RA6#198108-198512

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-14830iRA64..ST..CBR198108-198304

main83247-14831iRA64..CBR198304-198308

main83247-1B250iMA61198108-198304

W/DIGITAL SPEEDOMETER

main83247-1B251iMA61198304-198308

W/DIGITAL SPEEDOMETER

main83247-1B330iMA61,RA64..GT,SPR198108-198208

main83247-1B410iMA61,RA6#..EFI198208-198304

main83247-1B411iMA61,RA6#..EFI198304-198308

main83247-1B630iRA6#..(CP,LB)..5F..(GT,GTS)198408-198507

W/DIGITAL SPEEDOMETER

main83247-1B670iRA6#..(CP,LB)..4FC..(GT,GTS)198408-198507

W/DIGITAL SPEEDOMETER

main83247-1D150iRA64..5F..ST198308-198507

main83247-1D170iMA61,RA6#..5F..(GT,GTS,SPR)198308-198512

main83247-1D190iMA61,RA6#..4FC..(GT,GTS,SPR)198308-198512

main83247-1D310iRA64..4FC..ST198308-198507

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1B270iMA61198108-198304

W/DIGITAL SPEEDOMETER

main83247-1B271iMA61198304-198308

W/DIGITAL SPEEDOMETER

main83247-1D270iMA61..4FC198308-198512

83109BULB, COMBINATION METER, NO.2

main83109-24010iRA6#..(CP,LB)..(GT,GTS)198408-198507

12V 1.4W,GREEN CAP,12V 1.4W,W/GREEN CAP

main83109-24020×5iMA61,RA6#198308-198512

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

83110SPEEDOMETER ASSY

main83110-14430iMA61,RA6#..USA198108-198304

main83110-14431iMA61,RA6#..USA198304-198512

main83110-14440iMA61,RA64..CND198108-198208

main83110-14441iMA61,RA6#..CND198308-198512

main83110-14620iMA61..USA198211-198308

W/DIGITAL SPEEDOMETER

main83110-14730iMA61,RA6#..CND198208-198308

sub83110-14850

main83110-14840iRA6#..(CP,LB)..(GT,GTS)198408-198507

W/DIGITAL SPEEDOMETER

main83110-14860iMA61..CND198211-198308

W/DIGITAL SPEEDOMETER

sub83110-14861

83128KNOB, TRIP COUNTER

main83128-10260iMA61198108-198512

W/DIGITAL SPEEDOMETER

main83128-14510iMA61,RA6#198108-198512

83131DIAL, METER, NO.1

main83131-1B090iRA64..ST198108-198208

main83131-1B110iRA6#..EFI..USA198208-198210

main83131-1B130iMA61..USA198108-198210

main83131-1B450iMA61..USA198108-198208

W/DIGITAL SPEEDOMETER

main83131-1B470iMA61..CND198108-198208

W/DIGITAL SPEEDOMETER

main83131-1B530iRA64..CND198108-198208

main83131-1B610iMA61..USA198208-198308

W/DIGITAL SPEEDOMETER

main83131-1B630iMA61..CND198208-198308

W/DIGITAL SPEEDOMETER

main83131-1B710iMA61..CND198108-198208

main83131-1B730iRA6#..EFI..USA198210-198304

main83131-1B731iRA6#..EFI..USA198304-198308

main83131-1B750iMA61..USA198210-198304

main83131-1B751iMA61..USA198304-198308

main83131-1B770iRA6#..CND198208-198308

main83131-1B790iMA61..CND198208-198308

main83131-1B810iRA64..CBR198208-198304

main83131-1B811iRA64..CBR198304-198308

main83131-1D080iRA64..4FC..ST198308-198507

main83131-1D100iRA64..5F..ST198308-198507

main83131-1D170iRA6#..5F..(GT,GTS)..USA198308-198507

main83131-1D190iRA6#..4FC..(GT,GTS)..USA198308-198507

main83131-1D210iMA61..5F..USA198308-198512

main83131-1D230iMA61..4FC..USA198308-198512

main83131-1D250iRA6#..5F..CND198308-198507

main83131-1D270iRA64..4FC..CND198308-198507

main83131-1D290iMA61..5F..CND198308-198512

main83131-1D310iMA61..4FC..CND198308-198512

main83131-1D440iMA61..4FC..CND198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D460iMA61..5F..CND198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D480iMA61..4FC..USA198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D500iMA61..5F..USA198308-198512

W/DIGITAL SPEEDOMETER

main83131-1E030iRA6#..(CP,LB)..(GT,GTS)..USA198408-198507

W/DIGITAL SPEEDOMETER

main83131-1E050iRA6#..CND198408-198507

W/DIGITAL SPEEDOMETER

83132CASE, COMBINATION METER

main83132-14810iRA64..ST..CBR198108-198304

sub83132-14H97

main83132-14811iRA64..CBR198304-198308

main83132-14830iMA61,RA64..GT,SPR198108-198208

main83132-1B110iMA61198108-198304

W/DIGITAL SPEEDOMETER

sub83132-1BH91

main83132-1B111iMA61198304-198308

W/DIGITAL SPEEDOMETER

main83132-1B270iMA61,RA6#..EFI198208-198304

sub83132-1BH94

main83132-1B271iMA61,RA6#..EFI198304-198308

main83132-1B530iRA6#..(CP,LB)..5F..(GT,GTS)198408-198507

W/DIGITAL SPEEDOMETER

main83132-1B550iMA61..4FC198308-198512

W/DIGITAL SPEEDOMETER

main83132-1D270iMA61,RA6#..5F..(GT,GTS,SPR)198308-198512

main83132-1D290iMA61,RA6#..4FC..(GT,GTS,SPR)198308-198512

main83132-1D510iRA64..5F..ST198308-198507

main83132-1D530iRA64..4FC..ST198308-198507

83133PLATE, COMBINATION METER, NO.1

main83133-14590iRA64..ST..CBR198108-198304

main83133-14591iRA64..ST198308-198507

main83133-14610iMA61,RA64..GT,SPR198108-198208

main83133-14611iMA61,RA6#..GT,GTS,SPR198308-198512

main83133-14850iMA61..USA198108-198512

W/DIGITAL SPEEDOMETER

main83133-14930iMA61..CND198108-198304

W/DIGITAL SPEEDOMETER

main83133-1B190iMA61..CND198304-198512

W/DIGITAL SPEEDOMETER

main83133-1B270iRA6#..(CP,LB)..(GT,GTS)..USA198408-198507

W/DIGITAL SPEEDOMETER

83251METER, VOLTAGE

main83251-14510iMA61,RA64..GT,SPR198108-198208

main83251-14570iMA61,RA6#..GT,GTS,SPR198308-198512

83270TACHOMETER ASSY, ENGINE

main83242-14550iRA6#198108-198507

main83242-14570iMA61198108-198512

main83270-14150iMA61198108-198208

W/DIGITAL SPEEDOMETER

main83270-14230iMA61198208-198308

W/DIGITAL SPEEDOMETER

main83270-14360iMA61..5F198308-198512

W/DIGITAL SPEEDMETER

main83270-14370iMA61..4FC198308-198512

W/DIGITAL SPEEDMETER

main83270-14440iRA6#..(CP,LB)..(GT,GTS)198408-198507

W/DIGITAL SPEEDOMETER

83310GAGE ASSY, FUEL RECEIVER

main83243-14510iMA61,RA6#198108-198512

main83310-14090iMA61198108-198208

W/DIGITAL SPEEDOMETER

main83310-14091iMA61198208-198308

W/DIGITAL SPEEDOMETER

main83310-14110iMA61198308-198408

W/DIGITAL SPEEDOMETER

main83310-14111iMA61,RA6#..(CP,LB)..(GT,GTS,SPR)198408-198512

W/DIGITAL SPEEDOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-14510iMA61,RA6#198208-198308

main83244-1B050iMA61,RA6#198308-198512

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14510iMA61,RA64..GT,SPR198108-198208

83909KNOB, CLOCK

main83909-14012iRA64..ST198308-198507

main83909-22180iMA61,RA6#..GT,GTS,SPR198308-198512

83910CLOCK ASSY

main83910-14290iRA64..ST198308-198507

main83910-14300iMA61,RA64..GT,SPR198108-198208

main83910-14330iRA6#..(CP,LB)..(GT,GTS)198408-198507

DIGITAL METER

83919SCREW, CLOCK

main83919-12230iMA61,RA6#..GT,GTS,SPR198308-198512

main83919-14012iRA64..ST..CBR198108-198308

9356755016

main93567-55016

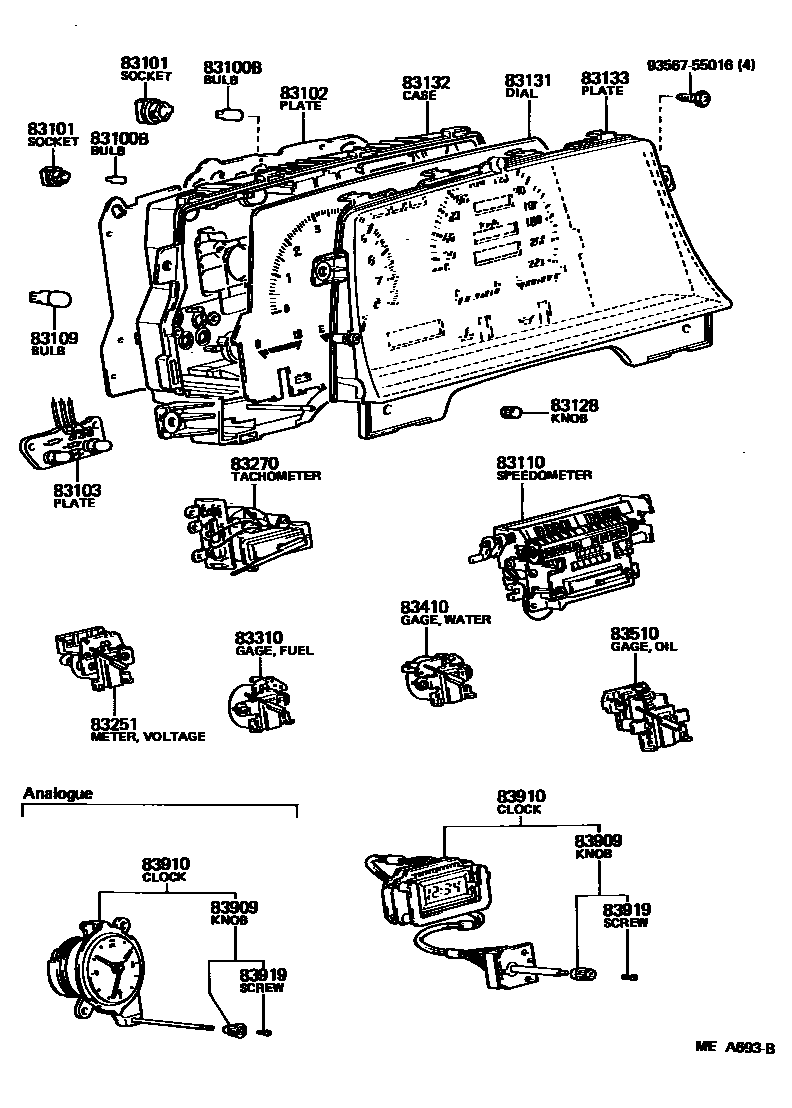

19 parts on this diagram · 3 diagrams in section
