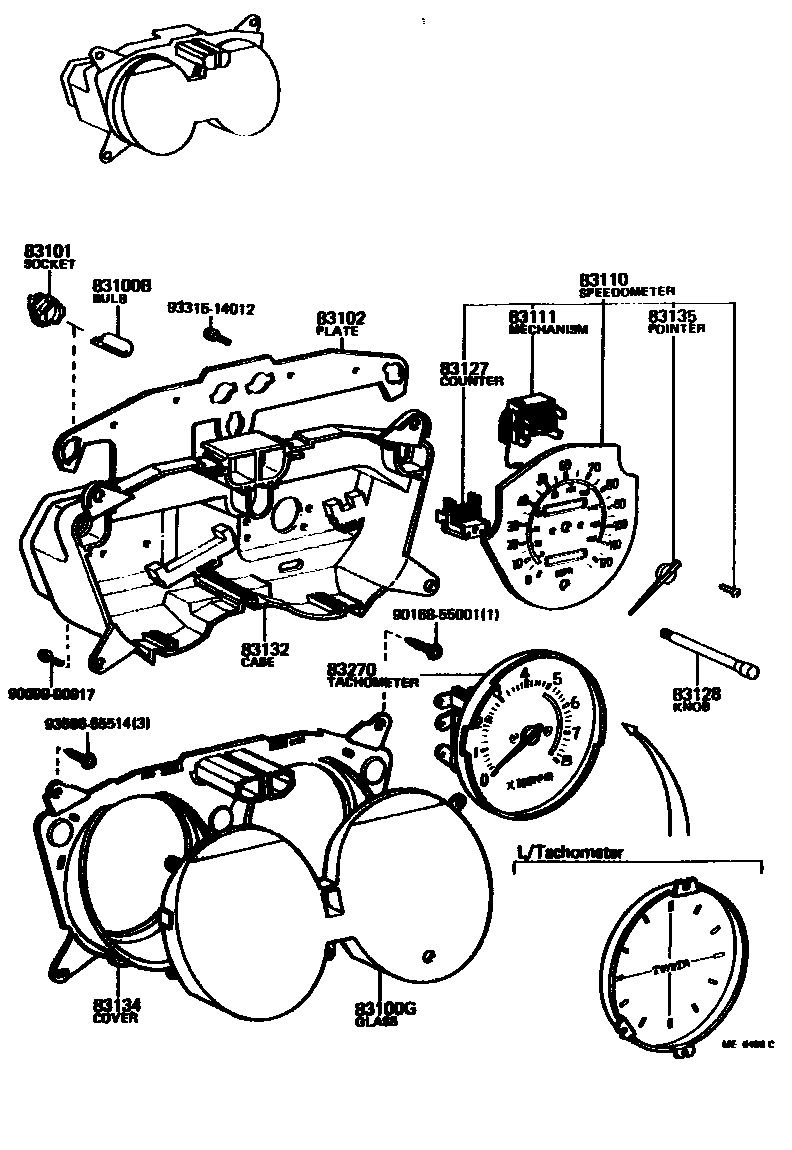

Toyota CELICA — METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main99132-12034×5iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-14850iRA42..3FC..LT197708-197807

main83138-14851iMA46,RA42..(3FC,5F)..(LT,SPR)197807-198004

main83138-14852iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198004-198107

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×7iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

12V 3.4W

main83101-14040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-14410iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main83247-14850iRA42..3FC..LT197708-197712

main83247-14851iMA46,RA42..(3FC,5F)..(LT,SPR)197712-198008

83110SPEEDOMETER ASSY

main83110-14200iRA42..3FC..LT197708-197808

USA SPEC

main83110-14201iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

USA SPEC

main83110-14202iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

USA SPEC

main83110-14210iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198008

CANADA SPEC

main83110-14220iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

USA SPEC

main83110-14221iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

USA SPEC

main83110-14230iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

W/CRUISE CONTROL,USA SPEC

main83110-14231iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

W/CRUISE CONTROL,USA SPEC

main83110-14240iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

CANADA SPEC

main83110-14241iRA43..CP..5F..GT198008-198107

CANADA SPEC

main83110-14250iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

W/CRUISE CONTROL,CANADA SPEC

main83110-14251iRA43..CP..5F..GT198008-198107

W/CRUISE CONTROL,CANADA SPEC

main83110-14320iRA43..CP..5F..GT198008-198107

CANADA SPEC

main83241-14550iRA42..3FC..LT197708-197808

CANADA SPEC

83111MECHANISM, SPEEDOMETER

main83111-14850iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

USA SPEC

main83111-1B040iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

CANADA SPEC

83127COUNTER, TRIP

main83127-12280iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

CANADA SPEC

main83127-12860iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

USA SPEC

83128KNOB, TRIP COUNTER

main83128-14820iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

83132CASE, COMBINATION METER

main83132-14050iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

main83132-14110iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

83134COVER, COMBINATION METER, NO.1

main83133-14020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198004

83135POINTER, SPEEDOMETER

main83135-14820iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

83270TACHOMETER ASSY, ENGINE

main83242-14280iRA42..3FC..LT197708-197804

main83242-14281iRA43..CP..5F..GT198008-198107

main83242-14340iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main83242-14360iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main83242-14400iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

9009900917

main90099-00917

9016855001

main90168-55001

9331514012

main93315-14012

9356655514

main93566-55514

16 parts on this diagram · 3 diagrams in section
