Toyota CELICA — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2G120-B0i199908-200103

DARK GRAY,TRIM20,21,22,23; DARK GRAY,TRIM23

main58510-2G121-B0i200103-200205

DARK GRAY,TRIM20,21,22,23; DARK GRAY,TRIM23

main58510-2G122-B0i200205-200208

DARK GRAY,TRIM2#; DARK GRAY,TRIM20,21,22,23

main58510-2G123-B0i200308-200507

DARK GRAY,TRIM2#; DARK GRAY,TRIM20,21,22,23

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-C0i199908-200208

BLACK,TRIM2#; BLACK,TRIM20,21,22,23

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-08124×4i200301-200507

main90467-09118×4i199908-200208

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-06077×2i199908-200208

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20040i199908-200208

main58561-20041i200208-200308

main58561-20042i200308-200507

58562CSILENCER, FRONT FLOOR, NO.2

main58562-20010i200008-200208

9046706077

main90467-06077

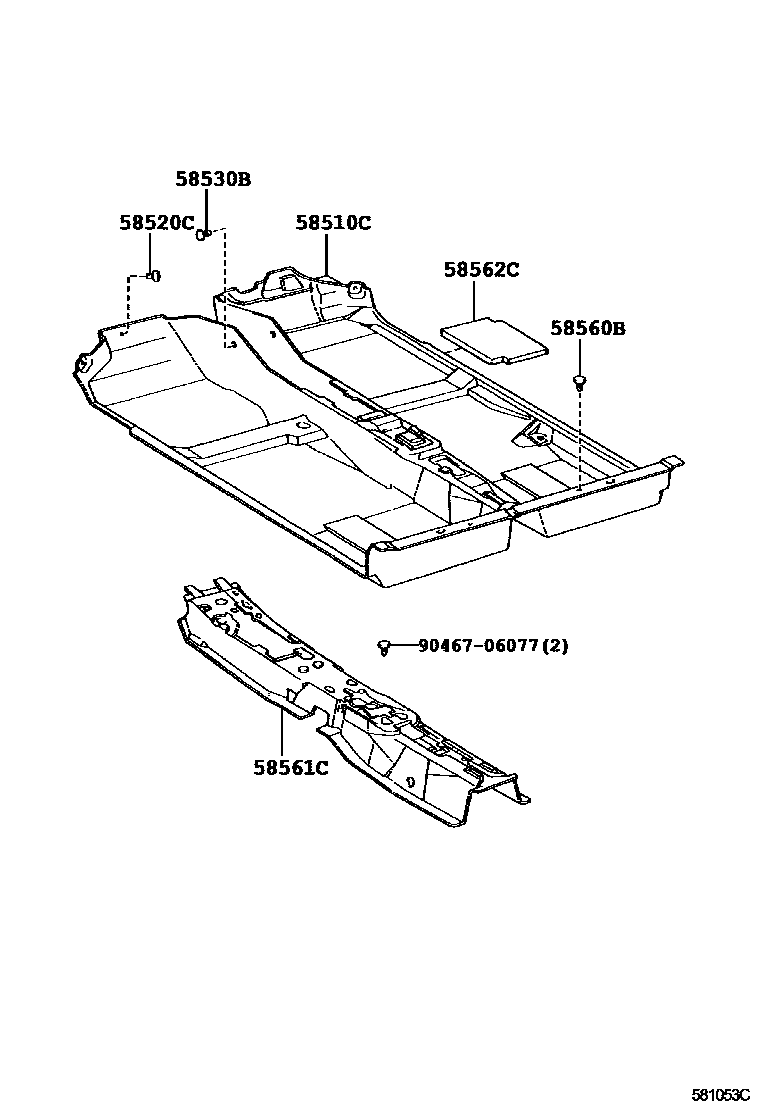

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELICA

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CLIP(FOR FLOOR CARPET, REAR), SILENCER, FRONT FLOOR, NO.1.
