Toyota CELICA — MAT & CARPET

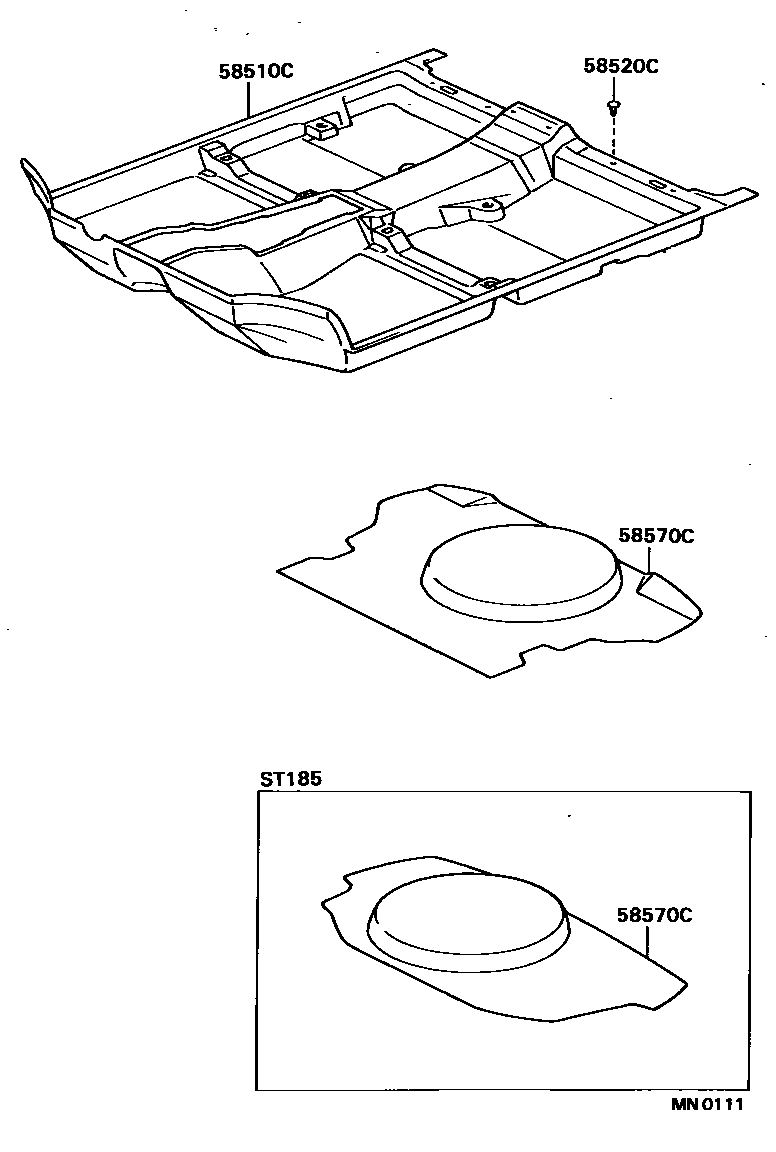

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-2B860-02i198909-199004
RED,TRIM3#
main58510-2B860-03i198909-199004
SHADOW GRAY,TRIM1#
main58510-2B860-04i198909-199004
DARK BLUE,TRIM8#
main58510-2B861-02×2i199004-199008
RED,TRIM3#
main58510-2B861-03i199108-199309
SHADOW GRAY,TRIM1#
main58510-2B861-04×2i199004-199108
DARK BLUE,TRIM8#
main58510-2B861-06×2i199008-199108
CHOCOLATE BROWN,TRIM4#
main58510-2D100-02i198910-199004
RED,TRIM3#
main58510-2D100-03i198910-199004
SHADOW GRAY,TRIM1#
main58510-2D100-04i198910-199004
DARK BLUE,TRIM8#
main58510-2D101-02×2i199004-199008
RED,TRIM3#
main58510-2D101-03i199108-199309
SHADOW GRAY,TRIM1#
main58510-2D101-04×2i199004-199108
DARK BLUE,TRIM8#
main58510-2D101-06×2i199008-199108
CHOCOLATE BROWN,TRIM4#
main58510-2D361-03i199006-199309
SHADOW GRAY,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-33×6i199008-199108
GRAY,TRIM1#,4#,8#
main90467-06016-58×6i198911-199008
GRAY,TRIM1#,3#,8#
58570CCARPET ASSY, REAR FLOOR
main58570-20130-03i199108-199309
SHADOW GRAY,TRIM1#
main58570-20130-04i199108-199309
DARK BLUE,TRIM8#
main58570-20140-02i198910-199008
W(T135/70 D16),RED,TRIM3#
main58570-20140-03i199108-199309
W(T135/70 D16),SHADOW GRAY,TRIM1#
main58570-20140-04i198910-199008
W(T135/70 D16),DARK BLUE,TRIM8#
main58570-20160-02i198909-199008
RED,TRIM3#
main58570-20160-03i199108-199309
SHADOW GRAY,TRIM1#; W(15 INCH SPARE TIRE),SHADOW GRAY,TRIM1#
main58570-20160-04i199108-199309
DARK BLUE,TRIM8#; W(15 INCH SPARE TIRE),DARK BLUE,TRIM8#
main58570-20160-16i199008-199108
CHOCOLATE BROWN,TRIM4#
main58570-20170-02i198910-199008
RED,TRIM3#
main58570-20170-03i198910-199309
SHADOW GRAY,TRIM1#
main58570-20170-04i198910-199108
DARK BLUE,TRIM8#
main58570-20170-16i199008-199108
CHOCOLATE BROWN,TRIM4#

3 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELICA

This section contains 3 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CARPET ASSY, REAR FLOOR.
