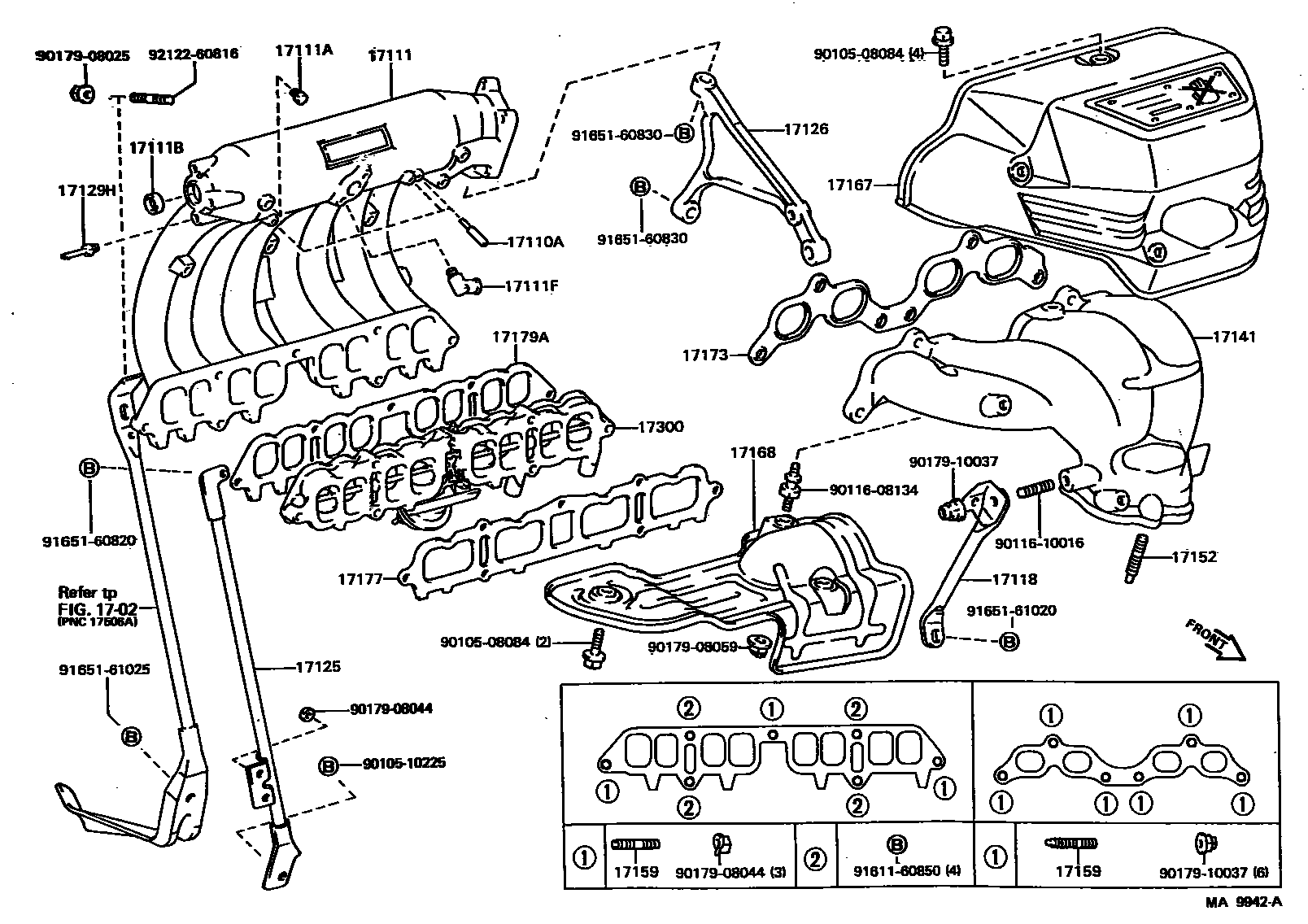

Toyota CELICA — MANIFOLD
1702EXHAUST PIPE
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
OD=30
OD=35
17111FUNION(FOR VACUUM HOSE TO CARBURETOR)
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129HUNION, NO.4
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE *53
EXHAUST SIDE
INTAKE SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17179AGASKET, INTAKE MANIFOLD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
9010508084
main90105-08084
9010510225
main90105-10225
9011608134
main90116-08134
9011610016
main90116-10016
9017908025
main90179-08025
9017908044
main90179-08044
9017908059
main90179-08059
9017910037
main90179-10037
9161160850
main91611-60850
9165160820
main91651-60820
9165160830
main91651-60830
9165161020
main91651-61020
9165161025
main91651-61025
9212260816
main92122-60816
33 parts on this diagram · 4 diagrams in section
MANIFOLD for Toyota CELICA
This section contains 90 genuine Toyota parts for the MANIFOLD system of the Toyota CELICA. Key components include: GASKET KIT, TURBOCHARGER, PIPE, OIL FEED, GASKET, TURBO OIL INLET, HOSE, TURBO OIL OUTLET, CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE).
