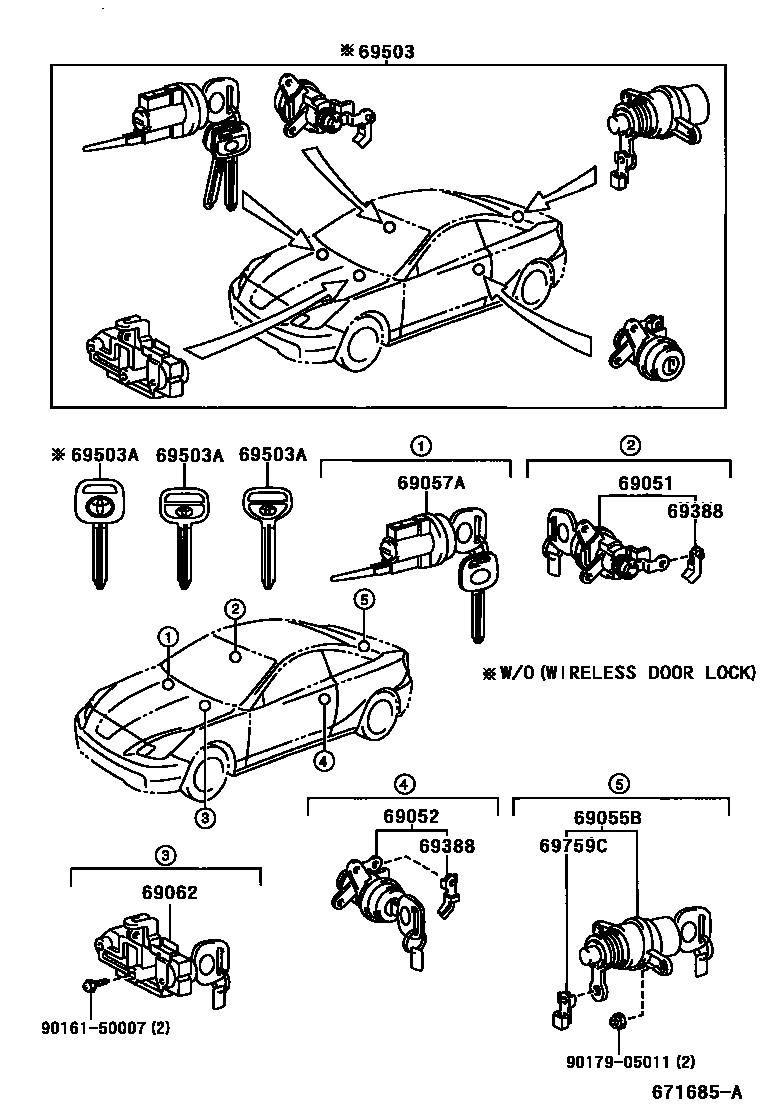

Toyota CELICA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20450i200208-200507

main69051-20460i199908-200208

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20430i200208-200507

main69052-20440i199908-200208

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-20750i199908-200208

main69055-20770i200208-200507

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20480i200208-200507

main69057-20490i199908-200208

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20330i199908-200208

main69056-48030i200208-200507

69388SNAP, ROD(FOR DOOR LOCK)

main69759-32090i200208-200507

main69759-32100i200208-200507

69503CYLINDER SET, LOCK

main69005-2B650i199908-200208

main69005-2B730i200208-200507

69503AKEY, BLANK

main90999-00186i200208-200507

MASTER KEY

main90999-00188i199908-200208

SUB KEY

main90999-00199i199908-200208

MASTER KEY,W(*68)

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090i199908-200208

9016150007

main90161-50007

9017905011

main90179-05011

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota CELICA

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELICA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
