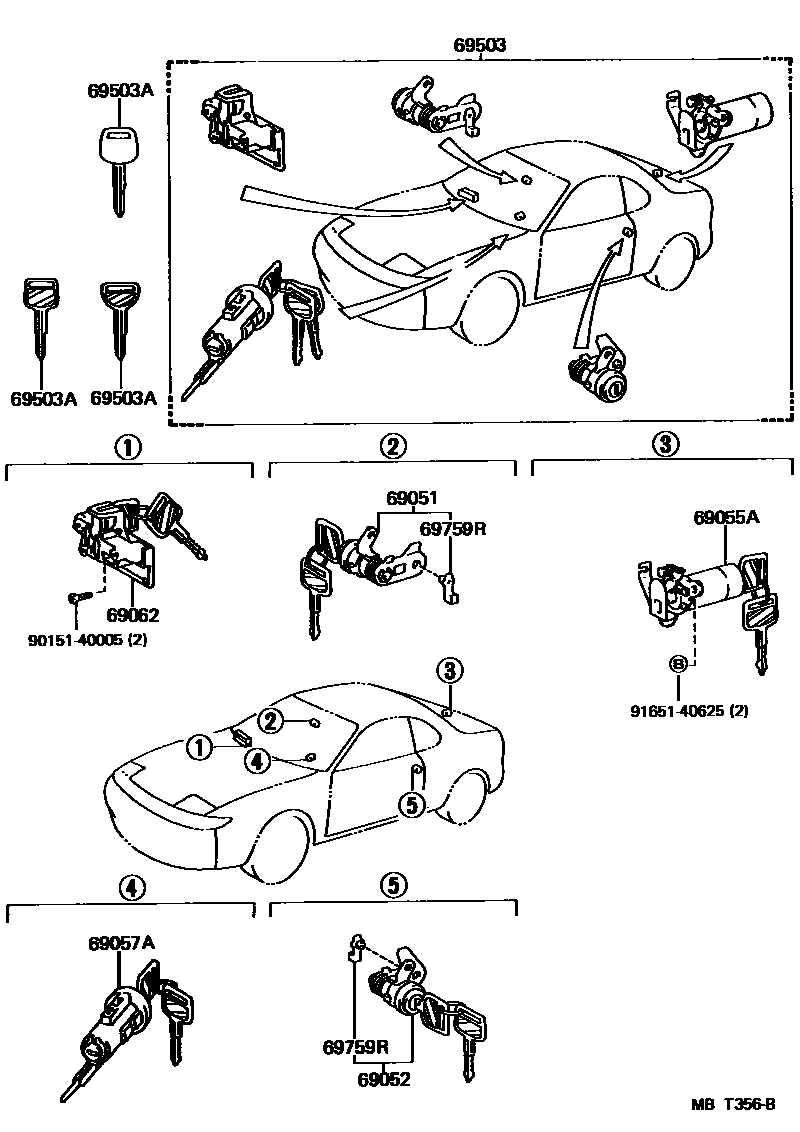

Toyota CELICA — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY
MASTER KEY,W(*68)
SUB KEY
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
69759RSNAP, FRONT DOOR LOCK CYLINDER
ORANGE
PINK
BEIGE
YELLOWISH GREEN
9015140005
main90151-40005
9165140625
main91651-40625
10 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota CELICA
This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELICA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
