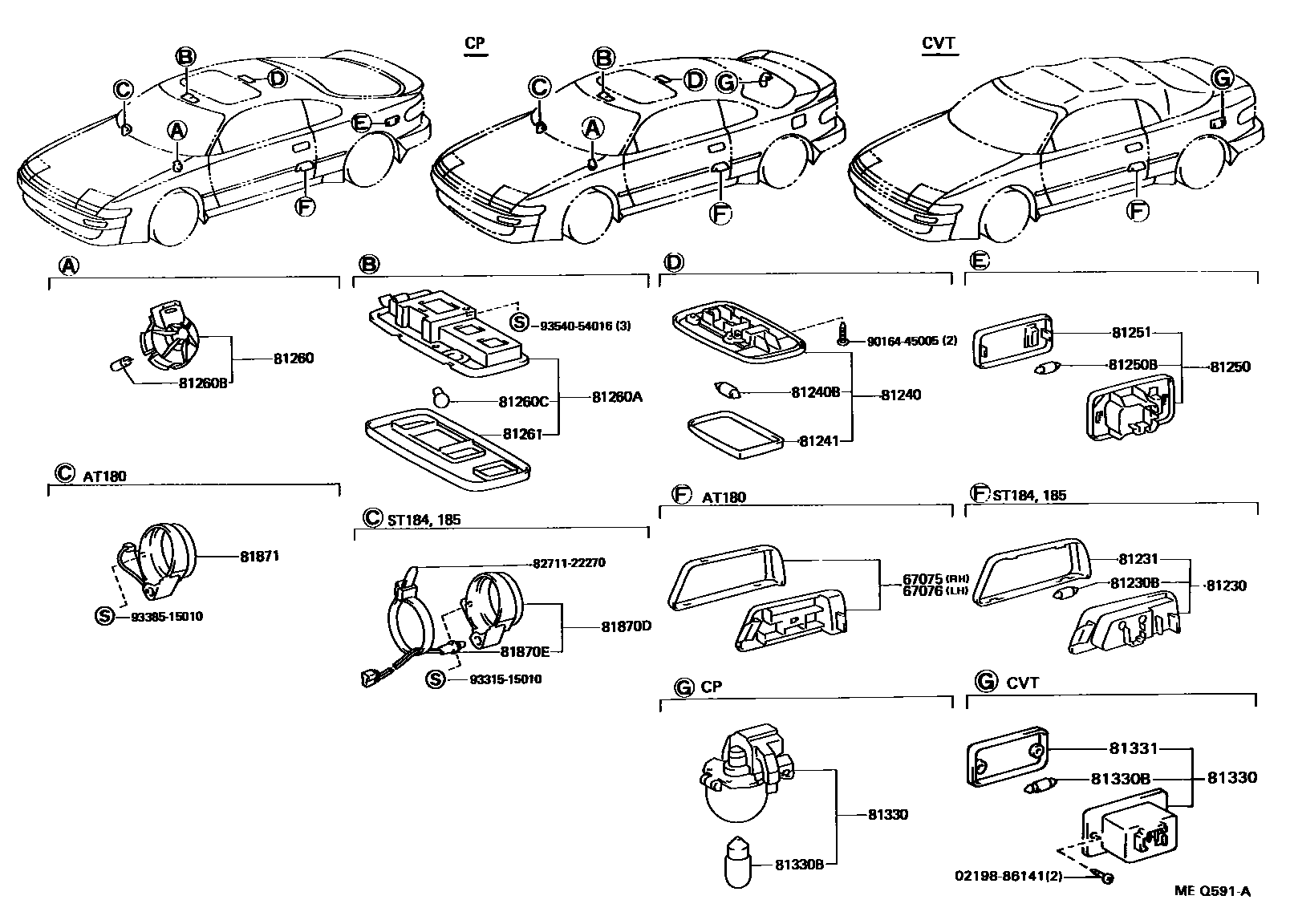

Toyota CELICA — INTERIOR LAMP
67075REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH
67076REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH
81230BBULB(FOR COURTESY LAMP)
12V 3W
81240LAMP ASSY, ROOM, NO.1
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
CHOCOLATE BROWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
RED,TRIM3#
CHOCOLATE BROWN,TRIM4#
81250BBULB, ROOM LAMP, NO.2
12V 5W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
CHOCOLATE BROWN,TRIM4#
SHADOW GRAY,TRIM1#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
CHOCOLATE BROWN,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
12V 5W
81331LENS, LUGGAGE COMPARTMENT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET
81871LENS, KEY ILLUMINATION
0219886141SCREW
main02198-86141
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
9016445005
main90164-45005
9331515010
main93315-15010
9338515010
main93385-15010
9354054016
main93540-54016
28 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota CELICA
This section contains 28 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CELICA. Key components include: REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH, REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP.
