Toyota CELICA — IGNITION COIL & SPARK PLUG / GLOW PLUG

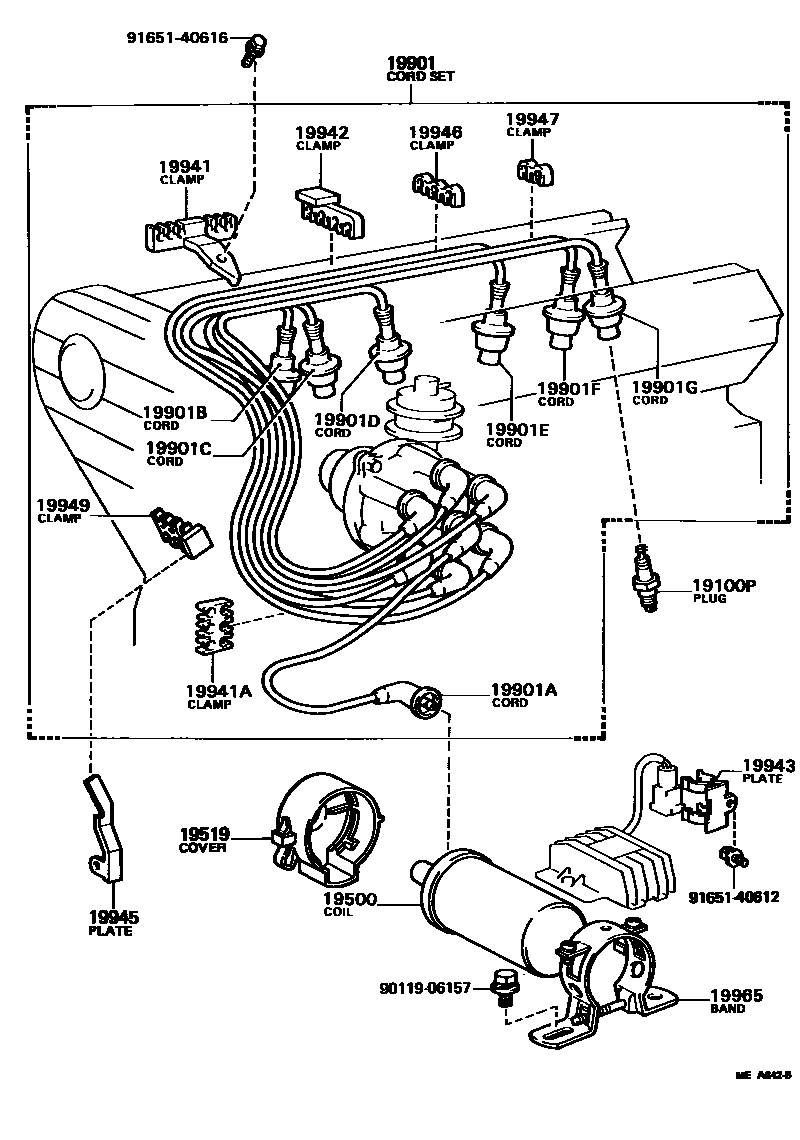

Parts diagram

19100PPLUG, SPARK

main90919-01064×6i198108-198208

W16EXR-U,W16EXR-U

main90919-01115×6i198208-198512

P16R,P16R

19500COIL ASSY, IGNITION

main90919-02106i198108-198208

main90919-02113i198408-198507

main90919-02117i198208-198408

main90919-02154i198308-198512

19519COVER, IGNITION COIL

main19519-28010i198208-198308

main19519-28020i198208-198507

COLD SPEC

main19519-43010i198308-198512

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21297i198108-198208

main90919-21299i198108-198208

main90919-21312i198208-198507

main90919-21317i198208-198512

main90919-21320i198208-198308

main90999-99093i198108-198208

19901ACORD, COIL RESISTIVE

main90919-13167i198108-198208

main90919-13182i198108-198208

main90919-13184i198108-198208

main90919-13198i198208-198308

main90919-13206i198208-198507

main90919-13210i198208-198408

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12318i198108-198208

main90919-12401i198108-198408

main90919-12457i198208-198507

main90919-12554i198408-198512

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12319i198108-198208

main90919-12402i198108-198408

main90919-12458i198208-198507

main90919-12555i198408-198512

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12320i198108-198208

main90919-12403i198108-198408

main90919-12459i198208-198507

main90919-12556i198408-198512

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12321i198108-198208

main90919-12404i198108-198408

main90919-12460i198208-198507

main90919-12557i198408-198512

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12405i198108-198408

main90919-12558i198408-198512

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12406i198108-198408

main90919-12559i198408-198512

19941CLAMP, RESISTIVE CORD, NO.1

main19941-43010i198108-198512

main90464-00214i198208-198507

main90464-00223i198108-198208

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00285i198108-198408

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00061i198208-198507

main90464-00224i198108-198208

main90464-00286i198108-198512

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-38011×2i198108-198507

main19943-43010i198108-198208

19945PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.3

main19945-43010i198108-198512

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00144i198208-198210

RR

main90464-00225i198108-198208

RR

main90464-00226i198108-198208

FR

main90464-00287×2i198108-198512

main90464-00303i198208-198507

FR

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00059i198208-198507

main90464-00227i198108-198208

main90464-00288i198108-198512

19949CLAMP, RESISTIVE CORD, NO.5

main90464-00273i198108-198512

19965BAND, IGNITION COIL, NO.1

main90919-03076i198108-198308

main90919-03083i198108-198208

CALIFORNIA SPEC

main90919-03085i198108-198208

main90919-03092i198208-198408

main90919-03098i198408-198507

9011906157

main90119-06157

9165140612

main91651-40612

9165140616

main91651-40616

23 parts on this diagram · 4 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CELICA

This section contains 29 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CELICA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COVER, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE.
