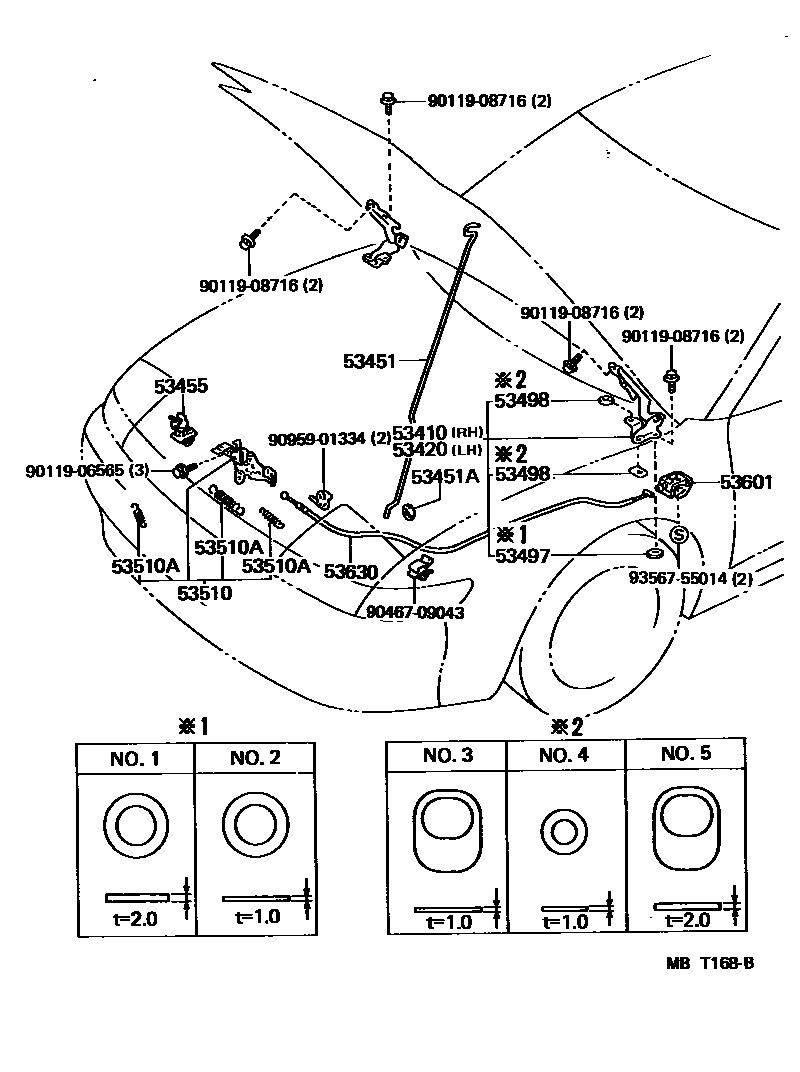

Toyota CELICA — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53455CLAMP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
NO.1
NO.2
53498PAD, HOOD HINGE, NO.2
NO.3
N0.4; NO.4
NO.5
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,WD=0.9,CW=26.5,L=39.6
WD=0.9,CW=21.25,WD=0.9,CW=21.25,L=34.4
WD=0.9,CW=20.75,WD=0.9,CW=20.75,L=35.0
WD=2.0,CW=17,L=59.0
WD=2.0,CW=17,L=59.0
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
9011906565
main90119-06565
9011908716
main90119-08716
9046709043
main90467-09043
9095901334
main90959-01334
9356755014
main93567-55014
16 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota CELICA
This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota CELICA. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
