Toyota CELICA — HOOD LOCK & HINGE

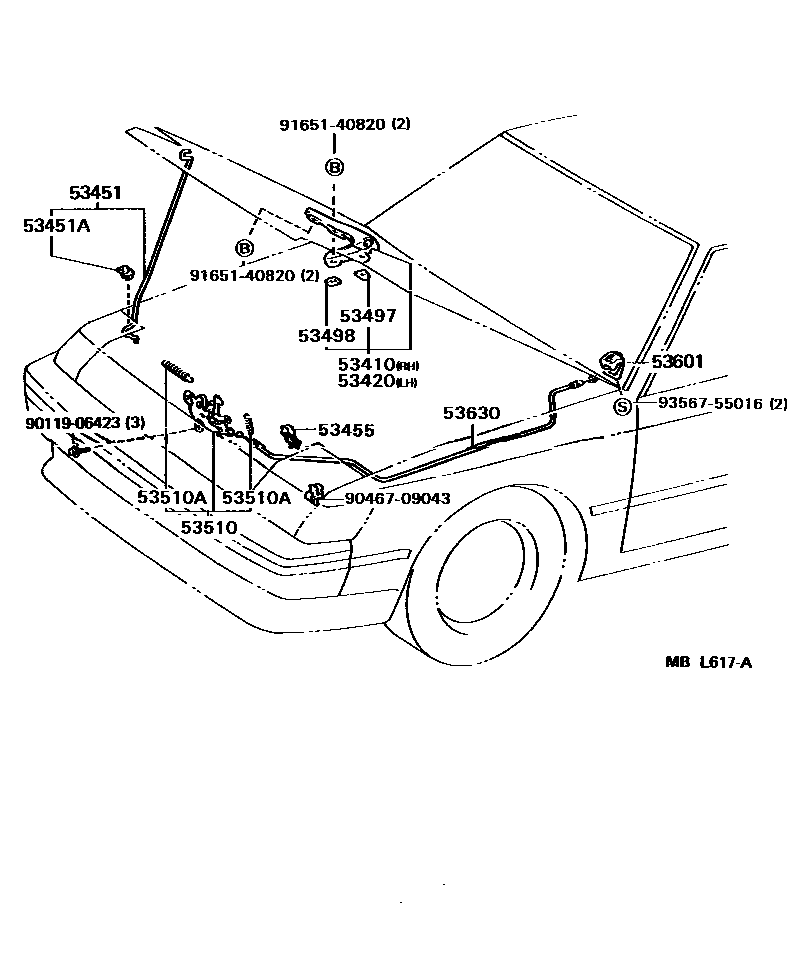

Parts diagram
53410HINGE ASSY, HOOD, RH
main53410-32010i198708-198808
main53410-32011i198808-198908
53420HINGE ASSY, HOOD, LH
main53420-32010i198708-198808
main53420-32011i198808-198908
53451ROD, HOOD SUPPORT
main53451-20030i198708-198908
53451AGROMMET(FOR HOOD SUPPORT ROD)
main90480-01340i198708-198908
53455CLAMP, HOOD SUPPORT ROD
main53455-20010i198708-198908
53497PAD, HOOD HINGE, NO.1
main53497-32030i198708-198808
main53497-32031i198808-198908
53498PAD, HOOD HINGE, NO.2
main53498-12010i198708-198808
main53498-12011i198808-198908
53510LOCK ASSY, HOOD
main53510-20190i198708-198908
53510ASPRING, TENSION(FOR HOOD LOCK)
main90506-09029i198708-198908
WD=0.9,WD=0.9,CW=26.5
main90506-20008i198708-198908
WD=2.0,CW=17,WD=2.0,CW=17
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-12030-11i198708-198908
NEW BLACK,TRIM2#
main53601-20060-01i198708-198908
BLACK,TRIM2#
main53601-20060-15i198708-198908
DARK BEIGE,TRIM4#
main53601-20060-22i198708-198908
RED,TRIM3#
main53601-20060-24i198708-198908
DEEP BLUE,TRIM8#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-20160i198708-198908
9011906423
main90119-06423
9046709043
main90467-09043
9165140820
main91651-40820
9356755016
main93567-55016

15 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota CELICA

This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota CELICA. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
