Toyota CELICA — HEATING & AIR CONDITIONING - SET

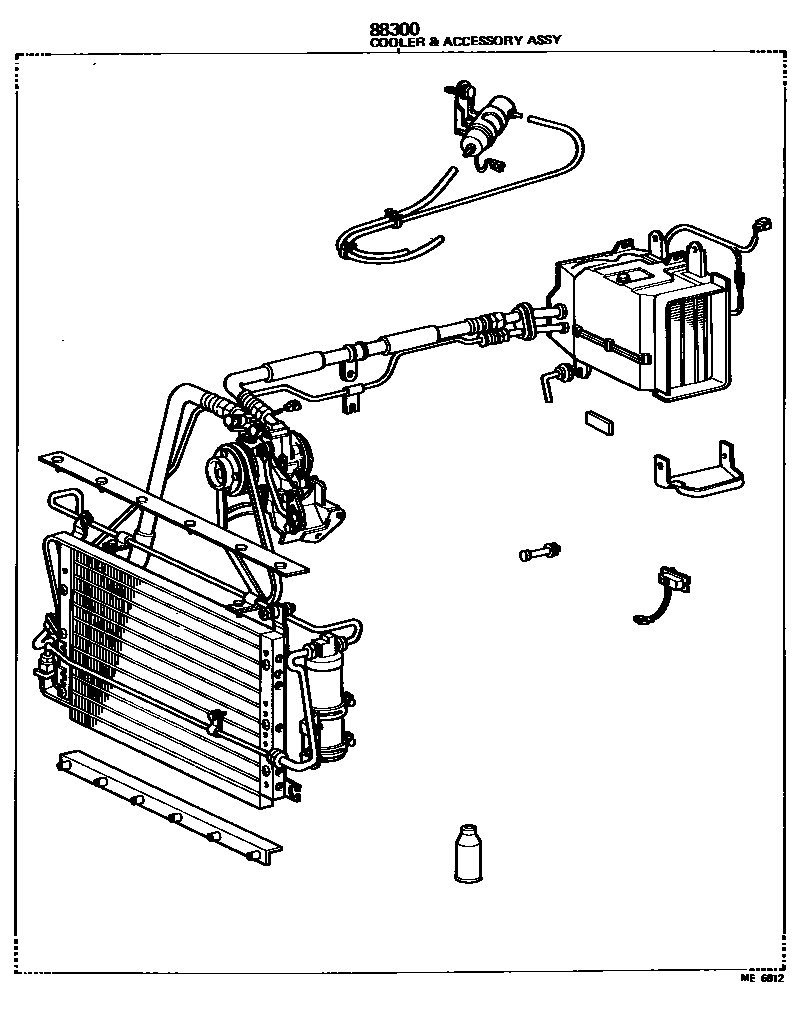

Parts diagram
88300COOLER & ACCESSORY ASSY
main88300-1B790i198108-198308
main88300-1B800i198108-198208
main88300-1D140i198108-198308
W/BOOST VENTILATOR ONLY
main88300-1D480i198208-198308
main88300-1D481i198308-198507
main88300-1D490i198208-198308
W/BOOST VENTILATOR ONLY
main88300-1D491i198308-198507
W/BOOST VENTILATOR ONLY
main88300-1D500i198208-198308
main88300-1D501i198308-198507

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota CELICA

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota CELICA. Key components include: COOLER & ACCESSORY ASSY.
