Toyota CELICA — HEATING & AIR CONDITIONING - COMPRESSOR

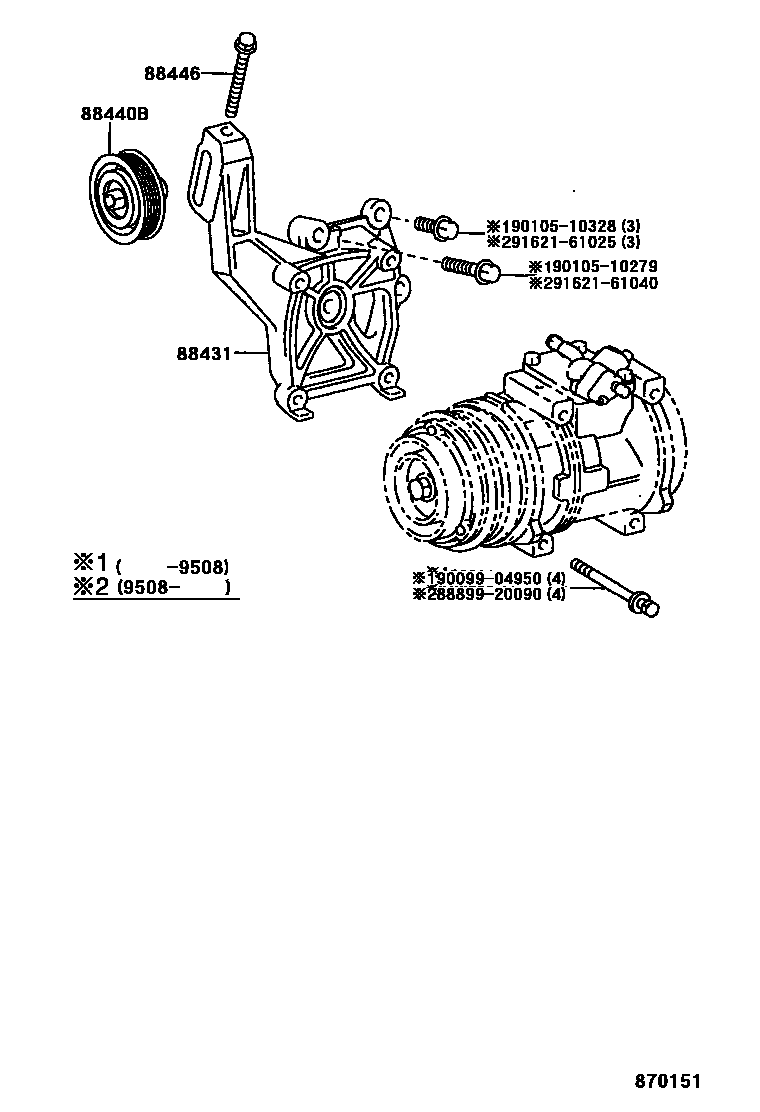

Parts diagram

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12520i199309-199712

88440BPULLEY ASSY, IDLE

main88440-17010i199309-199712

88446BOLT, IDLE PULLEY

main88446-12030i199309-199712

8889920090COVER, EVAPORATOR

main88899-20090

9009904950

main90099-04950

9010510279

main90105-10279

9010510328

main90105-10328

9162161025

main91621-61025

9162161040

main91621-61040

9 parts on this diagram · 6 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CELICA

This section contains 48 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CELICA. Key components include: MOUNTING, V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, PLUNGER SUB-ASSY.
