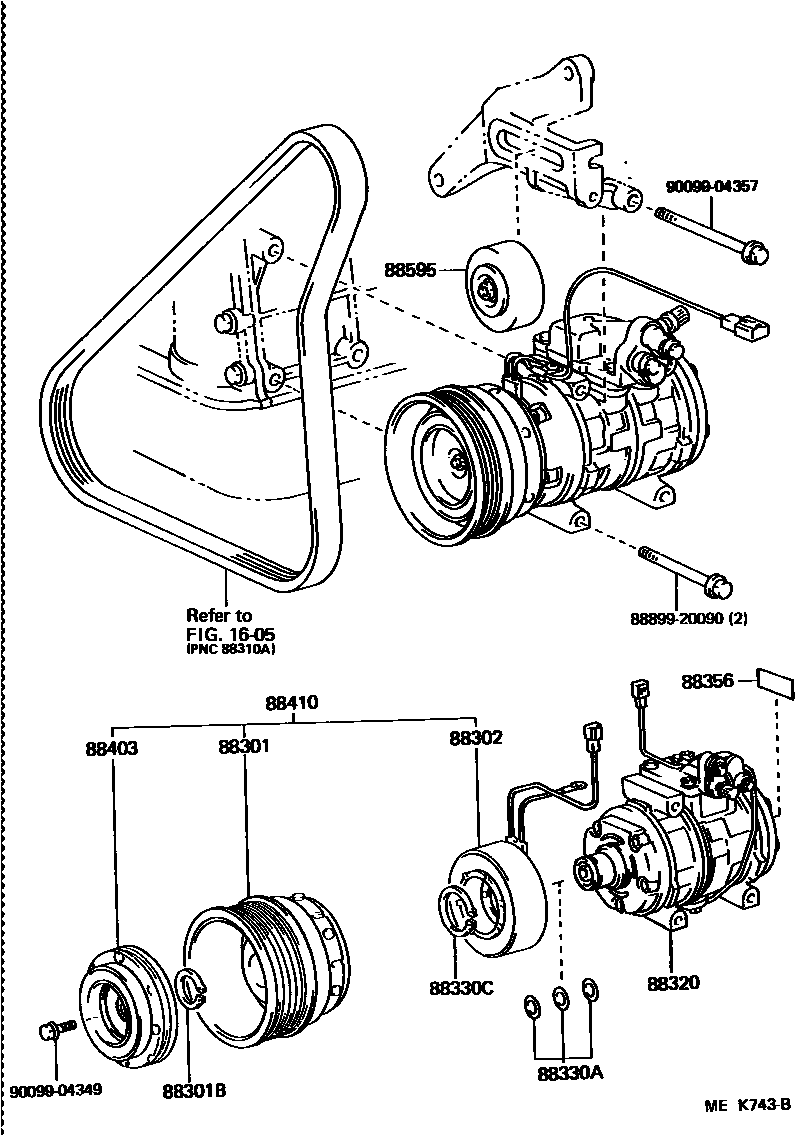

Toyota CELICA — HEATING & AIR CONDITIONING - COMPRESSOR

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090i198708-198908

88301BRING, SNAP (FOR MAGNET CLUTCH)

main90099-07125i198708-198908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-20150i198708-198908

88320COMPRESSOR ASSY, COOLER

main88320-20590i198708-198908

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i198708-198908

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114i198708-198908

88356LABEL, COMPRESSOR CAUTION

main88356-12010i198708-198908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i198708-198908

88410CLUTCH ASSY, MAGNET

main88410-20200i198708-198908

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20120i198708-198908

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009904357

main90099-04357

14 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CELICA

This section contains 30 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CELICA. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, RING, SNAP (FOR MAGNET CLUTCH), STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER.
