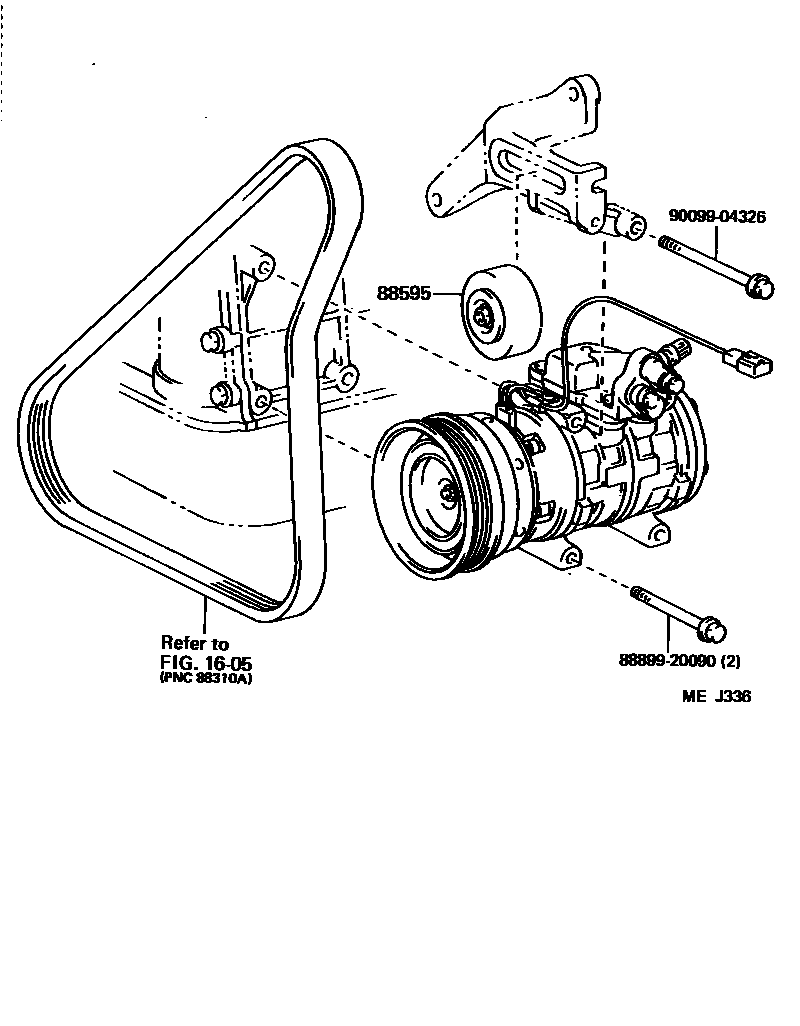

Toyota CELICA — HEATING & AIR CONDITIONING - COMPRESSOR

1605V-BELT

→ Go to FIG 16-05

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20120i198508-198708

8889920090COVER, EVAPORATOR

main88899-20090

9009904326

main90099-04326

4 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CELICA

This section contains 40 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CELICA. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR, CRANKSHAFT, COOLER COMPRESSOR.
