Toyota CELICA — HEADLAMP

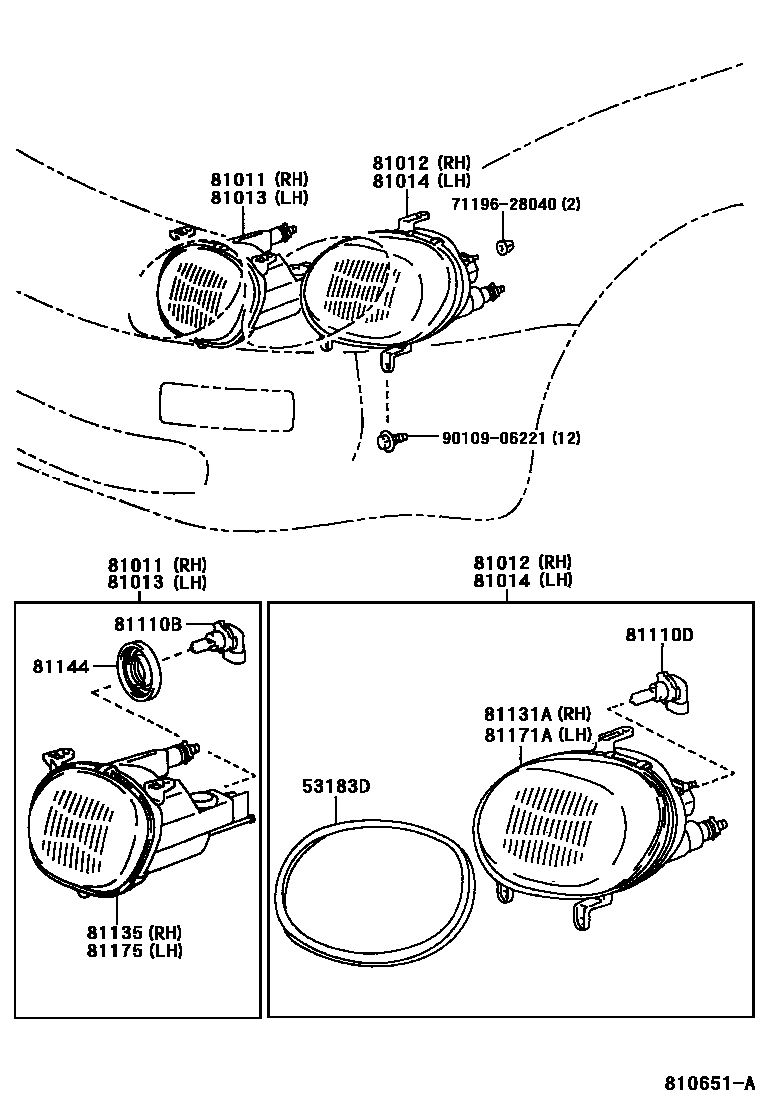

Parts diagram

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-20110i199309

RH

main53184-20070i199309

LH

81011HEADLAMP SUB-ASSY, NO.1

main81011-20020i199309-199508

main81011-20040i199508-199510

main81011-20041i199806

81012HEADLAMP SUB-ASSY, NO.2

main81012-20020i199309-199508

main81012-20070i199508-199510

main81012-20071i199806

81013HEADLAMP SUB-ASSY, TYPE 1, LH

main81013-20020i199309-199508

main81013-20040i199508-199510

main81013-20041i199806

81014HEADLAMP SUB-ASSY, TYPE 2, LH

main81014-20020i199309-199508

main81014-20070i199508-199510

main81014-20071i199806

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i199309

12V 65W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2i199309

12V 51W

81131AUNIT, HEADLAMP, RH

main81131-20020i199309-199508

main81131-20070i199508-199510

main81131-20071i199806

81135UNIT ASSY, HEADLAMP, RH

main81130-20020i199309-199508

main81130-20040i199508-199510

main81130-20041i199806

81144COVER, HEADLAMP, NO.1

main90075-99054×2i199508-199510

81171AUNIT, HEADLAMP, LH

main81171-20020i199309-199508

main81171-20070i199508-199510

main81171-20071i199806

81175UNIT ASSY, HEADLAMP, LH

main81170-20020i199309-199508

main81170-20040i199508-199510

main81170-20041i199806

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9010906221

main90109-06221

14 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota CELICA

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota CELICA. Key components include: SEAL, HEADLAMP COVER TO HOOD, HEADLAMP SUB-ASSY, NO.1, HEADLAMP SUB-ASSY, NO.2, HEADLAMP SUB-ASSY, TYPE 1, LH, HEADLAMP SUB-ASSY, TYPE 2, LH.
