Toyota CELICA — HEADLAMP

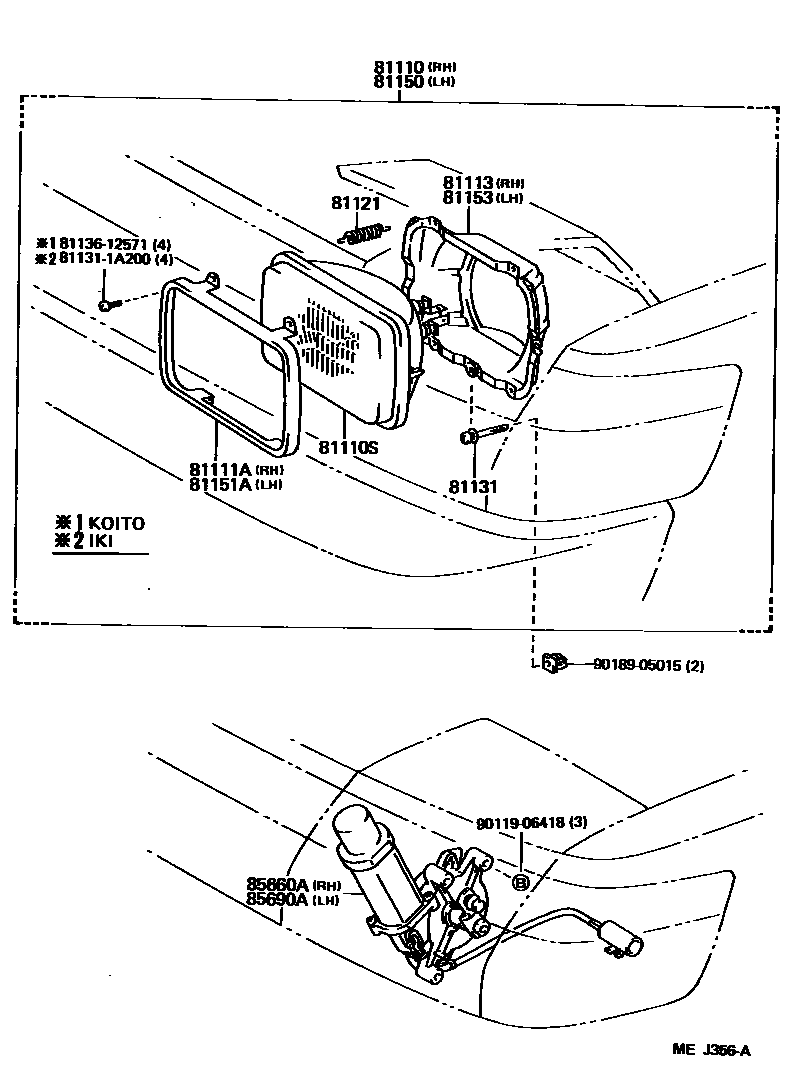

Parts diagram
81110HEADLAMP ASSY, RH
main81110-17030i198708-198908
HALOGEN
main81110-2B050i198708-198908
KOITO
main81110-2B060i198708-198908
IKI
81110SSEALED BEAM UNIT, NO.1
main90981-04003×2i198708-198908
12V 65/55W,*WB,IKI
main90981-04004×2i198708-198908
12V 65/55W,*WB,KOITO
main90981-04020×2i198708-198908
12V 65/35W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
main81111-14710i198708-198908
IKI
main81111-17010i198708-198908
HALOGEN; KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
main81113-17010i198708-198908
HALOGEN; KOITO
main81113-20840i198708-198908
IKI
81121SPRING, HEADLAMP TENSION
main81121-14710×2i198708-198908
IKI
main81121-17010×2i198708-198908
HALOGEN; KOITO
81131SCREW, HEADLAMP ADJUSTING
main81131-14710×4i198708-198908
IKI
main81131-17010×4i198708-198908
HALOGEN; KOITO
81150HEADLAMP ASSY, LH
main81150-17030i198708-198908
HALOGEN
main81150-2B010i198708-198908
KOITO
main81150-2B020i198708-198908
IKI
81151ARING, SEALED BEAM RETAINING, NO.1 LH
main81111-14710i198708-198908
IKI
main81111-17010i198708-198908
HALOGEN; KOITO
81153RING, SEALED BEAM MOUNTING, NO.1 LH
main81153-17010i198708-198908
HALOGEN; KOITO
main81153-20690i198708-198908
IKI
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
main85660-20020i198708-198908
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
main85690-20020i198708-198908
811311A200SCREW, HEADLAMP ADJUSTING
main81131-1A200
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9011906418
main90119-06418
9018905015
main90189-05015

15 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota CELICA

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota CELICA. Key components include: HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH, SPRING, HEADLAMP TENSION.
