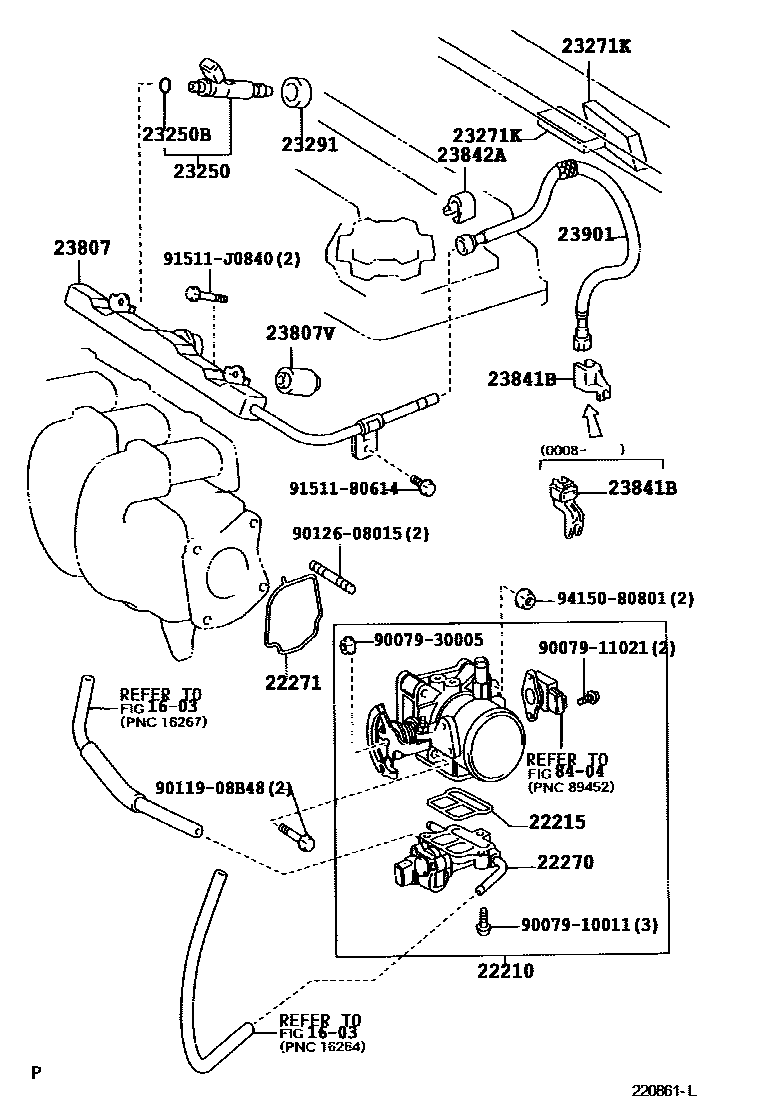

Toyota CELICA — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
NO.= 23250-22060,MARK WHITE
MARK BLUE
NO.= 23250-22070
NO.= 23250-22130
23250BRING, O(FOR FUEL INJECTOR)
23271KINSULATOR(FOR FUEL HOSE)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
8404ELECTRONIC FUEL INJECTION SYSTEM
9007910011
main90079-10011
9007911021
main90079-11021
9007930005
main90079-30005
9011908B48
main90119-08B48
9012608015
main90126-08015
9151180614
main91511-80614
91511J0840
main91511-J0840
9415080801
main94150-80801
23 parts on this diagram · 4 diagrams in section
FUEL INJECTION SYSTEM for Toyota CELICA
This section contains 44 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY), GASKET, THROTTLE BODY.
