Toyota CELICA — FUEL INJECTION SYSTEM

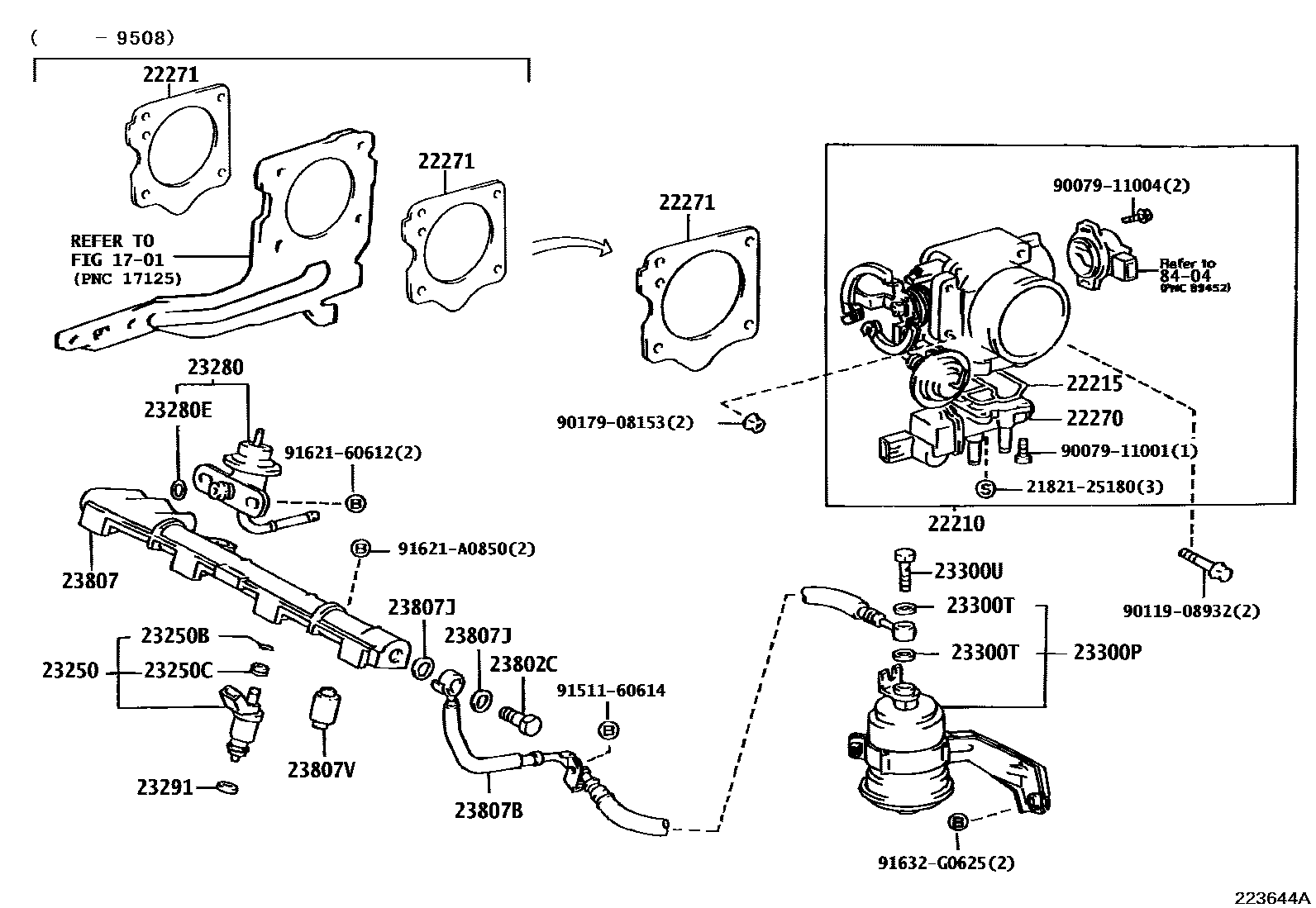

Parts diagram
1701MANIFOLD
→ Go to FIG 17-01
22210BODY ASSY, THROTTLE
main22210-16750i199309-199508
main22210-16791i199508-199712
main22210-7A140i199309-199508
main22210-7A150i199508-199510
main22210-7A160i199508-199510
CALIFORNIA SPEC
main22210-7A170i199309-199508
CALIFORNIA SPEC
main22210-7A490i199510-199601
main22210-7A500i199508-199510
main22210-7A510i199508-199510
CALIFORNIA SPEC
main22210-7A520i199510-199601
CALIFORNIA SPEC
main22210-7A670i199712-199905
CALIFORNIA SPEC
main22210-7A780i199905
22215GASKET, THROTTLE BODY COVER
main22215-74400i199309-199905
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
main22270-15010i199309-199508
main22270-16060i199508-199712
main22270-74170i199309-199508
CALIFORNIA SPEC
main22270-74180i199309-199508
CALIFORNIA SPEC
main22270-74190i199508-199510
main22270-74200i199309-199508
main22270-74280i199508-199510
main22270-74290i199508-199510
CALIFORNIA SPEC
22271GASKET, THROTTLE BODY
main22271-15020×2i199309-199508
main22271-74022i199309-199905
23250INJECTOR ASSY, FUEL
main23209-16160×4i199309-199712
main23209-74100×4i199309-199905
main23209-74140×4i199905
CALIFORNIA SPEC
23250BRING, O(FOR FUEL INJECTOR)
main90301-07001×4i199309-199712
main90301-07024×4i199812-199905
CALIFORNIA SPEC
23250CGROMMET(FOR FUEL INJECTOR)
main90480-13005×4i199309-199712
23280REGULATOR ASSY, FUEL PRESSURE
main23280-15020i199309-199712
main23280-74100i199309-199905
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
main90301-07001i199309-199712
23291INSULATOR, INJECTOR VIBRATION
main23291-41010×4i199309-199712
main23291-62010×4i199309-199905
CALIFORNIA SPEC
23300PFILTER, FUEL(FOR EFI)
main23300-19375i199309-199505
main23300-19425i199505-199712
main23300-79425i199309
23300TGASKET(FOR FUEL FILTER)
main90430-12026×2i199309-199712
23300UBOLT, UNION(FOR FUEL FILTER)
main90401-12097i199309-199602
main96341-11200i199602-199712
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
main90401-12097i199309-199712
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-74060i199508-199510
main23814-15050i199309-199712
main23814-74110i199510-199905
23807BHOSE, FUEL DELIVERY PIPE
main23271-15270i199309-199508
main23271-16210i199508-199712
main23271-74450i199309-199508
main23271-74550i199508-199510
23807JGASKET, PIPE FUEL DELIVARY INLET
main90430-12026×2i199309-199712
23807VSPACER, NO.1(FOR DELIVERY PIPE)
main90560-11020×2i199309-199508
main90561-08020×2i199309-199712
main90561-08053×2i199508-199905
8404ELECTRONIC FUEL INJECTION SYSTEM
→ Go to FIG 84-04
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911001
main90079-11001
9007911004
main90079-11004
9011908932
main90119-08932
9017908153
main90179-08153
9151160614
main91511-60614
9162160612
main91621-60612
91621A0850
main91621-A0850
91632G0625
main91632-G0625

29 parts on this diagram · 5 diagrams in section

FUEL INJECTION SYSTEM for Toyota CELICA

This section contains 63 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: MANIFOLD, BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1).
