Toyota CELICA — FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
22210CHOSE, WATER BY-PASS, NO.1
*H,L=280
22210DHOSE, WATER BY-PASS, NO.2
*H,L=230
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22210YRING, O(FOR AIR TUBE)
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22238GASKET, AUXILIARY AIR VALVE
22240LIMITER ASSY, VACUUM
22240AHOSE, VACUUM LIMITER, NO.1
22240BHOSE, VACUUM LIMITER, NO.2
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280BHOSE, FUEL PRESSURE REGULATOR RETURN
23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300WBRACKET, FUEL FILTER
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
9011908456
main90119-08456
9017908044
main90179-08044
9046715012
main90467-15012
9151160612
main91511-60612
9161160845
main91611-60845
9161160865
main91611-60865
9165160614
main91651-60614
9166660616
main91666-60616
9166660620
main91666-60620
9331514014
main93315-14014
9331915016
main93319-15016

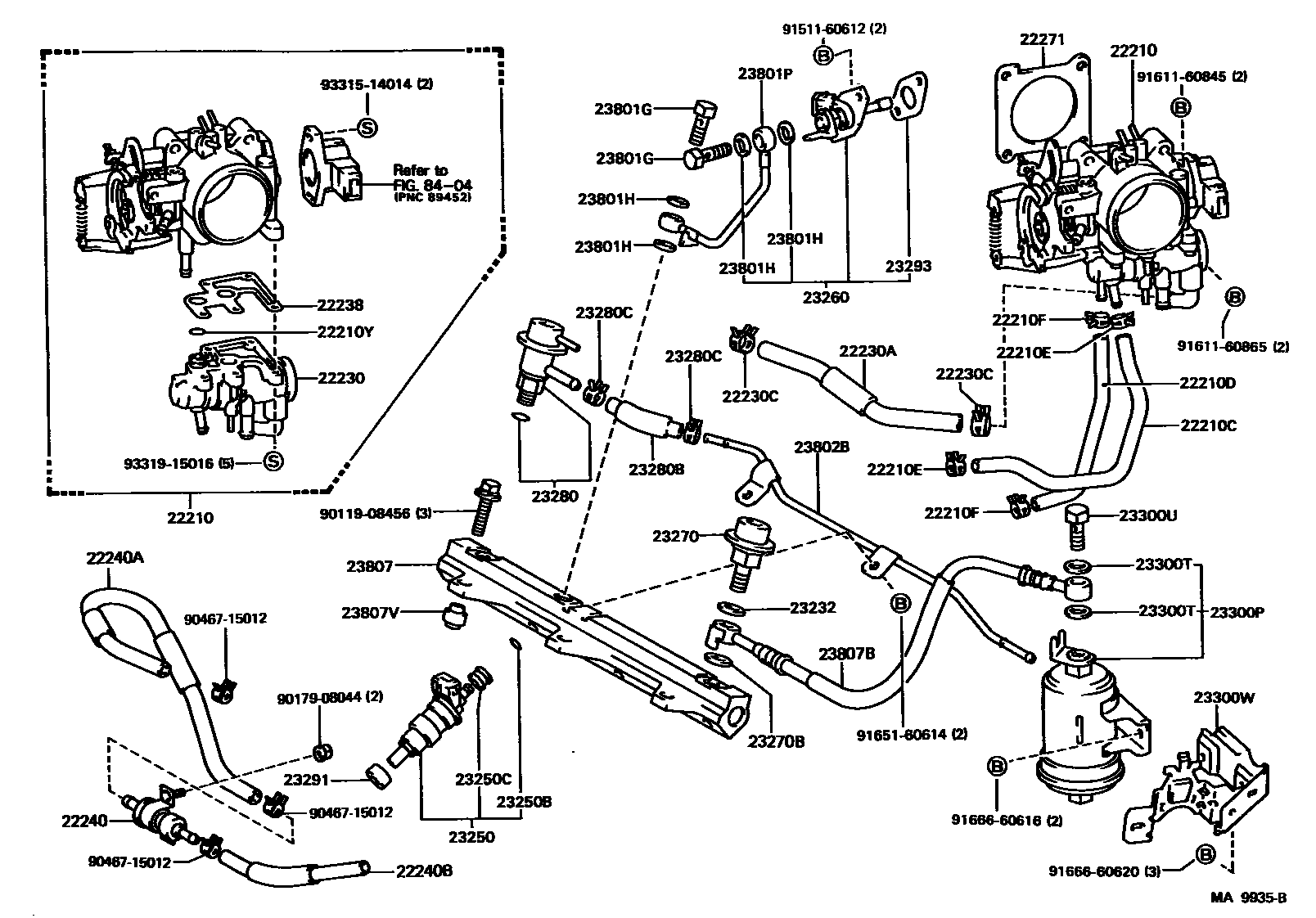

49 parts on this diagram · 4 diagrams in section
FUEL INJECTION SYSTEM for Toyota CELICA
This section contains 82 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1), CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2).
