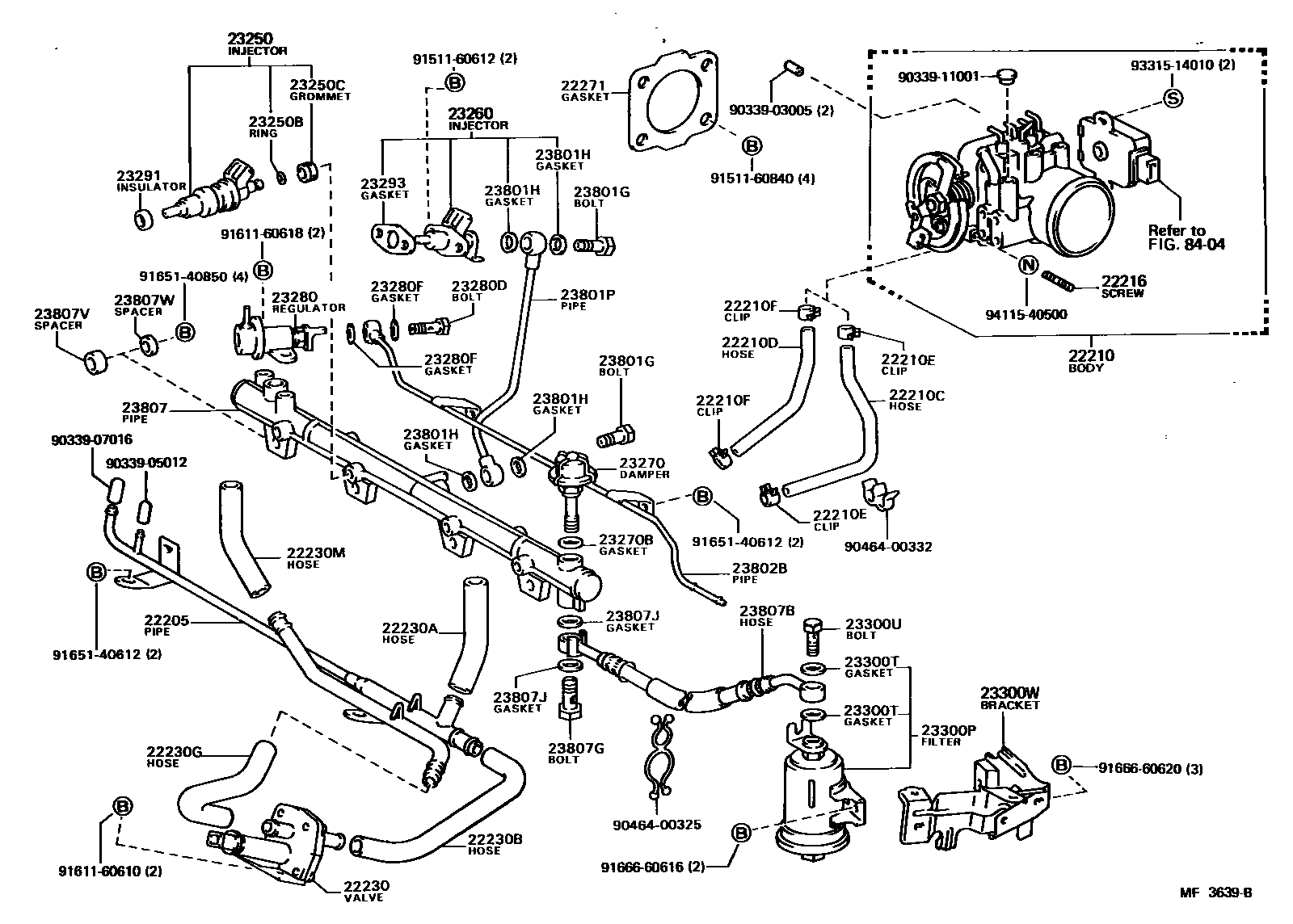

Toyota CELICA — FUEL INJECTION SYSTEM
22205PIPE SUB-ASSY, AUXILIARY AIR
22210BODY ASSY, THROTTLE
W/AUTO DRIVE
22210CHOSE, WATER BY-PASS, NO.1
*H,L=280
22210DHOSE, WATER BY-PASS, NO.2
*H,L=230
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230GHOSE, AUXILIARY AIR VALVE, NO.3
22230MHOSE, AUXILIARY AIR VALVE, NO.4
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300WBRACKET, FUEL FILTER
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807GBOLT, UNION PIPE FUEL DELIVARY INLET
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23807WSPACER, NO.2(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
9033903005
main90339-03005
9033905012
main90339-05012
9033907016
main90339-07016
9033911001
main90339-11001
9046400325
main90464-00325
9046400332
main90464-00332
9151160612
main91511-60612
9151160840
main91511-60840
9161160610
main91611-60610
9161160618
main91611-60618
9165140612
main91651-40612
9165140850
main91651-40850
9166660616
main91666-60616
9166660620
main91666-60620
9331514010
main93315-14010
9411540500
main94115-40500
55 parts on this diagram · 4 diagrams in section
FUEL INJECTION SYSTEM for Toyota CELICA
This section contains 89 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: PIPE SUB-ASSY, AUXILIARY AIR, BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1).
