Toyota CELICA — FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
ID=21
ID=23
22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2
22238GASKET, AUXILIARY AIR VALVE
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23260ABOLT, UNION
23260BGASKET
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23809SUPPORT SUB-ASSY, FUEL PIPE
23809CGASKET, FUEL PIPE SUPPORT
23809FCLIP(FOR FUEL PIPE SUPPORT)
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
8404ELECTRONIC FUEL INJECTION SYSTEM
9010508036
main90105-08036
9010508037
main90105-08037
9020412029
main90204-12029
9033907016
main90339-07016
9161140840
main91611-40840
9161140860
main91611-40860
9331514010
main93315-14010
9338116012
main93381-16012
9411050800
main94110-50800
9411540500
main94115-40500
9411541200
main94115-41200
9451200800
main94512-00800

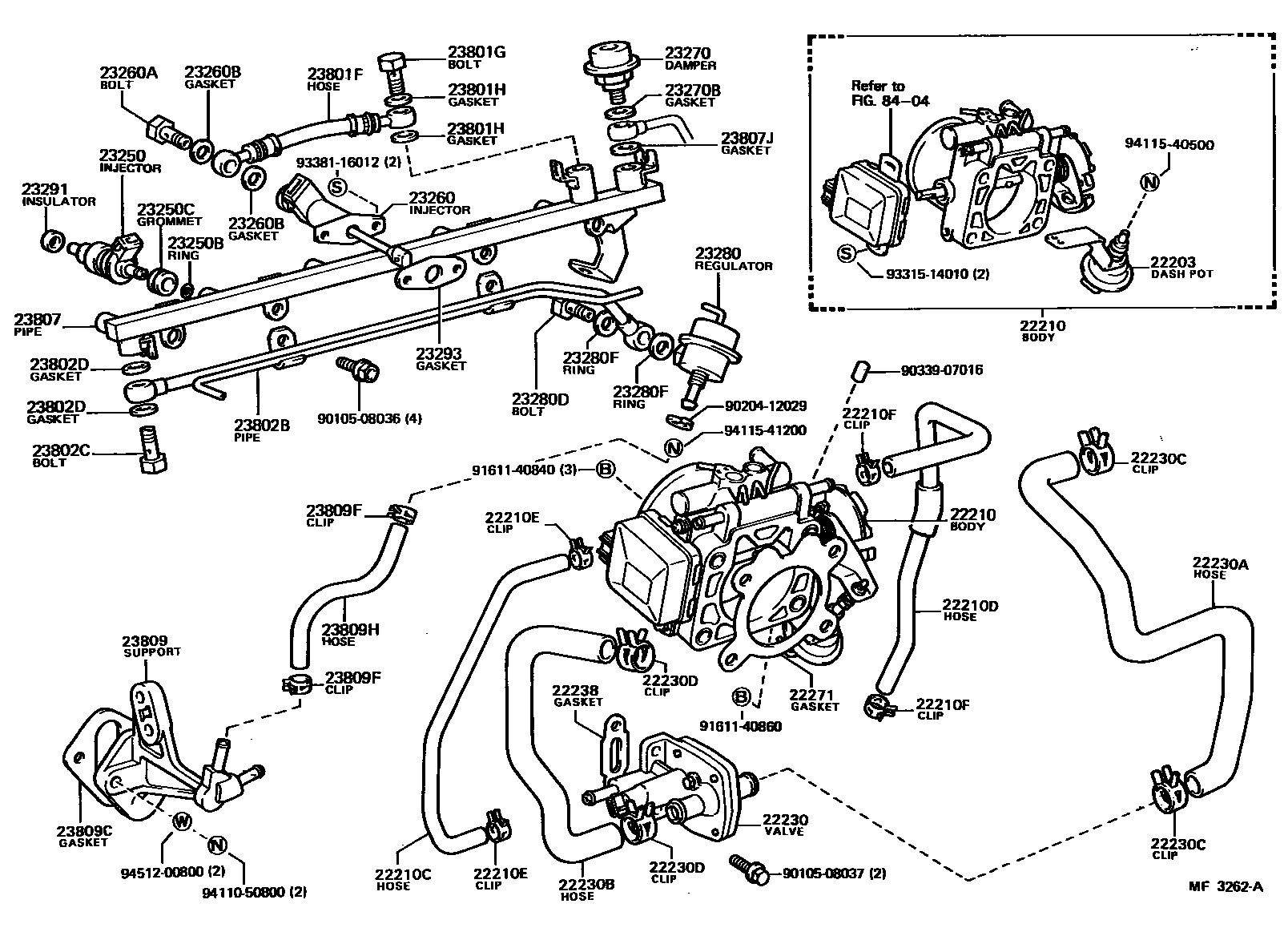

51 parts on this diagram · 9 diagrams in section
FUEL INJECTION SYSTEM for Toyota CELICA
This section contains 122 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: DASH POT SUB-ASSY(FOR THROTTLE BODY), BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1).
