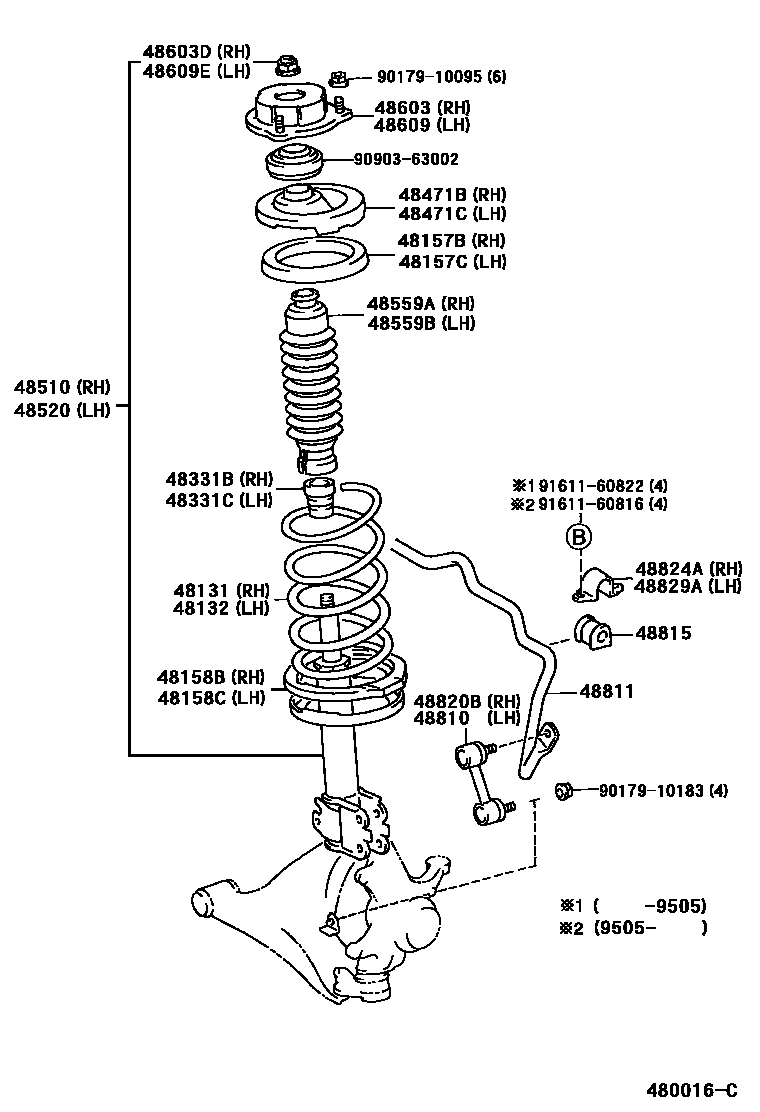

Toyota CELICA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-2S640iAT200..MTM199309-199712

main48131-2S660iAT200..ATM199309-199712

main48131-2S680iST204..CVT..MTM199408

main48131-2S700iST204..CVT..ATM199408

main48131-2S740iST204..(CP,LB)..MTM199309

main48131-2S760iST204..(CP,LB)..ATM199309

48132SPRING, FRONT COIL, LH

main48131-2S640iAT200..MTM199309-199712

main48131-2S660iAT200..ATM199309-199712

main48131-2S680iST204..CVT..MTM199408

main48131-2S700iST204..CVT..ATM199408

main48131-2S740iST204..(CP,LB)..MTM199309

main48131-2S760iST204..(CP,LB)..ATM199309

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-20150iAT200,ST204199309

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-20150iAT200,ST204199309

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-20100iAT200,ST204199309

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-20100iAT200,ST204199309

48331BBUMPER, FRONT SPRING, RH

main48331-20110iAT200,ST204199309

48331CBUMPER, FRONT SPRING, LH

main48331-20110iAT200,ST204199309

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-20060iAT200,ST204199309

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-20060iAT200,ST204199309

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29235iST204..LB;ST204..CP..ST199309-199801

SPORTS PACKAGE

main48510-29236iST204..CP,LB199801

SPORTS PACKAGE

sub48510-80219

main48510-29245iAT200,ST204199309-199801

main48510-29246iST204199801

sub48510-80219

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29075iST204..LB;ST204..CP..ST199309-199801

SPORTS PACKAGE

main48520-29076iST204..CP,LB199801

SPORTS PACKAGE

sub48520-80045

main48520-29085iAT200,ST204199309-199801

main48520-29086iST204199801

sub48520-80045

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-20080iAT200,ST204199309

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-20080iAT200,ST204199309

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20390iAT200,ST204199309-199409

main48609-20401iAT200,ST204199409

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iAT200,ST204199309

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20390iAT200,ST204199309-199409

main48609-20401iAT200,ST204199409

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iAT200,ST204199309

48810LINK ASSY, FRONT STABILIZER, LH

main48820-33010iAT200,ST204199309

48811BAR, STABILIZER, FRONT

main48811-20840iST204199311

main48811-2B090iAT200..USA199309-199311

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030×2iAT200199311-199712

main48815-30040×2iST204;AT200..CND199309-199311

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33010iAT200,ST204199309

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12040iAT200,ST204199309

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-12040iAT200,ST204199309

9017910095

main90179-10095

9017910183

main90179-10183

9090363002

main90903-63002

9161160816

main91611-60816

9161160822

main91611-60822

29 parts on this diagram · 1 diagram in section
