Toyota CELICA — FRONT MOULDING

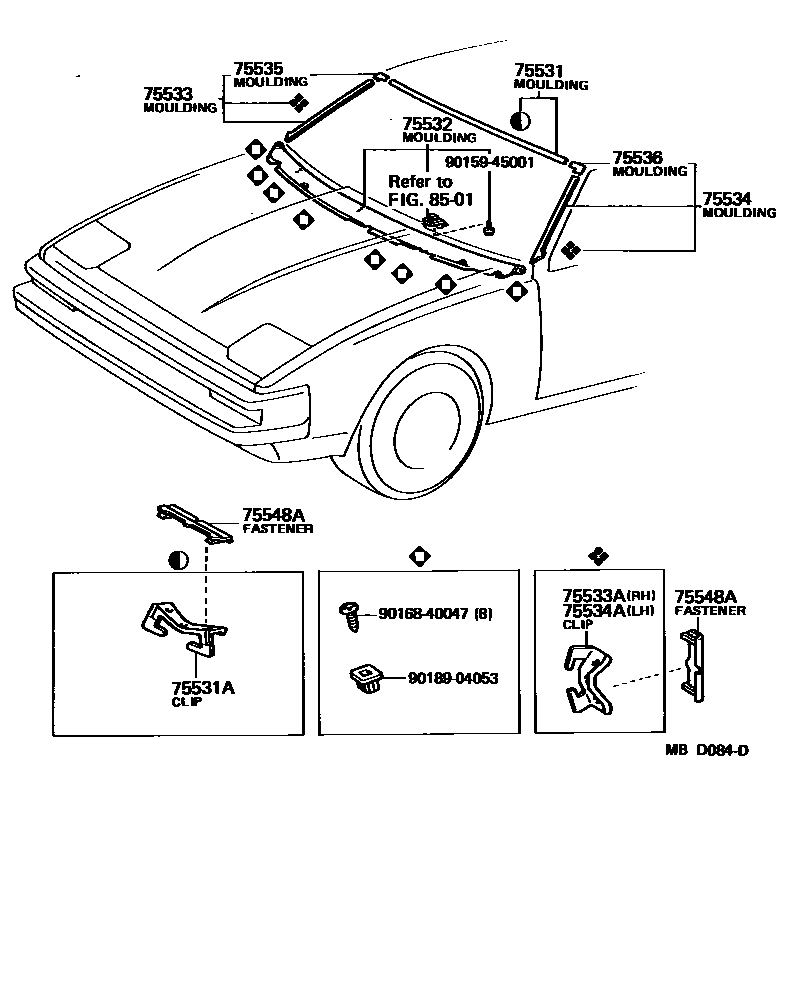

Parts diagram

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-14120i198108-198512

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75546-14080i198108-198512

75532MOULDING, WINDSHIELD, LOWER

main75535-14170i198108-198507

main75535-14180i198108-198512

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-14130i198108-198312

main75533-14160i198312-198512

75533ACLIP, WINDSHIELD SIDE MOULDING, RH

main75545-14060i198312-198512

main75545-14081i198108-198312

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-14100i198108-198312

main75534-14130i198312-198512

75534ACLIP, WINDSHIELD SIDE MOULDING, LH

main75545-14060i198312-198512

main75545-14081i198108-198312

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-14080i198108-198312

main75541-14090i198312-198512

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-14060i198108-198312

main75542-14070i198312-198512

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-24020i198108-198512

8501WINDSHIELD WIPER

→ Go to FIG 85-01

9015945001

main90159-45001

9016840047

main90168-40047

9018904053

main90189-04053

14 parts on this diagram · 1 diagram in section

FRONT MOULDING for Toyota CELICA

This section contains 14 genuine Toyota parts for the FRONT MOULDING system of the Toyota CELICA. Key components include: MOULDING, WINDSHIELD, OUTER UPPER, CLIP, WINDSHIELD MOULDING SET, NO.1, MOULDING, WINDSHIELD, LOWER, MOULDING, WINDSHIELD, OUTSIDE RH, CLIP, WINDSHIELD SIDE MOULDING, RH.
