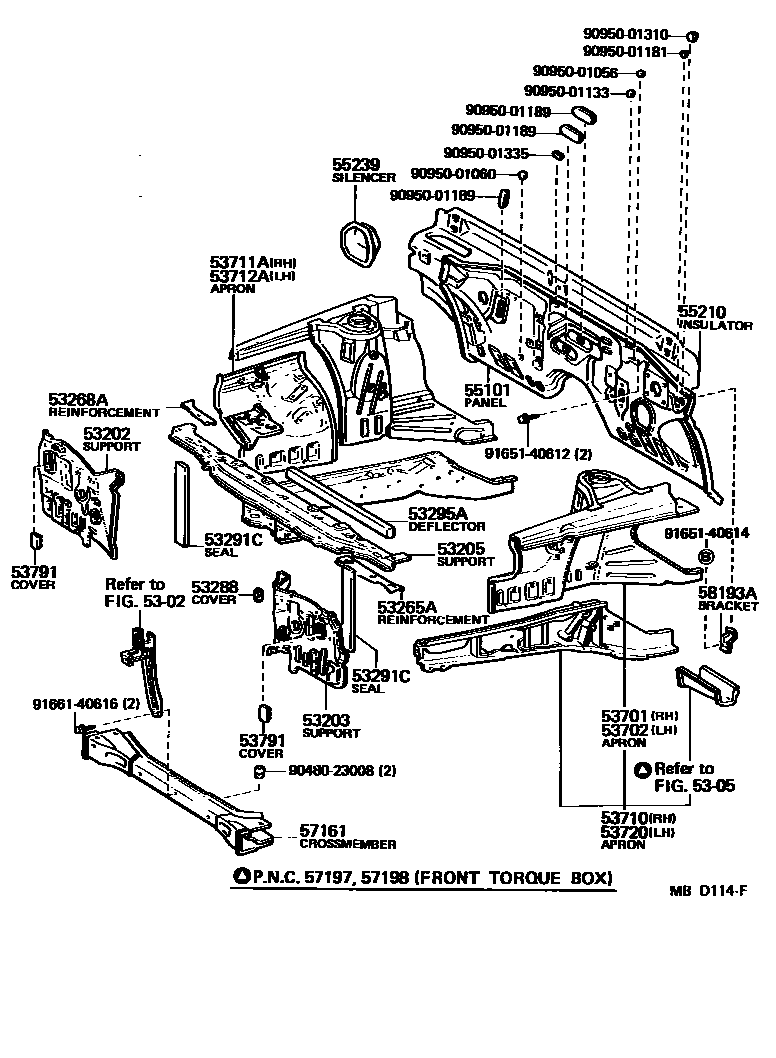

Toyota CELICA — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5302

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-14150iRA6#198108-198507

sub53202-14180

main53211-14170iMA61198108-198512

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-14200iRA6#..EFI198208-198507

main53203-14210iRA64..CBR198108-198308

main53212-14150iMA61198108-198512

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14070iMA61198108-198512

main53205-14080iRA6#198108-198507

53265AREINFORCEMENT, BATTERY CARRIER MOUNTING

main53265-14030iRA65..CVT198404-198507

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-14010iRA65..CVT198404-198507

53288COVER, POWER STEERING PIPE HOLE

main53288-14050iRA64..CBR198108-198308

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14020×2iRA6#198108-198507

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14030iMA61198108-198512

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-14050iRA6#198108-198507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14917iRA64..CBR198108-198308

main53701-14919iMA61198108-198512

main53701-14922iRA6#..EFI198208-198507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14916iRA64..CBR198108-198308

main53702-14919iMA61198108-198512

main53702-14924iRA6#..EFI198208-198507

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-14906iRA64..CBR198108-198308

main53710-14908iMA61198108-198512

main53710-14909iRA6#..EFI198208-198507

53711AAPRON, FRONT FENDER, W/SUPPORT, FRONT RH

main53711-14900iRA64..CBR198108-198308

main53711-14901iMA61198108-198512

main53711-14902iRA6#..EFI198208-198507

53712AAPRON, FRONT FENDER, W/SUPPORT, FRONT LH

main53712-14900iRA64..CBR198108-198308

main53712-14901iMA61198108-198512

main53712-14902iRA6#..EFI198208-198507

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-14905iRA64..CBR198108-198308

main53720-14908iMA61198108-198512

main53720-14912iRA6#..EFI198208-198507

53791COVER, COOL AIR INTAKE HOLE

main53791-14010×2iRA6#198108-198507

55101PANEL SUB-ASSY, DASH

main55101-14912iRA64..CBR198108-198305

main55101-14919iMA61198108-198305

main55101-14921iRA6#..EFI198208-198305

main55101-14926iRA6#..EFI198305-198507

main55101-14927iRA64..CBR198305-198308

main55101-14931iMA61198305-198512

55210INSULATOR ASSY, DASH PANEL

main55210-14230iRA64..CBR198108-198308

main55210-14310iMA61198108-198512

main55210-14320iRA6#..5F..EFI198208-198507

main55210-14330iRA64..4FC198208-198507

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14060iMA61,RA6#198108-198512

57161CROSSMEMBER, FRONT

main57104-14060iRA6#198108-198507

main57104-14080iMA61198108-198512

58193ABRACKET, FUEL PIPE

main58193-14020iRA6#..EFI198208-198507

9048023008

main90480-23008

9095001056

main90950-01056

9095001060

main90950-01060

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9095001335

main90950-01335

9165140612

main91651-40612

9165140614

main91651-40614

9166140616

main91661-40616

34 parts on this diagram · 2 diagrams in section
