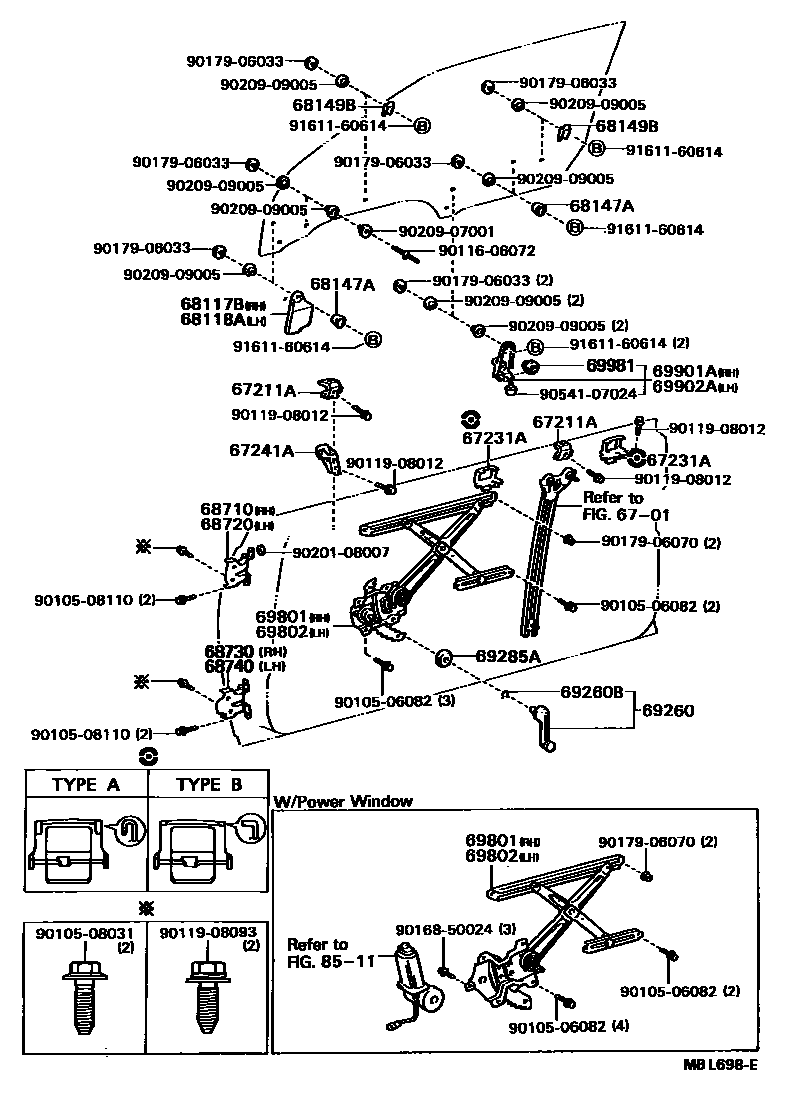

Toyota CELICA — FRONT DOOR WINDOW REGULATOR & HINGE
6701FRONT DOOR PANEL & GLASS
67211ASTOP, FRONT DOOR WINDOW, UPPER
67231ASUPPORT, FRONT DOOR TRIM
TYPE B
TYPE A
67241ASTABILIZER, DOOR GLASS, INNER
68117BPLATE, FRONT DOOR GLASS, RH
68118APLATE, FRONT DOOR GLASS, LH
68147ASTOP, FRONT DOOR GLASS, UPPER
68149BSTABILIZER, FRONT DOOR GLASS MALE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
NEW BLACK,TRIM2#
DEEP BLUE,TRIM8#
RED,TRIM3#
DARK BEIGE,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69285APLATE, DOOR VENT WINDOW CONTROL HANDLE
NATURAL WHITE,TRIM2#,3#,4#,8#
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W(POWER WINDOW)
69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69981ROLLER, FRONT DOOR GLASS GUIDE
8511DOOR MOTOR & DOOR SOLENOID
9010506082
main90105-06082
9010508031
main90105-08031
9010508110
main90105-08110
9011606072
main90116-06072
9011908012
main90119-08012
9011908093
main90119-08093
9016850024
main90168-50024
9017906033
main90179-06033
9017906070
main90179-06070
9020108007
main90201-08007
9020907001
main90209-07001
9020909005
main90209-09005
9054107024
main90541-07024
9161160614
main91611-60614
35 parts on this diagram · 1 diagram in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota CELICA
This section contains 35 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota CELICA. Key components include: FRONT DOOR PANEL & GLASS, STOP, FRONT DOOR WINDOW, UPPER, SUPPORT, FRONT DOOR TRIM, STABILIZER, DOOR GLASS, INNER, PLATE, FRONT DOOR GLASS, RH.
