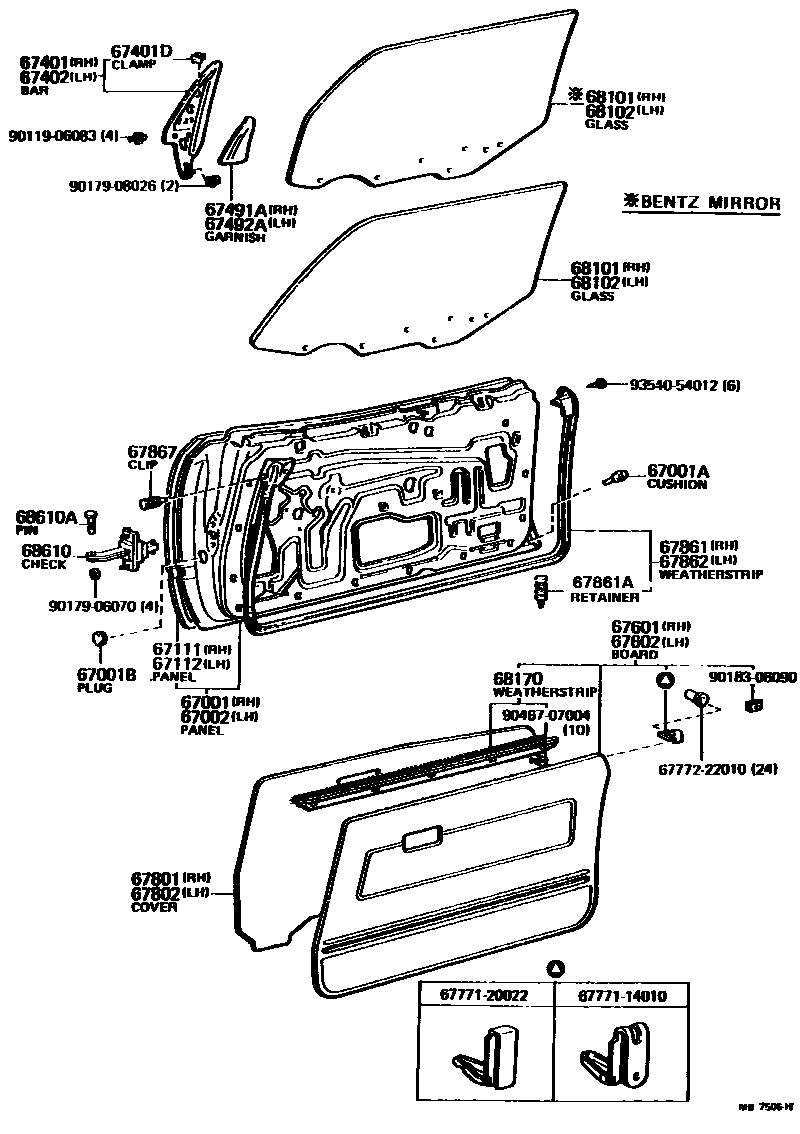

Toyota CELICA — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67001BPLUG, HOLE(FOR FRONT DOOR PANEL)
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401DCLAMP(FOR FRONT DOOR WINDOW BAR)
67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
IVORY,IVORY
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
BLACK,BLACK
L-BROWN,BROWN
W/ONE TOUCH *PW,BLACK,BLACK
W/ONE TOUCH *PW,DARK WINE,RED/MAROON
W/ONE TOUCH *PW,BLUE,BLUE
W/ONE TOUCH *PW,L-BROWN,BROWN
W/ONE TOUCH *PW,BLACK,BLACK
W/ONE TOUCH *PW,DARK WINE,RED/MAROON
W/ONE TOUCH *PW,BLUE,BLUE
W/ONE TOUCH *PW,L-BROWN,BROWN
SSV SEAT,DARK WINE,RED/MAROON
SSV SEAT,BLUE,BLUE
SSV SEAT,L-BROWN,BROWN
LEATHER SEAT,W/*PW
LEATHER SEAT W/*PW,DARK WINE,RED/MAROON
LEATHER SEAT W/*PW,L-BROWN,BROWN
SSV SEAT
SSV SEAT,BLACK,BLACK
SSV SEAT,L-BROWN,BROWN
SSV SEAT,IVORY,IVORY
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
L-BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
L-BROWN,BROWN
LEATHER SEAT
LEATHER SEAT,DARK WINE,RED/MAROON
LEATHER SEAT,L-BROWN,BROWN
OLYMPIC,IVORY
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK
L-BROWN,BROWN
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
IVORY,IVORY
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
SSV SEAT,BLACK,BLACK
SSV SEAT,L-BROWN,BROWN
OLYMPIC,IVORY,IVORY
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
BLACK,BLACK
L-BROWN,BROWN
W/ONE TOUCH *PW,BLACK,BLACK
W/ONE TOUCH *PW,DARK WINE,RED/MAROON
W/ONE TOUCH *PW,BLUE,BLUE
W/ONE TOUCH *PW,L-BROWN,BROWN
W/ONE TOUCH *PW,BLACK,BLACK
W/ONE TOUCH *PW,DARK WINE,RED/MAROON
W/ONE TOUCH *PW,BLUE,BLUE
W/ONE TOUCH *PW,L-BROWN,BROWN
SSV SEAT,DARK WINE,RED/MAROON
SSV SEAT,BLUE,BLUE
SSV SEAT,L-BROWN,BROWN
LEATHER SEAT,W/POWER WINDOW
LEATHER SEAT,W/*PW,DARK WINE,RED/MAROON
LEATHER SEAT,W/*PW,L-BROWN,BROWN
SSV,SEAT
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
L-BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
L-BROWN,BROWN
LEATHER SEAT
LEATHER SEAT,DARK WINE,RED/MAROON
LEATHER SEAT,L-BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
L-BROWN,BROWN
SPECIAL CAMPAIGN,W/*PW,L-BROWN
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0,BENTZ MIRROR
*TT,T=5.0,BENTZ MIRROR
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0,BENTZ MIRROR
*TT,T=5.0,BENTZ MIRROR
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
RH
LH
LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
6777114010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14010
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9011906083
main90119-06083
9017906070
main90179-06070
9017908026
main90179-08026
9018306090
main90183-06090
9046707004
main90467-07004
9354054012
main93540-54012
33 parts on this diagram · 1 diagram in section
FRONT DOOR PANEL & GLASS for Toyota CELICA
This section contains 33 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota CELICA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PLUG, HOLE(FOR FRONT DOOR PANEL), PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH.
