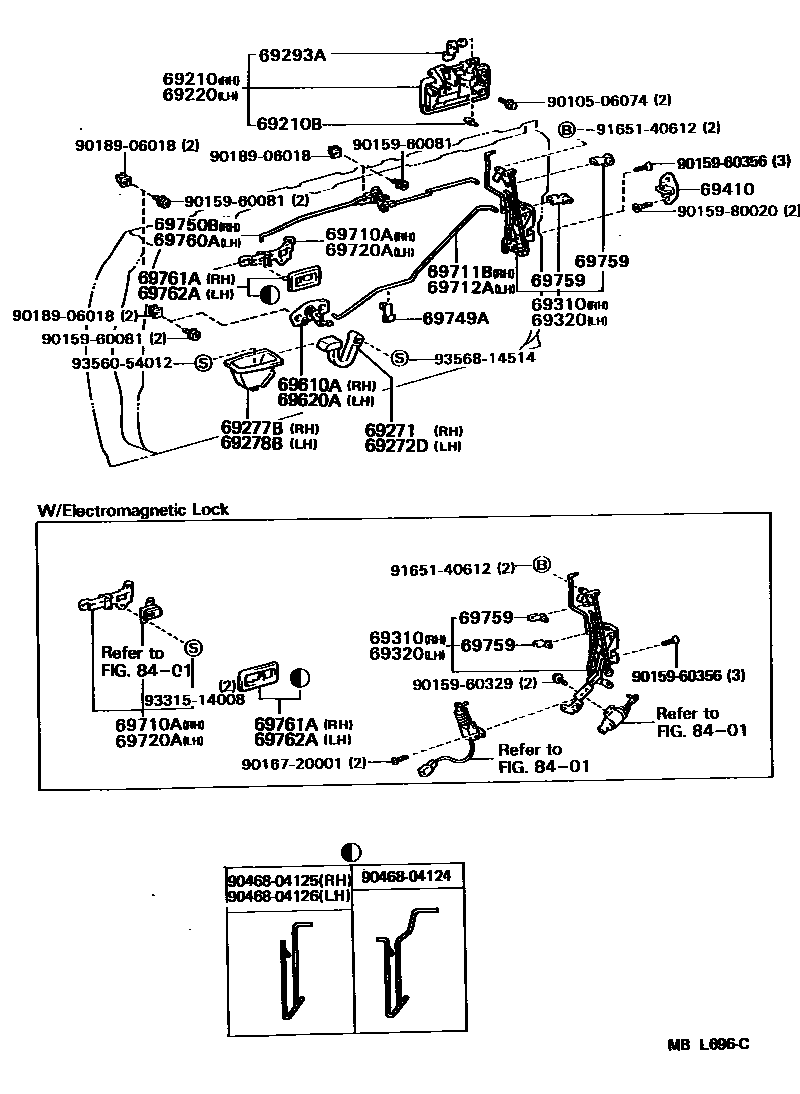

Toyota CELICA — FRONT DOOR LOCK & HANDLE
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69271HANDLE, FRONT DOOR INSIDE, RH
NEW BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69272DHANDLE, FRONT DOOR INSIDE, LH
NEW BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(ELECTROMAGNETIC LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(ELECTROMAGNETIC LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2#
NEW BLACK,TRIM2#
RED,TRIM3#
W(ELECTROMAGNETIC LOCK),RED,TRIM3#
DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
NEW BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2#
NEW BLACK,TRIM2#
W(ELECTROMAGNETIC LOCK),RED,TRIM3#
RED,TRIM3#
DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
NEW BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
OPEN LINK,RH
OPEN LINK,LH
LOCKING LINK,RH
LOCKING LINK,LH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2#
W(ELECTROMAGNETIC LOOK),RED,TRIM3#
W(ELECTROMAGNETIC LOCK),RED,TRIM3#
W(ELECTROMAGNETIC LOOK),DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2#
W(ELECTROMAGNETIC LOOK),RED,TRIM3#
W(ELECTROMAGNETIC LOCK),RED,TRIM3#
W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOOK),DEEP BLUE,TRIM8#
W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
8401SWITCH & RELAY & COMPUTER
9010506074
main90105-06074
9015960081
main90159-60081
9015960329
main90159-60329
9015960356
main90159-60356
9015980020
main90159-80020
9016720001
main90167-20001
9018906018
main90189-06018
9046804124
main90468-04124
9046804125
main90468-04125
9046804126
main90468-04126
9165140612
main91651-40612
9331514008
main93315-14008
9356054012
main93560-54012
9356814514
main93568-14514
38 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CELICA
This section contains 38 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH, HANDLE, FRONT DOOR INSIDE, RH, HANDLE, FRONT DOOR INSIDE, LH.
