Toyota CELICA — FRONT CLEARANCE LAMP

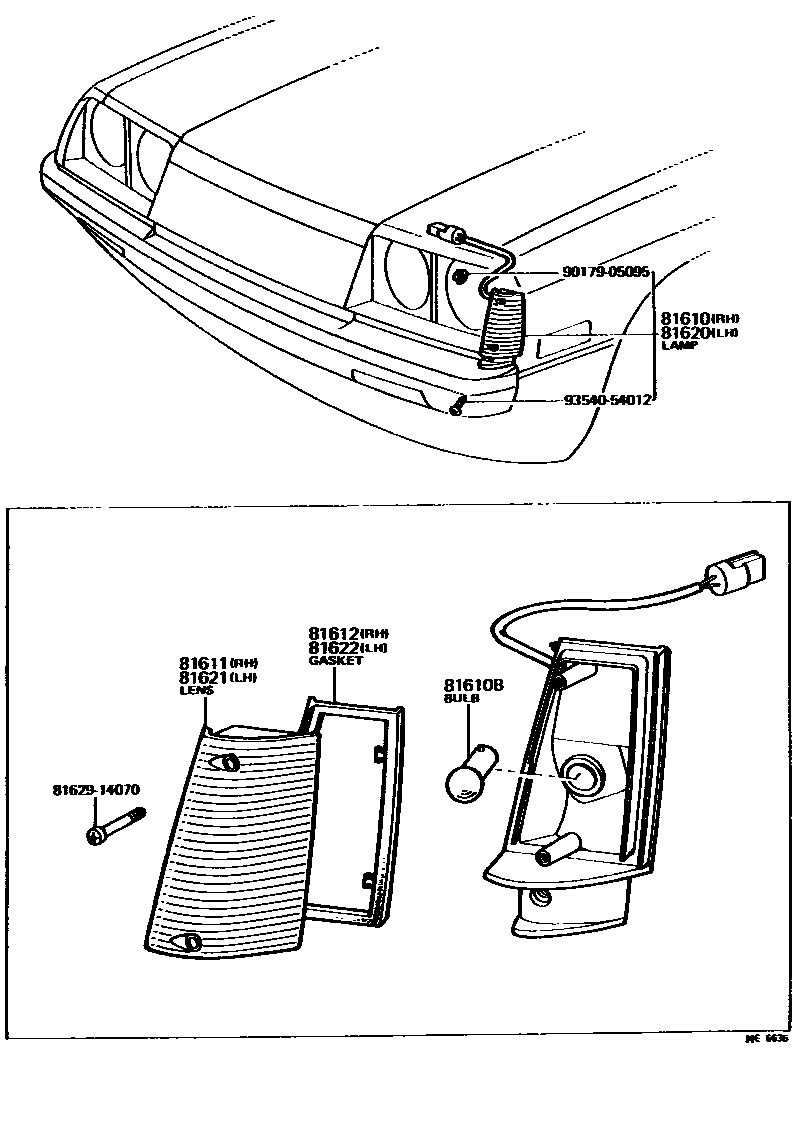

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-19135i197708-197908

main81610-19136i197908-198107

main81610-19175i197901-198008

main81610-19176i198008-198107

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12080×2i197708-198107

12V 8W,12V 8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-14110i197708-197908

main81611-14111i197908-198107

main81611-14140i197901-198107

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-14110i197708-197908

main81612-14111i197908-198107

main81612-14140i197901-198107

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-19135i197708-197908

main81620-19136i197908-198107

main81620-19175i197901-198008

main81620-19176i198008-198107

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-14110i197708-197908

main81621-14111i197908-198107

main81621-14140i197901-198107

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81612-14111i197908-198107

main81612-14140i197901-198107

main81622-14110i197708-197908

8162914070

main81629-14070

9017905095

main90179-05095

9354054012

main93540-54012

10 parts on this diagram · 3 diagrams in section

FRONT CLEARANCE LAMP for Toyota CELICA

This section contains 15 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, LAMP ASSY, PARKING & CLEARANCE, LH.
