Toyota CELICA — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080i199908-200507

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i199908-200507

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066i199908-200507

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i199908-200507

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i199908-200507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080i199908-200507

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i199908-200507

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066i199908-200507

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i199908-200507

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i199908-200507

43512DISC, FRONT

main43512-20700i199908-200008

main43512-20710i199908-200006

main43512-20711i200401-200507

main43512-20740i200208-200401

main43512-63010i200006-200208

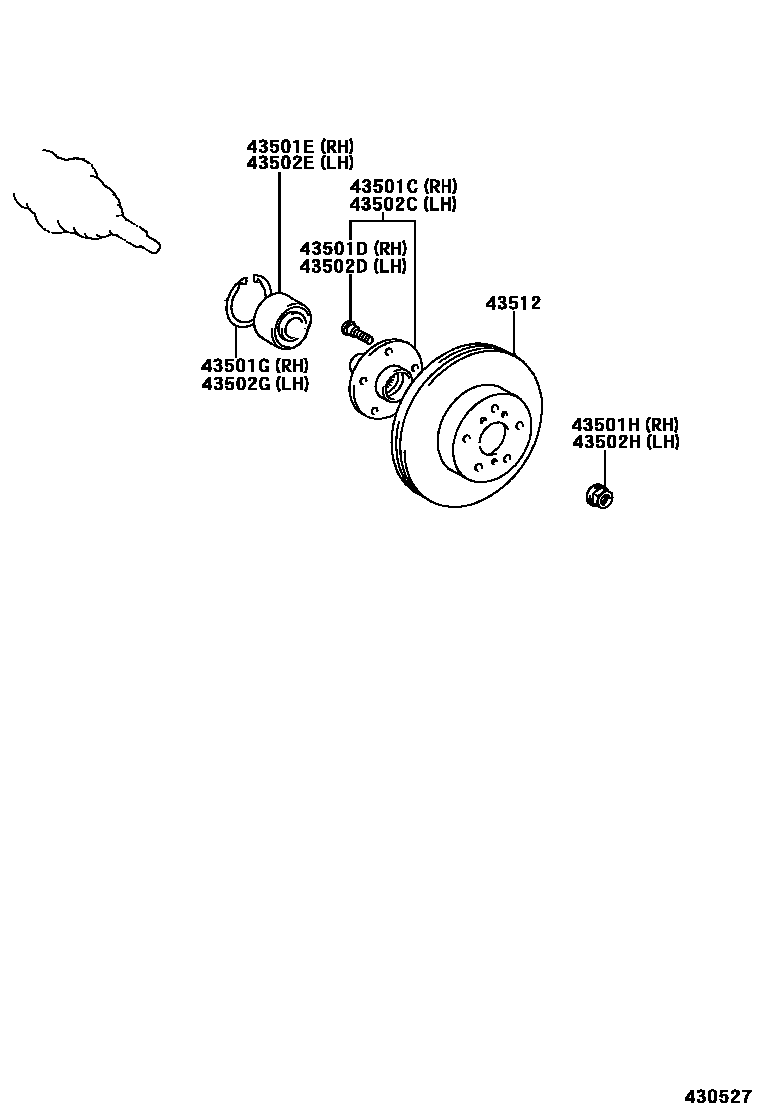

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CELICA

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELICA. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH).
