Toyota CELICA — FRONT AXLE HUB

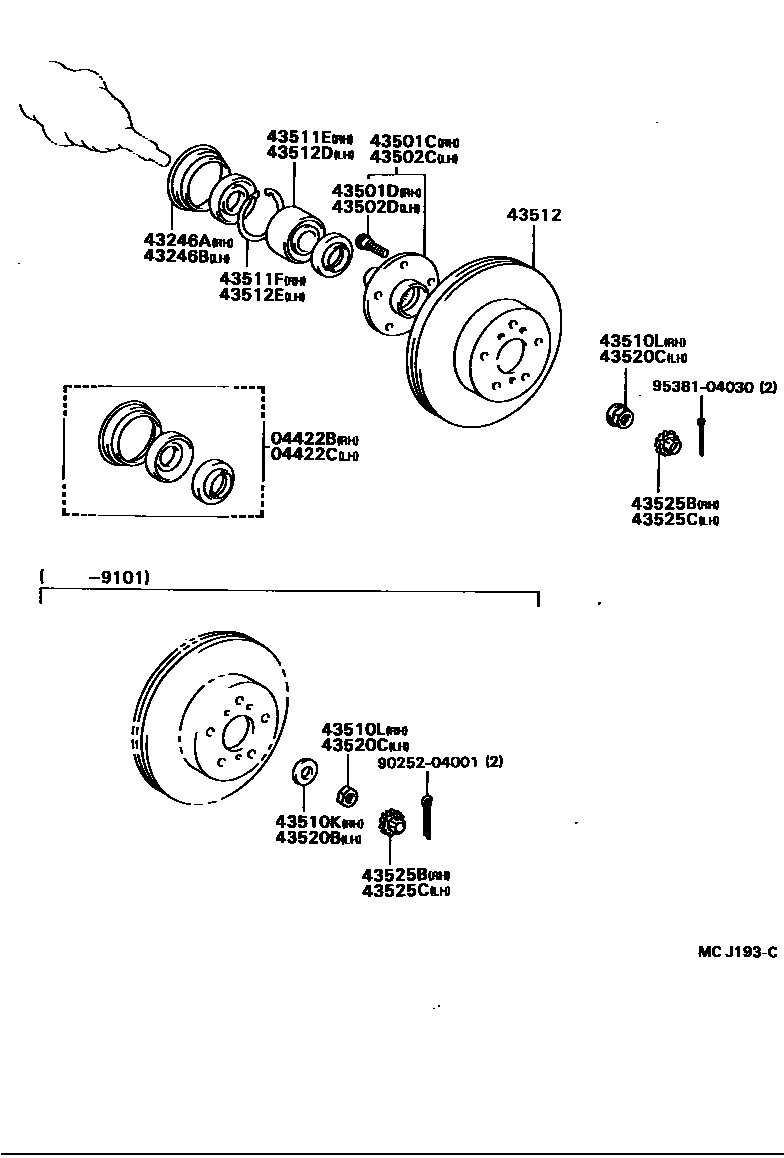

Parts diagram
04422BSEAL KIT, FRONT AXLE OIL, RH
main04422-20020i198909-199309
main04422-20060i198909-199309
W(*66)
04422CSEAL KIT,FRONT AXLE OIL, LH
main04422-20020i198909-199309
main04422-20060i198909-199309
W(*66)
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-12020i198909-199309
W(*66)
main43246-20010i198909-199309
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-12020i198909-199309
W(*66)
main43246-20010i198909-199309
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-20090i198909-199108
main43502-20100i198909-199309
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049i198909-199202
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-20090i198909-199108
main43502-20100i198909-199309
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049i198909-199108
43510KWASHER (FOR STEERING KNUCKLE RH)
main90201-20012i198909-199101
43510LNUT (FOR STEERING KNUCKLE RH)
main90170-19001i198909-199101
main90170-19002i199008-199101
main90179-22020i199101-199309
43511EBEARING (FOR FRONT AXLE HUB RH)
main90369-38003i198909-199309
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-79002i198909-199309
43512DISC, FRONT
main43512-20330i198909-199108
main43512-20360i198909-199109
main43512-20390i198910-199202
main43512-20400i199202-199309
main43512-20430i199109-199309
main43512-20440i199108-199109
43512DBEARING (FOR FRONT AXLE HUB LH)
main90369-38003i198909-199309
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-79002i198909-199309
43520BWASHER (FOR STEERING KNUCKLE LH)
main90201-20012i198909-199101
43520CNUT (FOR STEERING KNUCKLE LH)
main90170-19001i198909-199101
main90170-19002i199008-199101
main90179-22020i199101-199309
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-16010i198909-199101
main43525-20030i199101-199309
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-16010i198909-199101
main43525-20030i199101-199309
9025204001
main90252-04001
9538104030
main95381-04030

21 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CELICA

This section contains 21 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELICA. Key components include: SEAL KIT, FRONT AXLE OIL, RH, SEAL KIT,FRONT AXLE OIL, LH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
