Toyota CELICA — FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-20060i199309-199601

W(ABS)

main04422-20080i199601

W(ABS)

main04422-20110i199309

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-20060i199309-199601

W(ABS)

main04422-20080i199601

W(ABS)

main04422-20110i199309

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020i199309

W(ABS)

main43246-20010i199309

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020i199309

W(ABS)

main43246-20010i199309

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20170i199309

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070i199309

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38003i199309-199510

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i199309

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20170i199309

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070i199309

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38003i199309-199510

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i199309

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001i199709-199712

main90179-22020i199309-199712

43512DISC, FRONT

main43512-20580i199309-199712

main43512-20600i199309

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001i199709-199712

main90179-22020i199309-199712

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199309-199512

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199309

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section

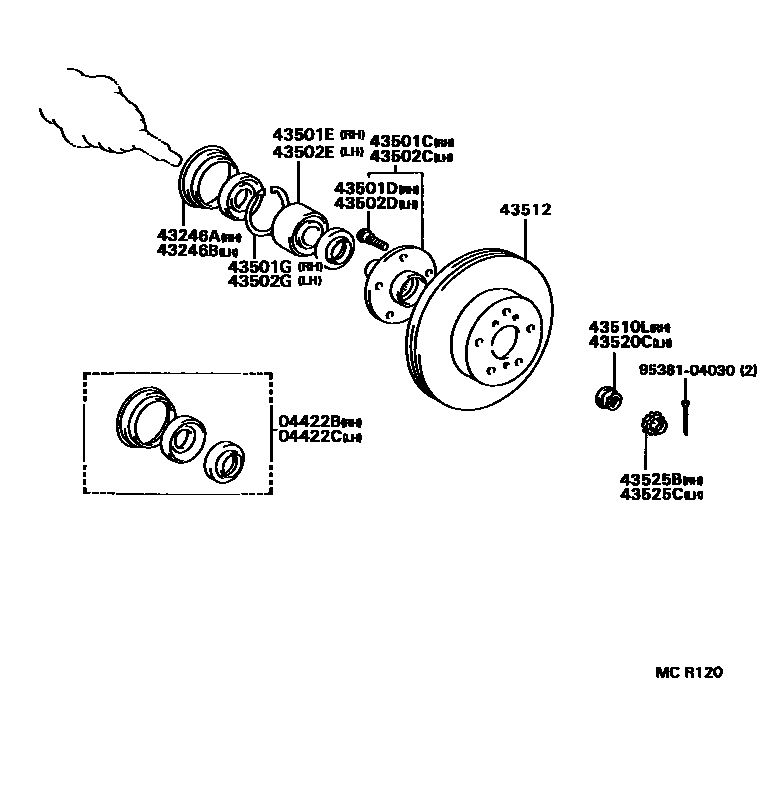

FRONT AXLE HUB for Toyota CELICA

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELICA. Key components include: SEAL KIT, FRONT AXLE OIL, RH, SEAL KIT,FRONT AXLE OIL, LH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
