Toyota CELICA — FOG LAMP

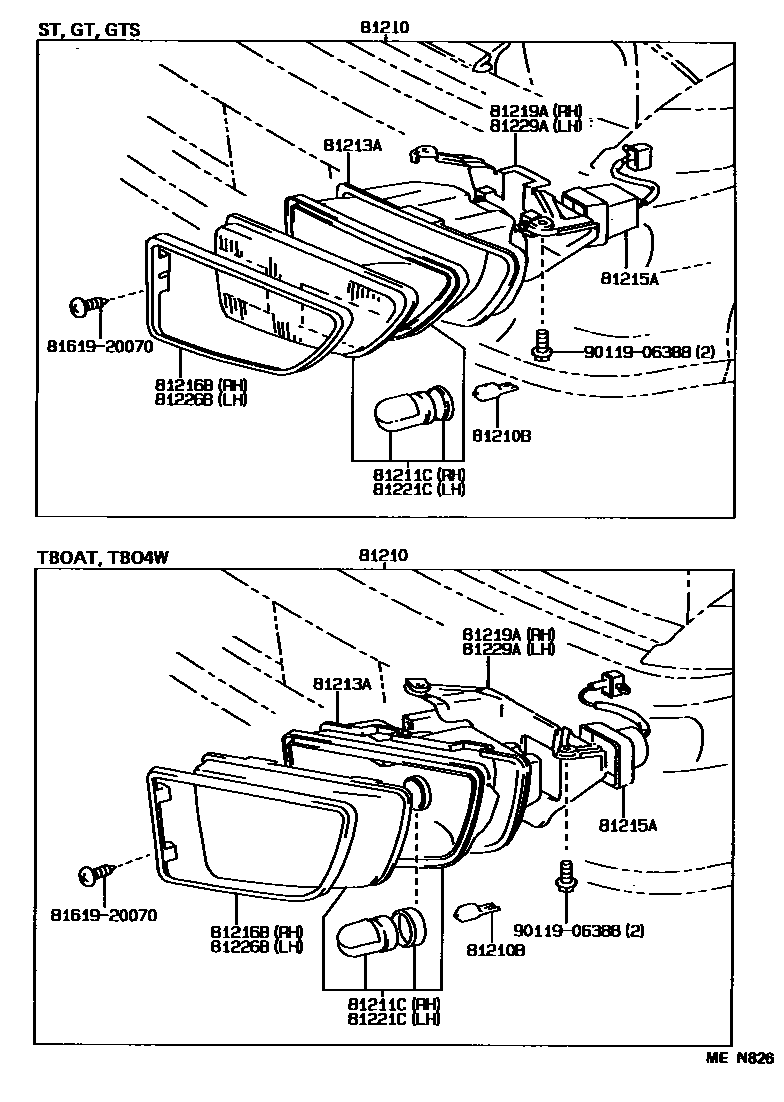

Parts diagram

81210LAMP ASSY, FOG

main81210-29185i198910-199108

RH

main81210-29195i199108-199109

RH

main81210-29225i199108-199109

RH

main81220-29135i199108-199309

LH

main81220-29145i198909-199108

LH

main81220-29175i199108-199109

LH

81210BBULB, FOG LAMP

main90981-13018×2i198909-199008

12V 55W,HALOGEN

main90981-13048×2i199108-199309

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-20150i199108-199309

main81211-20190i198909-199108

main81211-20220i199109-199309

81213ABODY, FOG LAMP

main81213-20130i198910-199108

RH

main81213-20170i198909-199108

RH

main81223-20130i199108-199309

LH

main81223-20170i199108-199109

LH

81215ASOCKET & WIRE, FOG LAMP

main81215-20120×2i199108-199109

main81215-20170×2i199108-199109

81216BRIM, FOG LAMP, RH NO.1

main81216-20130i198910-199108

main81216-20170i198909-199108

81219ABRACKET, FOG LAMP, RH

main81219-20120i199109-199309

main81219-20140i198910-199108

main81219-20180i199108-199109

81221CLAMP UNIT, FOG LAMP, LH

main81221-20150i198910-199108

main81221-20190i198909-199108

main81221-20210i199108-199109

81226BRIM, FOG LAMP, LH

main81226-20130i199108-199309

main81226-20170i199108-199109

81229ABRACKET, FOG LAMP, LH

main81229-20110i199108-199109

main81229-20140i199108-199309

main81229-20180i199108-199109

8161920070

main81619-20070

9011906388

main90119-06388

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CELICA

This section contains 14 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BODY, FOG LAMP, SOCKET & WIRE, FOG LAMP.
