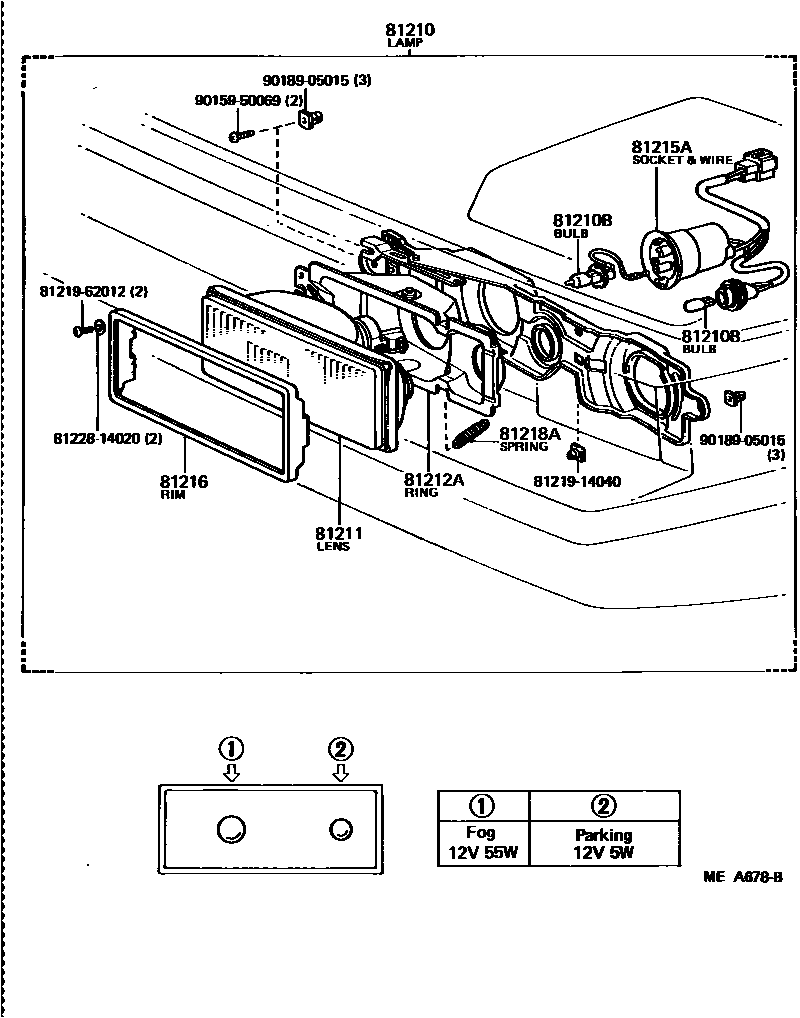

Toyota CELICA — FOG LAMP

81210LAMP ASSY, FOG

main81210-19075i198108-198308

main81210-19076i198308-198512

main81220-19045i198108-198308

main81220-19046i198308-198512

81210BBULB, FOG LAMP

main90981-13018×2i198108-198512

12V 55W,HALOGEN,12V 55W

main99132-12050×2i198108-198512

12V 5W,12V 5W

81211LENS, FOG LAMP

main81211-14050×2i198108-198512

81212ARING, FOG LAMP MOUNTING

main81212-14040i198108-198512

main81222-14020i198108-198512

81215ASOCKET & WIRE, FOG LAMP

main81215-14050×2i198108-198512

81216RIM, FOG LAMP, NO.1

main81216-14040×2i198108-198512

81218ASPRING, TENSION(FOR FOG LAMP)

main81218-14040×2i198108-198512

8121914040BOLT, FOG LAMP

main81219-14040

8121962012BOLT, FOG LAMP

main81219-62012

8122814020STOPPER, LENS

main81228-14020

9015950069

main90159-50069

9018905015

main90189-05015

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CELICA

This section contains 12 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, RING, FOG LAMP MOUNTING, SOCKET & WIRE, FOG LAMP.
