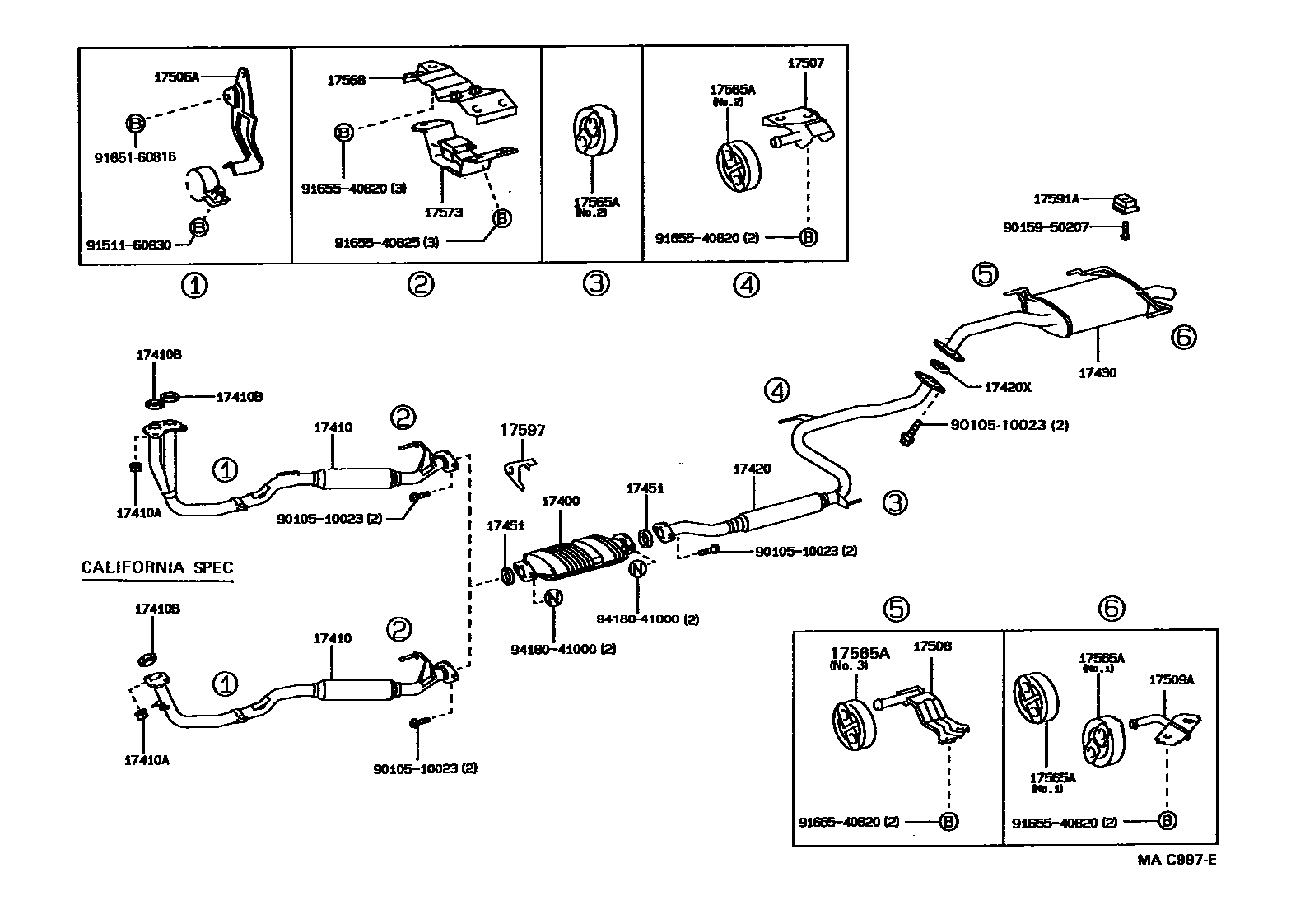

Toyota CELICA — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
CALIFORNIA SPEC
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
CALIFORNIA SPEC
17410BGASKET, EXHAUST PIPE
CALIFORNIA SPEC
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
CALIFORNIA SPEC
17420XGASKET, EXHAUST PIPE, CENTER
CALIFORNIA SPEC
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
CALIFORNIA SPEC; FR
RR
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.2 & N0.3
NO.3
NO.1
NO.2
NO.3
NO.1
17568STAY, EXHAUST PIPE SUPPORT
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17591ASTOPPER, EXHAUST PIPE SUPPORT
17597PROTECTOR, EXHAUST PIPE SPLASH
9010510023
main90105-10023
9015950207
main90159-50207
9151160830
main91511-60830
9165160816
main91651-60816
9165540820
main91655-40820
9165540825
main91655-40825
9418041000
main94180-41000
24 parts on this diagram · 3 diagrams in section
EXHAUST PIPE for Toyota CELICA
This section contains 37 genuine Toyota parts for the EXHAUST PIPE system of the Toyota CELICA. Key components include: CONVERTER ASSY, W/CATALYST, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER.
