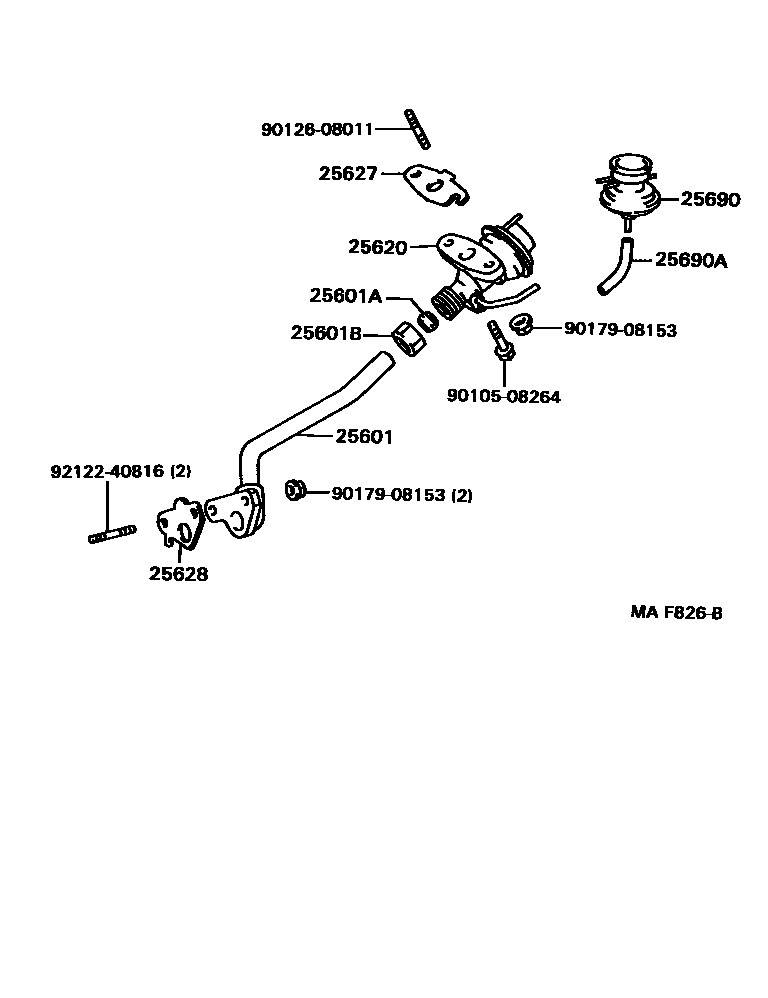

Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
CALIFORNIA SPEC,UNION SIDE; UNION SIDE
CALIFORNIA SPEC,EGR VALVE SIDE; EGR VALVE SIDE
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
9010508264
main90105-08264
9012608011
main90126-08011
9017908153
main90179-08153
9212240816
main92122-40816
12 parts on this diagram · 3 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA
This section contains 16 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
