Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM

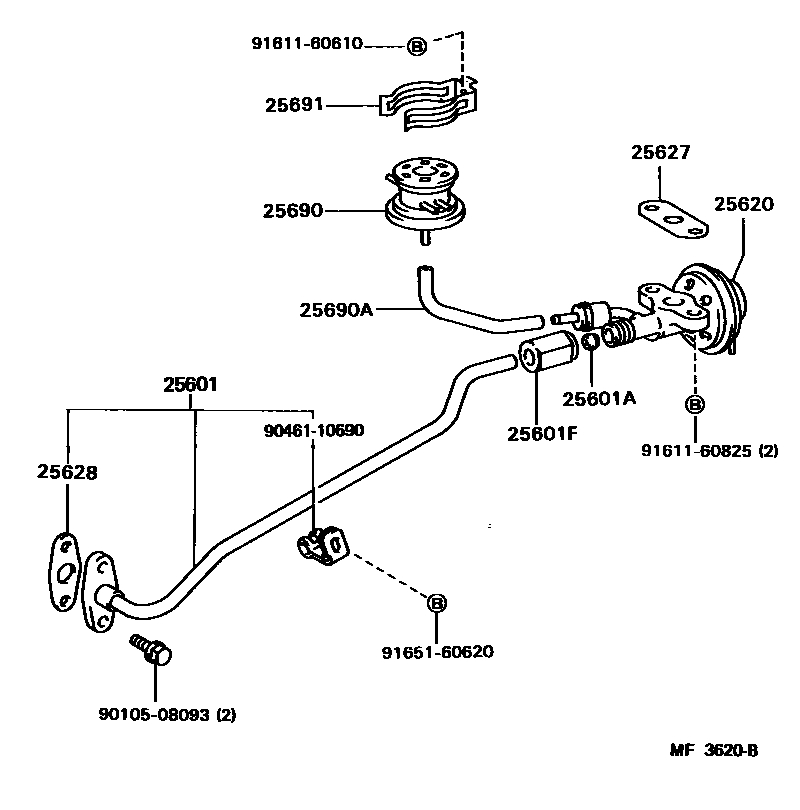

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-74040i198708-198908

main25601-88380i198710-198908

main25611-74030i198708-198908

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042×2i198708-198908

25601FUNION(FOR EGR PIPE, NO.1)

main90402-20009i198708-198908

main90402-20073×2i198708-198908

25620VALVE ASSY, EGR

main25620-74110i198708-198908

main25620-74120i198708-198908

main25620-74140i198808-198908

CALIFORNIA SPEC

main25620-74150i198808-198908

CALIFORNIA SPEC

main25620-74160i198708-198908

main25620-74170i198710-198908

25627GASKET, EGR VALVE

main25627-74010i198708-198907

main25627-74011i198907-198908

main25627-74040i198708-198908

25628GASKET, EGR INLET

main25634-74030i198708-198908

25690MODULATOR ASSY, EGR VACUUM

main25690-88380i198710-198908

main25870-74070i198708-198908

main25870-74080i198708-198908

main25870-74090i198708-198908

main25870-74100i198708-198908

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-74010i198708-198908

main25695-88380i198710-198908

main90445-11065i198708-198908

25691BRACKET, EGR VACUUM MODULATOR

main25691-74030i198708-198908

main25691-74040i198708-198908

9010508093

main90105-08093

9046110690

main90461-10690

9161160610

main91611-60610

9161160825

main91611-60825

9165160620

main91651-60620

14 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA

This section contains 21 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: VACUUM PIPING, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1).
