Toyota CELICA — ELECTRONIC FUEL INJECTION SYSTEM

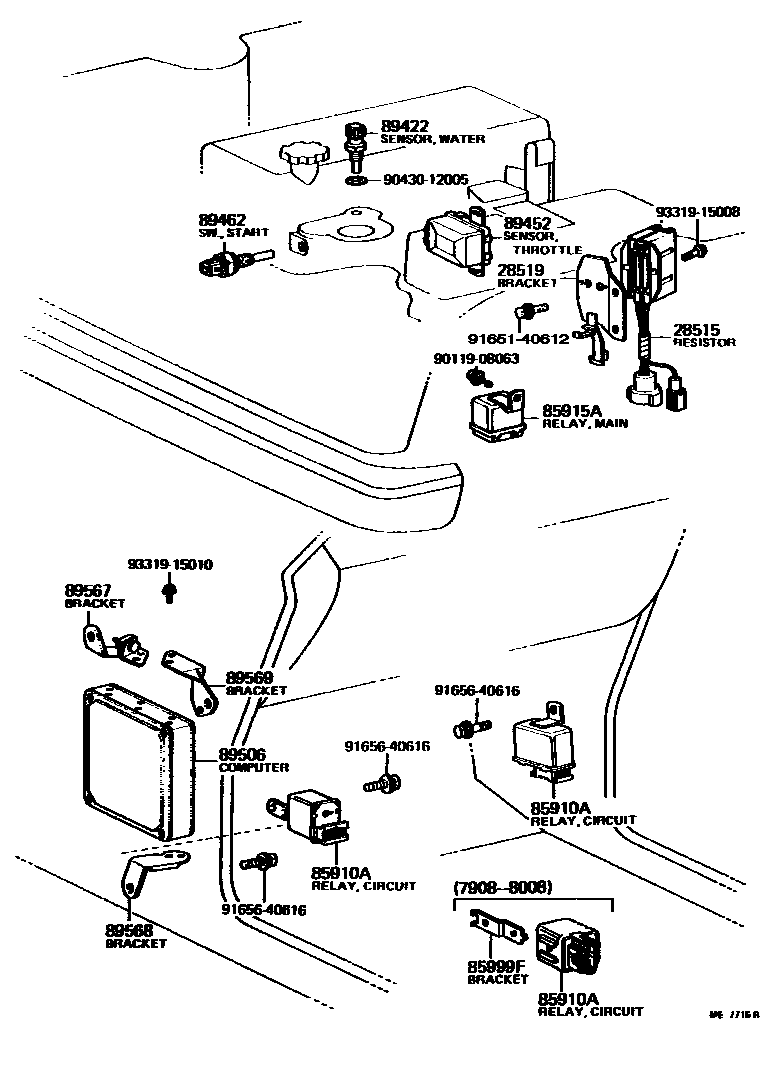

Parts diagram

28515RESISTOR, SOLENOID

main28515-41020i197901-198008

main28515-41021i198008-198107

28519BRACKET, SOLENOID RESISTOR

main28519-41010i197901-198107

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-14020i198008-198107

main85910-30040i197901-197908

main85910-30050i197908-198008

85915ARELAY, MAIN

main85915-14031i197901-197908

main85915-14040i197908-198008

main85915-14041i198008-198107

85999FBRACKET, RELAY

main85999-14050i197908-198008

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020i197901-198107

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020i197901-198107

89462SWITCH, START INJECTOR TIME

main89462-30011i197901-198107

89506COMPUTER SET, FUEL INJECTION

main89561-14040i197901-197908

main89561-14060i198008-198107

main89561-22020i197908-198008

main89561-22040i198008-198107

89567BRACKET, FUEL INJECTION COMPUTER

main89567-14050i197901-198107

89568BRACKET, FUEL INJECTION COMPUTER

main89568-14040i197901-198107

89569BRACKET, FUEL INJECTION COMPUTER

main89569-14040i197901-198107

9011908063

main90119-08063

9043012005

main90430-12005

9165140612

main91651-40612

9165640616

main91656-40616

9331915008

main93319-15008

9331915010

main93319-15010

18 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CELICA

This section contains 18 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, MAIN, BRACKET, RELAY.
