Toyota CELICA — DISTRIBUTOR

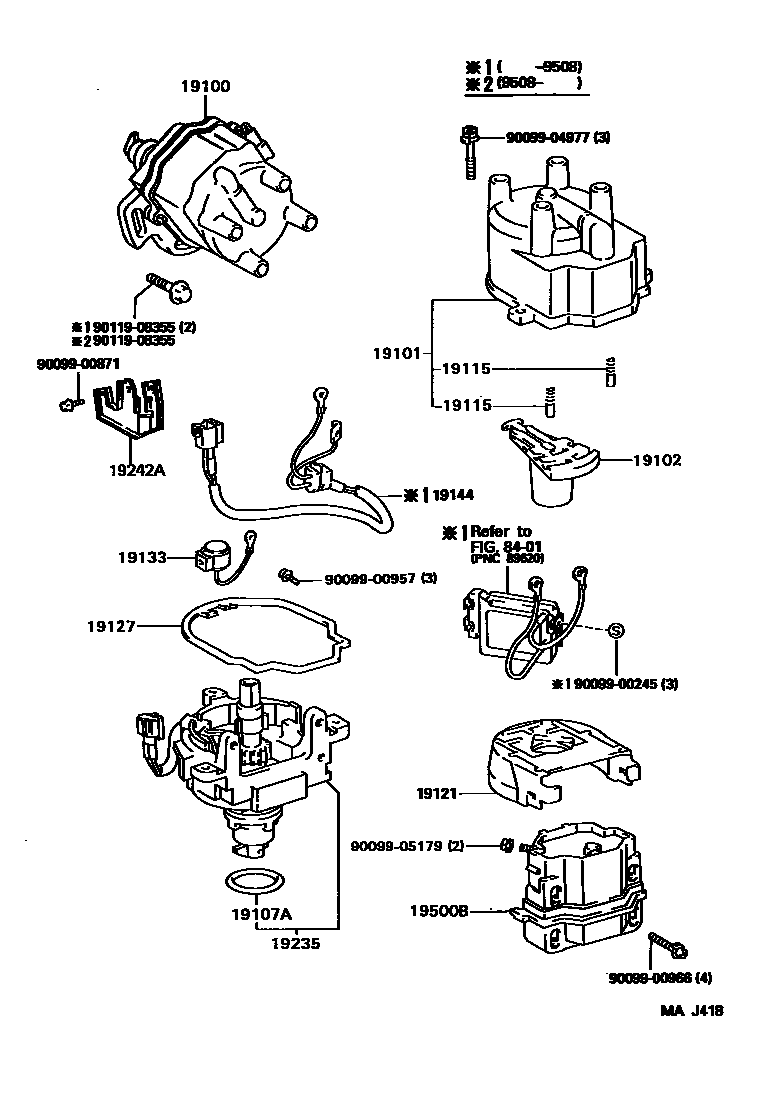

Parts diagram

19100DISTRIBUTOR ASSY

main19020-16280i199309-199508

main19050-16030i199508-199712

main19050-74040i199309-199508

main19100-74110i199309-199508

CALIFORNIA SPEC

main19100-74230i199508-199510

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199309-199712

main19101-74110i199508-199510

CALIFORNIA SPEC

main19101-74180i199309-199508

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199508-199510

main19102-16010i199309-199508

main19102-74040i199508-199510

CALIFORNIA SPEC

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i199309-199409

main90099-14127i199410-199712

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199309-199508

main19115-88280i199508-199510

CALIFORNIA SPEC

19121COVER, DUST PROOF

main19121-11080i199309-199712

19127PACKING, DUST PROOF

main19127-15120i199309-199712

main19127-74040i199508-199510

CALIFORNIA SPEC

main19127-74050i199508-199510

19133CONDENSER, DISTRIBUTOR

main19133-16240i199309-199712

19144LEAD, DISTRIBUTOR BREAKER

main19144-16020i199309-199508

main19144-74100i199508-199510

19235HOUSING, DISTRIBUTOR

main19235-16190i199508-199712

main19235-16270i199309-199508

main19235-74200i199508-199510

CALIFORNIA SPEC

main19235-74210i199508-199510

main19235-74230i199905

19242ACLAMP, CORD, NO.2

main19242-15180i199309-199508

main19242-16020i199508-199712

19500BCOIL ASSY, IGNITION

main90919-02163i199309-199508

main90919-02164i199309-199508

8401

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9011908355

main90119-08355

20 parts on this diagram · 4 diagrams in section
