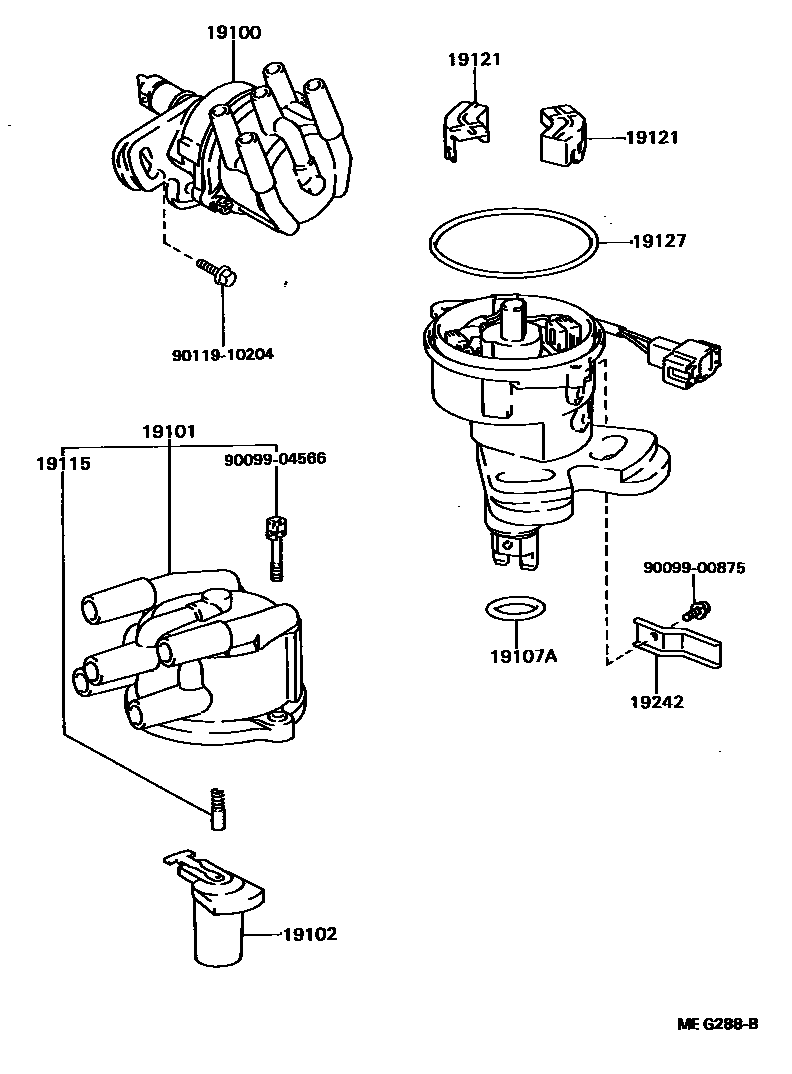

Toyota CELICA — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19040-74030i3SFE..ST162198708-198710

main19040-74031i3SFE..ST162198710-198908

sub19040-74040

main19100-88362i3SGELC..ST162198708-198908

main19100-88381i3SGTE..ST165198710-198908

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74030i3SFE..ST162198708-198908

sub19101-74031

main19101-88360i3SGELC..ST162198708-198908

main19101-88380i3SGTE..ST165198710-198908

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i3SFE..ST162198708-198908

sub19102-11370

main19102-73021i3SG#..ST16#198708-198908

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i3SG#..ST16#198708-198908

sub90099-14090

main96711-35030i3SFE..ST162198708-198908

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i3SG#..ST16#198708-198908

main19115-63010×2i3SFE..ST162198708-198908

19121COVER, DUST PROOF

main19121-16040×2i3SG#..ST16#198708-198908

main19121-63040i3SFE..ST162198708-198908

19127PACKING, DUST PROOF

main19127-15021i3SG#..ST16#198708-198908

main19127-63010i3SFE..ST162198708-198908

NO.1

main19127-63020i3SFE..ST162198708-198908

NO.2

19242CLAMP, CORD

main19242-74020i3SFE..ST162198708-198908

NO.1

main19242-74030i3SFE..ST162198708-198908

NO.2

main19242-88361i3SG#..ST16#198708-198908

9009900875

main90099-00875

9009904566

main90099-04566

9011910204

main90119-10204

11 parts on this diagram · 2 diagrams in section
