Toyota CELICA — DISTRIBUTOR
19100DISTRIBUTOR ASSY
FEDERAL SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC;USA SPEC
HIGH ALTITUDE SPEC
CANADA SPEC
CANADA SPEC
FEDERAL SPEC;CANADA OR COLD SPEC
CALIFORNIA SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
CANADA SPEC
19105GOVERNOR SUB-ASSY
19107ARING, O, DISTRIBUTOR HOUSING
19114COVER, WATER PROOF(FOR DISTRIBUTOR)
HIGH ALTITUDE & COLD SPEC
CANADA OR COLD SPEC
CANADA OR COLD SPEC
COLD SPEC
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
CALIFORNIA SPEC
HIGH ALTITUDE SPEC
FEDERAL SPEC
CANADA SPEC
USA SPEC
CALIFORNIA SPEC
CANADA OR COLD SPEC
CALIFORNIA SPEC
19242CLAMP, CORD
19250GENERATOR ASSY, SIGNAL
CANADA SPEC
CANADA SPEC
19905CLAMP SUB-ASSY, DISTRIBUTOR
9009900124
main90099-00124
9009900710
main90099-00710
9009900871
main90099-00871
9009900878
main90099-00878
9009902198
main90099-02198
9009904566
main90099-04566
9009904865
main90099-04865
9011908144
main90119-08144
9165140820
main91651-40820

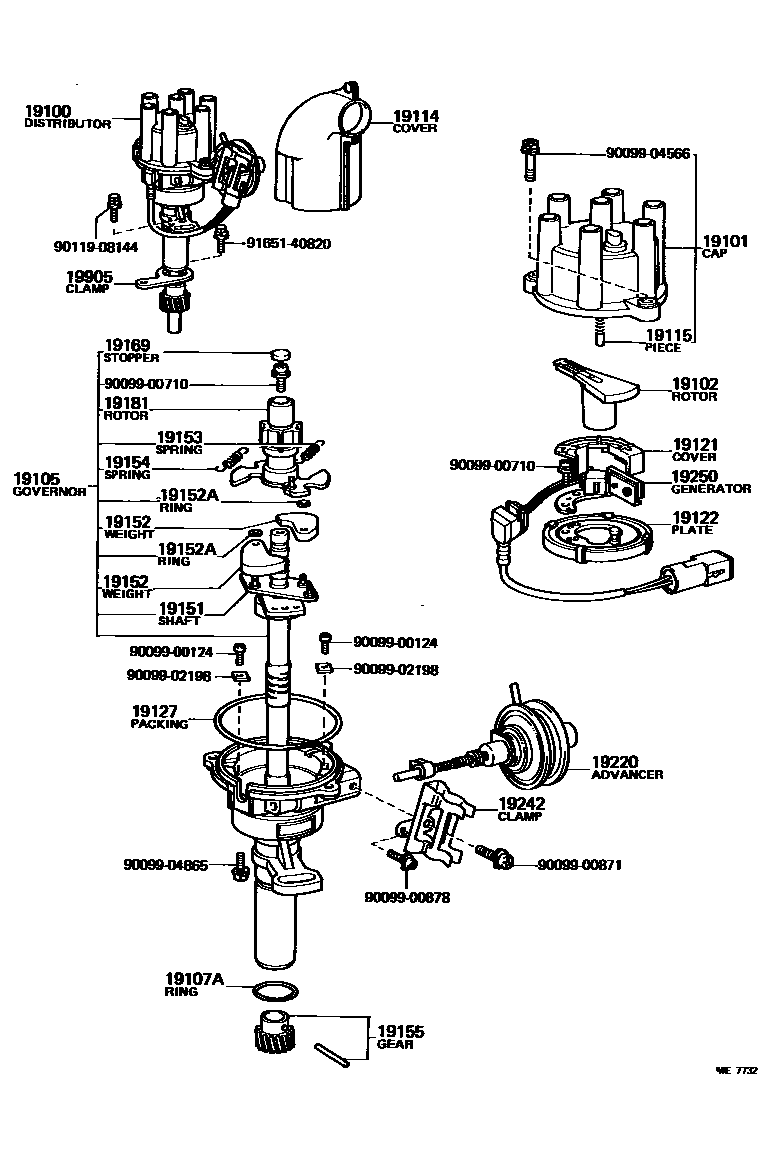

31 parts on this diagram · 4 diagrams in section
DISTRIBUTOR for Toyota CELICA
This section contains 43 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CELICA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY, WASHER(FOR GOVERNOR SHAFT THRUST).
