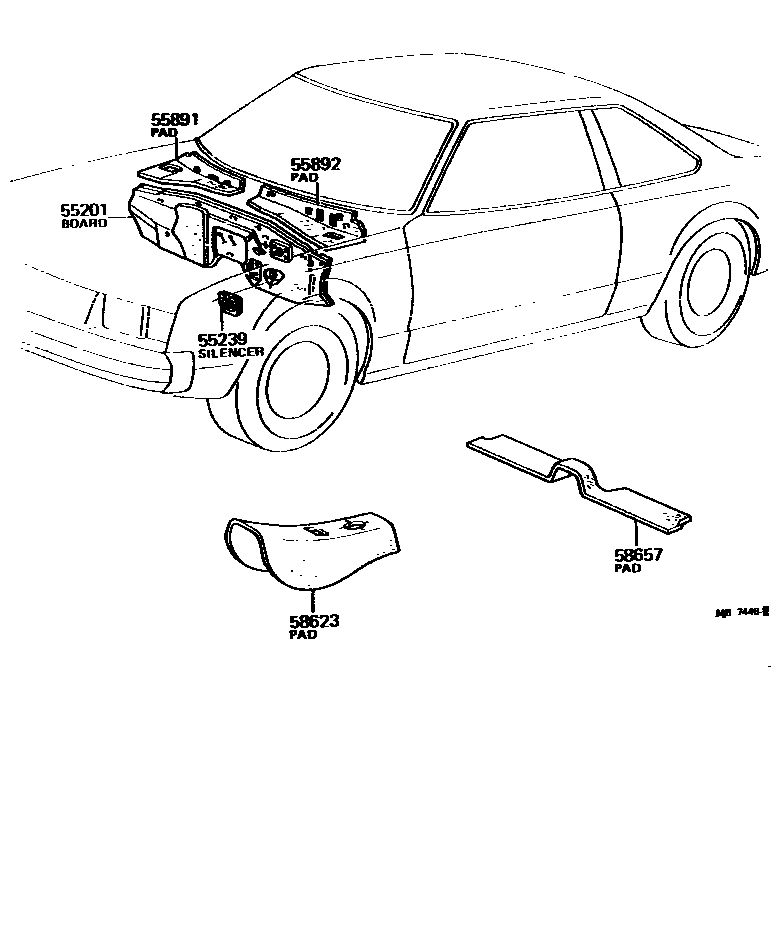

Toyota CELICA — DASH SILENCER BOARD & FLOOR SILENCER PAD

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-14070i197708-197908

main55210-14071i197908-198107

main55210-14130i197901-197908

main55210-14131i197908-198107

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14050i197708-198107

55891PAD, COWL TOP SILENCER, INNER RH

main55783-14050i197708-197908

main55783-14051i197908-198107

55892PAD, COWL TOP SILENCER, INNER LH

main55784-14050i197708-197908

main55784-14051i197908-198107

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-14030i197708-197908

W/RR HEATER DUCT

main58623-14031i197908-198107

W/RR HEATER DUCT

main58623-14040i197708-197908

W/RR HEATER DUCT

main58623-14041i197908-198107

W/RR HEATER DUCT

58657PAD, UNDER REAR SEAT SILENCER

main58657-14020i197708-198107

6 parts on this diagram · 1 diagram in section

DASH SILENCER BOARD & FLOOR SILENCER PAD for Toyota CELICA

This section contains 6 genuine Toyota parts for the DASH SILENCER BOARD & FLOOR SILENCER PAD system of the Toyota CELICA. Key components include: BOARD SUB-ASSY, DASH PANEL SILENCER, SILENCER, STEERING COLUMN HOLE COVER, PAD, COWL TOP SILENCER, INNER RH, PAD, COWL TOP SILENCER, INNER LH, PAD, FLOOR SILENCER, FRONT CENTER.
