Toyota CELICA — CRUISE CONTROL (AUTO DRIVE)

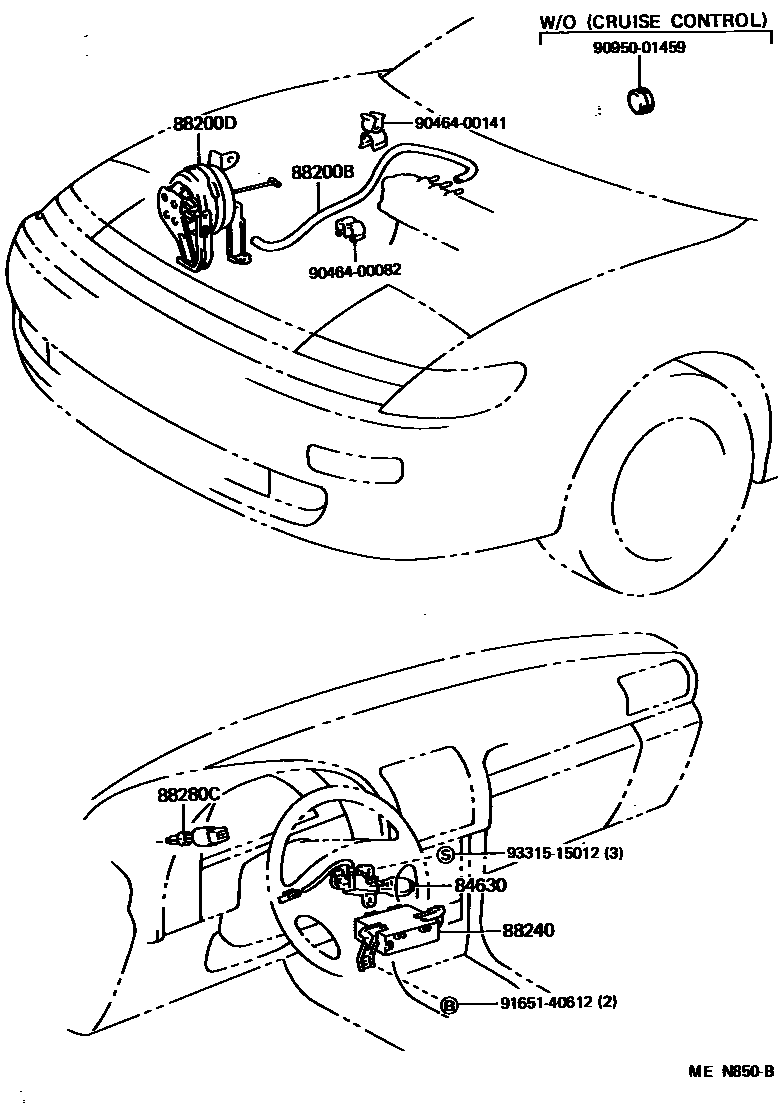

Parts diagram
84630SWITCH ASSY, CRUISE CONTROL MAIN
main84630-20080i198909-199309
main84630-20110i198909-199108
EVP 1 PACKAGE & W(CRUISE CONTROL) OR W(CRU ISE CONTROL & INTERMITTENT WIPER);EVP1 PACKAGE & W(CRUISE CONTROL & INTERMITTENT WIPER); EVP 2 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE) OR W(CRUISE CONTROL); W(CRUISE CONTROL & INTERMITTENT WIPER);EVP 1 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE);EVP 1 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE & INTERMITTENT WIPER)
88200BHOSE, CRUISE CONTROL VACUUM
main90445-08303i199108-199109
L=950
main90999-92004i198909-199108
L=950
88200DACTUATOR ASSY, CRUISE CONTROL
main88200-20070i199109-199309
W(CRUISE CONTROL = VACUUM TYPE)
main88200-20080i198909-199008
W(CRUISE CONTROL = MOTOR TYPE)
main88200-20090i198910-199008
main88200-20091i199008-199108
main88200-20110i199008-199108
W(CRUISE CONTROL = MOTOR TYPE)
main88200-20120i199108-199109
W(CRUISE CONTROL = MOTOR TYPE)
main88200-20140i199108-199309
88240COMPUTER ASSY, CRUISE CONTROL
main88240-20310i198909-199008
W(CRUISE CONTROL = VACUUM TYPE)
main88240-20311i199108-199109
main88240-20312i199109-199309
W(CRUISE CONTROL = VACUUM TYPE)
main88240-20340i198909-199008
W(CRUISE CONTROL = MOTOR TYPE)
main88240-20341i199008-199108
W(CRUISE CONTROL = MOTOR TYPE)
main88240-20342i199109-199309
W(CRUISE CONTROL = MOTOR TYPE)
main88240-20380i198910-199008
main88240-20381i199008-199108
main88240-20382i199108-199309
88280CSWITCH ASSY, CLUTCH
main88280-20010i198909-199008
9046400082
main90464-00082
9046400141
main90464-00141
9095001459
main90950-01459
9165140612
main91651-40612
9331515012
main93315-15012

10 parts on this diagram · 3 diagrams in section

CRUISE CONTROL (AUTO DRIVE) for Toyota CELICA

This section contains 23 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota CELICA. Key components include: CABLE, CRUISE CONTROL, SWITCH ASSY, CRUISE CONTROL MAIN, HOSE, CRUISE CONTROL VACUUM, ACTUATOR ASSY, CRUISE CONTROL, COVER, CRUISE CONTROL ACTUATOR.
