Toyota CELICA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.3
MARK 2,NO.3
MARK 3,NO.3
MARK 4,NO.3
MARK 5,NO.3
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1,NO.1,2,4,5
MARK 2,NO.1,2,4,5
MARK 3,NO.1,2,4,5
MARK 4,NO.1,2,4,5
MARK 5,NO.1,2,4,5
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50
O/S 0.50
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT

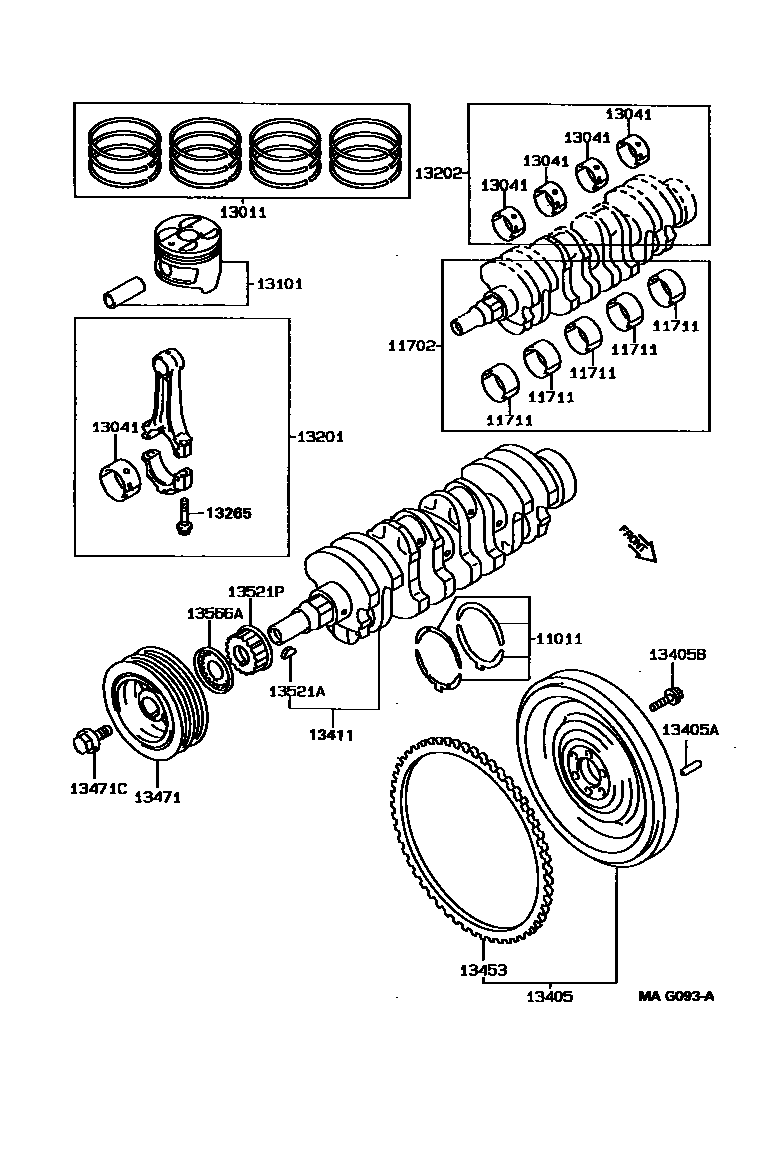

19 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota CELICA
This section contains 23 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota CELICA. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
