Toyota CELICA — COWL VENTILATOR

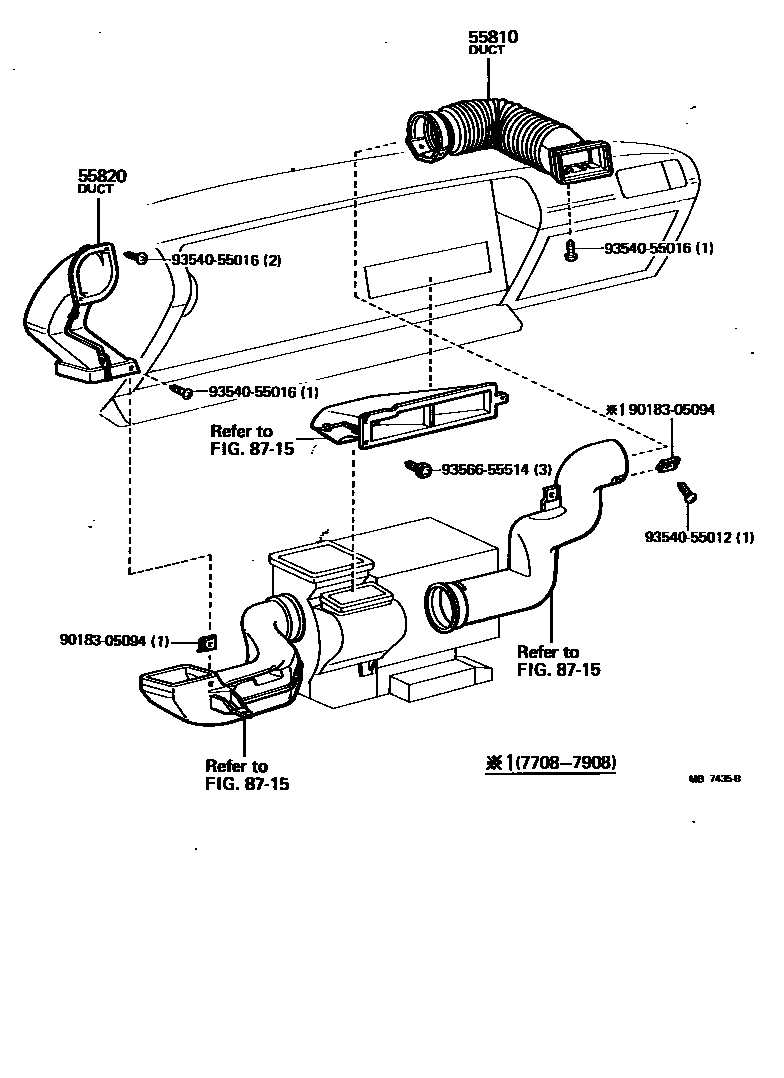

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55086-14060i197708-198008

main55086-14080i198008-198107

55820DUCT ASSY, SIDE VENTILATOR, LH

main55084-14080i197708-198107

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305094

main90183-05094

9354055012

main93540-55012

9354055016

main93540-55016

9356655514

main93566-55514

7 parts on this diagram · 1 diagram in section

COWL VENTILATOR for Toyota CELICA

This section contains 7 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CELICA. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, DUCT ASSY, SIDE VENTILATOR, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
