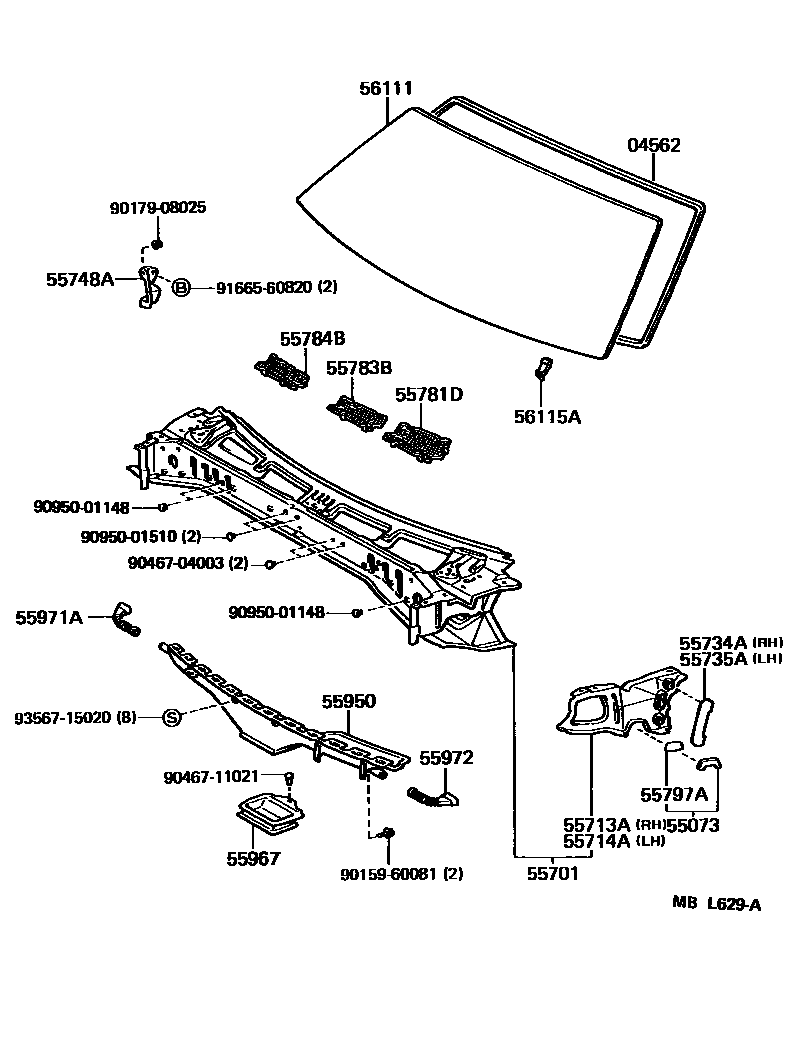

Toyota CELICA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040198708-198908

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020198708-198908

55701PANEL SUB-ASSY, COWL

main55700-20440198708-198908

55713APANEL, COWL TOP SIDE, RH

main55713-20080198708-198908

55714APANEL, COWL TOP SIDE, LH

main55714-20080198708-198908

55734APLATE, WATER GUARD, RH

main55734-20080198708-198908

55735APLATE, WATER GUARD, LH

main55734-20080198708-198908

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-20090198708-198908

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-20140198708-198908

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20100198708-198908

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20070198708-198908

55797ASEAL, COWL WATER EXTRACT

main55797-20030198708-198908

55950NOZZLE ASSY, DEFROSTER

main55950-20070198708-198908

55967NOZZLE, DEFROSTER, LOWER

main55967-20010198708-198908

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-20070198708-198908

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-20050198708-198908

56111GLASS, WINDSHIELD

main56111-20490198708-198908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20020198708-198908

9015960081

main90159-60081

9017908025

main90179-08025

9046704003

main90467-04003

9046711021

main90467-11021

9095001148

main90950-01148

9095001510

main90950-01510

9166560820

main91665-60820

9356715020

main93567-15020

26 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CELICA

This section contains 26 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELICA. Key components include: DAM KIT, WINDSHIELD GLASS, NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
