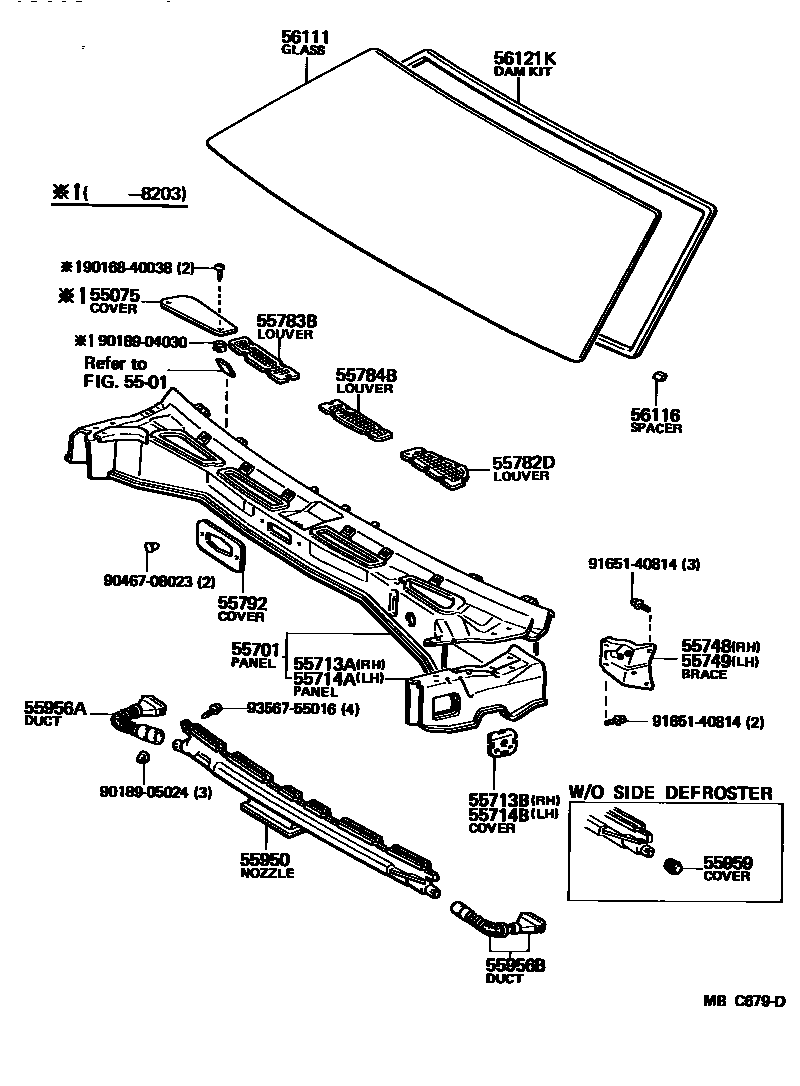

Toyota CELICA — COWL PANEL & WINDSHIELD GLASS
5501
55075COVER SUB-ASSY, HEATER AIR DUCT HOLE
55701PANEL SUB-ASSY, COWL
W/AUTO DRIVE
55713APANEL, COWL TOP SIDE, RH
55713BCOVER, COWL SIDE PANEL HOLE, RH
55714APANEL, COWL TOP SIDE, LH
55714BCOVER, COWL SIDE PANEL HOLE, LH
55748BRACE, COWL TOP TO PILLAR, RH
55749BRACE, COWL TOP TO PILLAR, LH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55792COVER, WIPER MOTOR SERVICE HOLE
55950NOZZLE ASSY, DEFROSTER
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
W/O SIDE DEFROSTER
56111GLASS, WINDSHIELD
*TL,W/SUN SHADE & ANTENA CORD
56116SPACER, WINDSHIELD GLASS
LWR,20 X 7.5 X 11.5
SIDE,20 X 8 X 9.2
56121KDAM KIT, WINDSHIELD GLASS
9016840038
main90168-40038
9018904030
main90189-04030
9018905024
main90189-05024
9046708023
main90467-08023
9165140814
main91651-40814
9356755016
main93567-55016
26 parts on this diagram · 1 diagram in section
