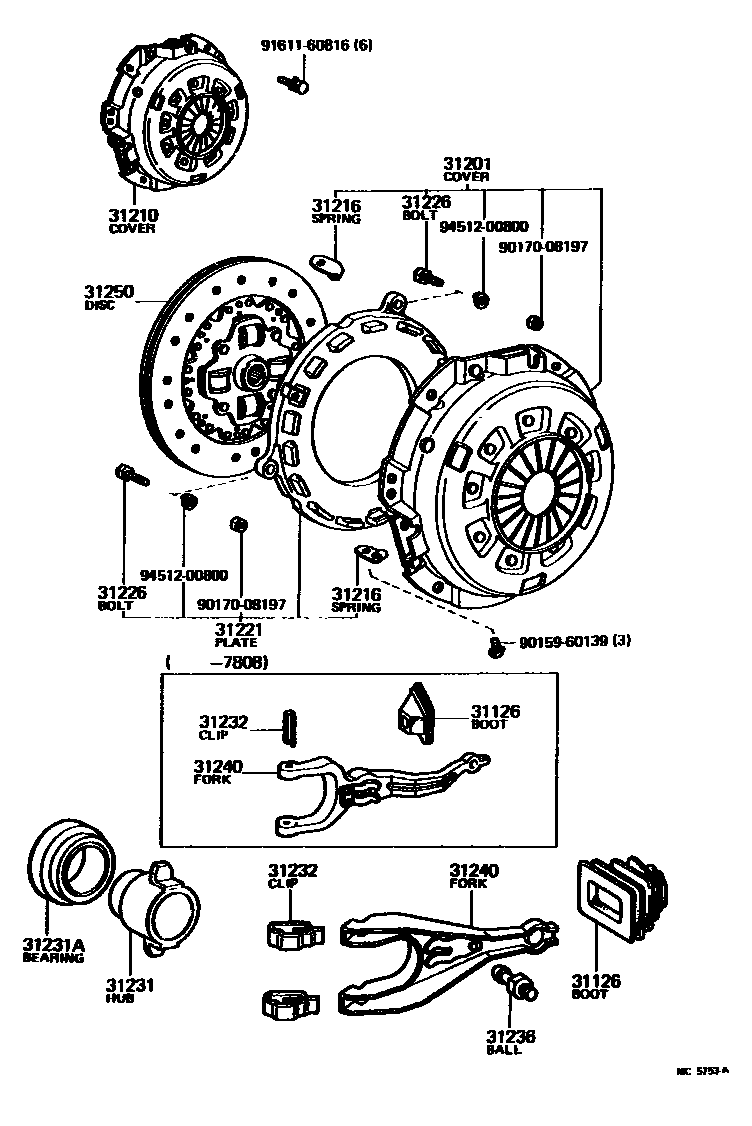

Toyota CELICA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRA42..3FC..LT197708-197808

main31126-20060iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

main31126-22040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

31201COVER SUB-ASSY, CLUTCH

main31201-29076iRA43..CP..5F..GT198008-198101

main31201-29085iRA43..CP..5F..GT198101-198107

sub31201-26010

main31201-39045iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main31201-39046iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198004

main31201-39047iMA46,RA42..(3FC,5F)..(LT,SPR)198004-198008

main31201-39107iRA43..CP..5F..GT198008-198107

sub31201-29115

31210COVER ASSY, CLUTCH

main31210-30110iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

sub31210-30111

main31210-30140iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

sub31210-30141

main31210-30171iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198004

main31210-30172iMA46,RA42..(3FC,5F)..(LT,SPR)198004-198008

sub31210-20270

main31210-30182iRA43..CP..5F..GT198008-198107

sub31210-24010

main31210-36028iRA43..CP..5F..GT198008-198101

main31210-36029iRA43..CP..5F..GT198101-198107

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

31221PLATE, CLUTCH PRESSURE

main31221-39025iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

main31221-39026iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main31221-39056iRA43..CP..5F..GT198008-198107

sub31221-36025

main31221-39115iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

sub31221-30100

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main90101-08350×3iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

31231HUB, CLUTCH RELEASE BEARING

main31231-20070iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197903

main31231-20071iMA46,RA42..(3FC,5F)..(LT,SPR)197903-198008

main31231-20090iRA43..CP..5F..GT198008-198107

main31231-22020iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197903

main31231-22021iMA46,RA42..(3FC,5F)..(LT,SPR)197903-198008

main31231-22022iRA43..CP..5F..GT198008-198011

main31231-22023iRA43..CP..5F..GT198011-198107

sub31231-26010

main31231-22030iRA42..3FC..LT197708-197808

sub31231-22031

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198002

main90363-40008iMA46,RA42..(3FC,5F)..(LT,SPR)198002-198008

main90363-40015iRA43..CP..5F..GT198008-198012

main90363-40022iRA43..CP..5F..GT198012-198107

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

main31232-30010×2iRA42..3FC..LT197708-197808

31236BALL, RELEASE FORK

main31236-20020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub31236-30060

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iRA42..3FC..LT197708-197808

sub31204-26010

main31204-20050iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198008

main31204-20070iRA43..CP..5F..GT198008-198107

sub31204-20072

main31204-22030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

31250DISC ASSY, CLUTCH

main31250-14070iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197902

main31250-14071iMA46,RA42..(3FC,5F)..(LT,SPR)197902-197910

main31250-14072iMA46,RA42..(3FC,5F)..(LT,SPR)197910-198008

sub31250-22044

main31250-30140iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

sub31250-22044

main31250-30200iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

sub31250-30330

main31250-30210iRA43..CP..5F..GT198008-198105

main31250-30211iRA43..CP..5F..GT198105-198107

sub31250-30212

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
